SitaCompact
Balcony and terrace drainage rainwater outlet
| Size DN | External diameter OD (mm) | Recess dimension (mm x mm) |
|---|---|---|
| 50 | 50 | 153 mm x 250 mm |

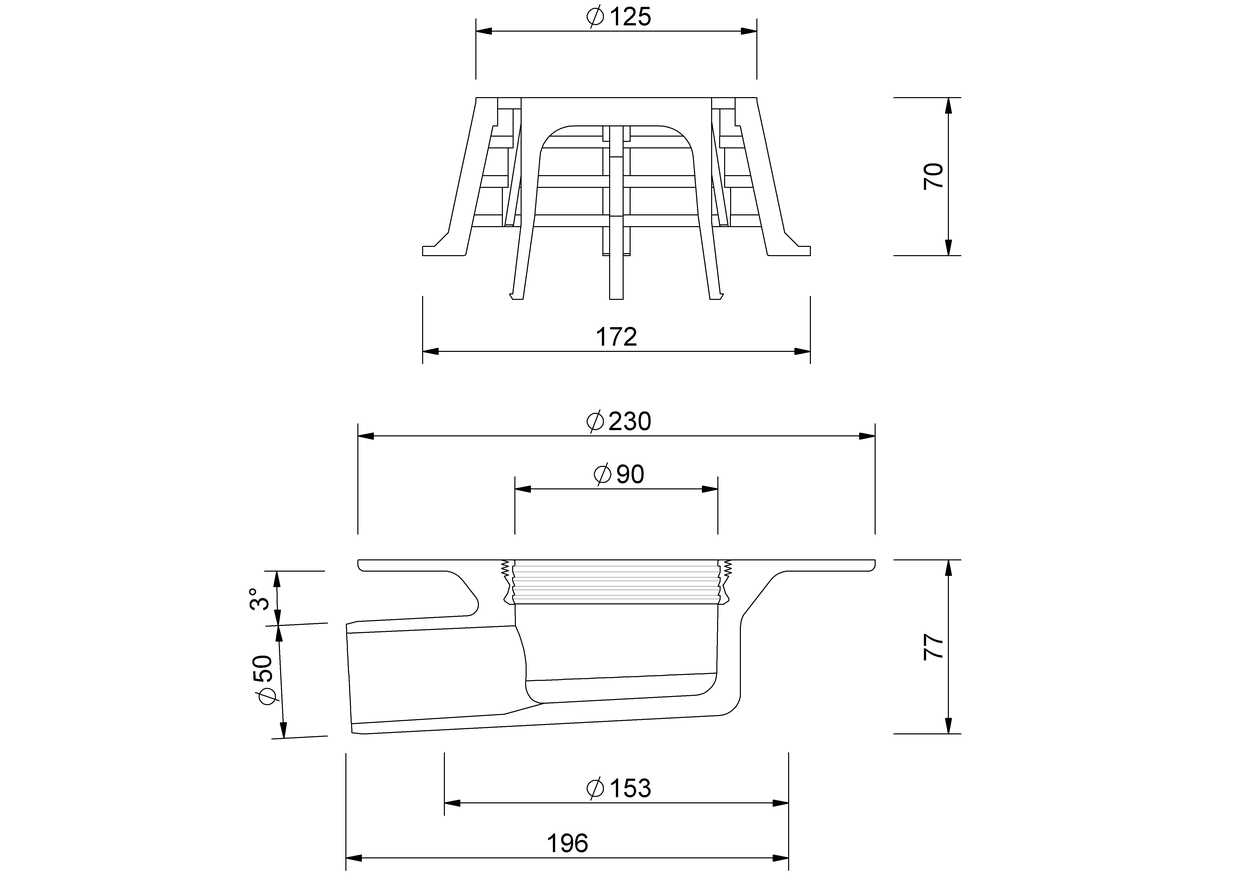

SitaCompact Fluid angled, made of polyurethane, thermally insulated, to DIN EN 1253-2, for liquid applied waterproofing, in size DN 50. For direct connection to pipes with plug-in coupler, for conventional drainage, supply and install to professional standards.
|
Back-up Heigh (mm) | ||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Size DN | 5 | 10 | 15 | 20 | 25 | 30 | 35 | 40 | 45 | 50 | 55 | 60 | 65 | 70 | 75 | 80 | 85 | 90 | 95 | 100 |
| 50 | 0.4 | 0.8 | 1.1 | 1.7 | 2.3 | 3.1 | 3.9 | 4.7 | 5.4 | 6 | 6.5 | 6.6 | 6.7 | 6.7 | 6.7 | 6.7 | 6.7 | 6.7 | 6.7 | 6.7 |
| SitaCompact | Article no. | |||
|---|---|---|---|---|
Fluid angled DN 50 | ||||
| DN 50 | Adhesive flange | 191290 | Show product |
