SitaDrain®
Feet
Attributes
- Infinitely adjustable height between 70-110 mm, 110-145 mm, 145-180 mm

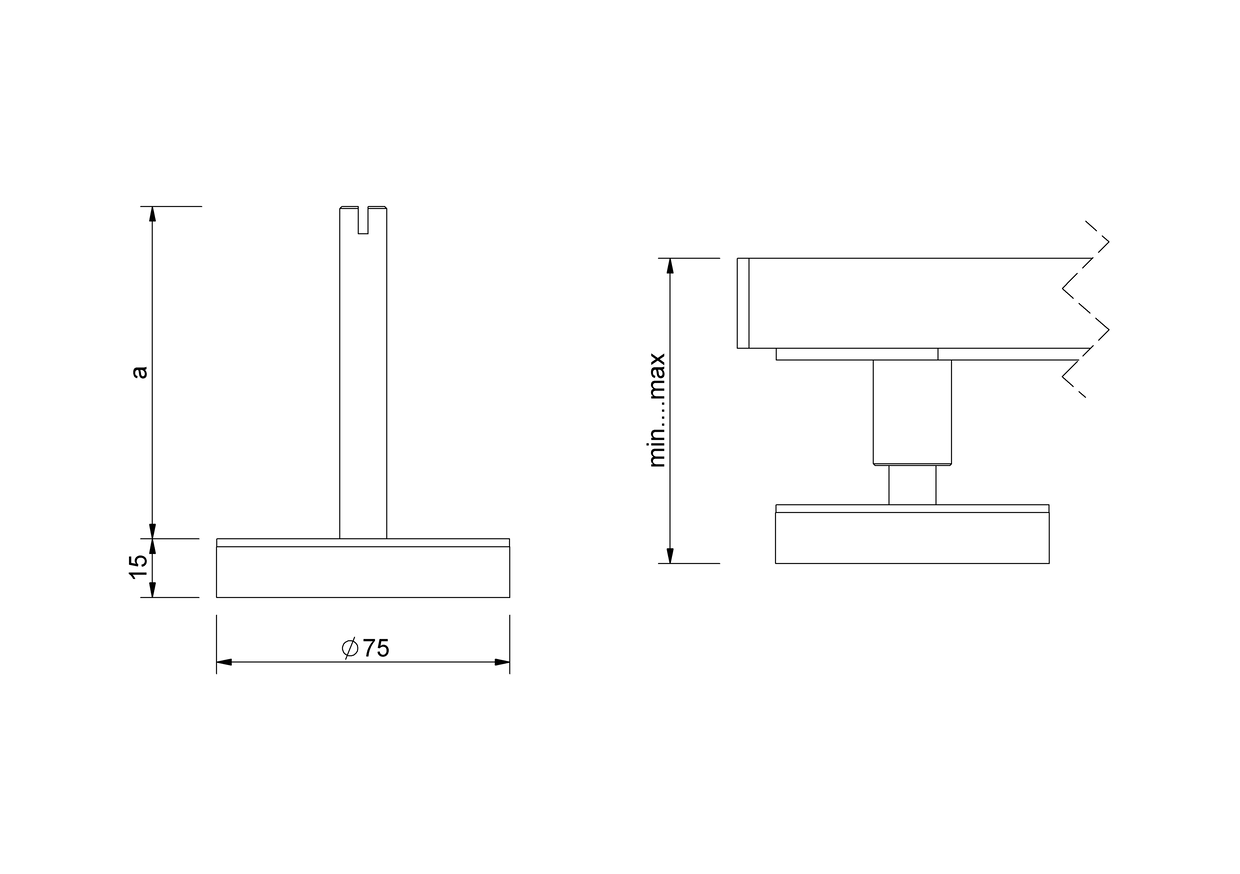

Technical drawing
| a (mm) | Height adjustment min (mm) | Height setting, max (mm) |
|---|---|---|
| 85 | 110 | 145 |
| 120 | 145 | 180 |
| 47 | 70 | 110 |
| a (mm) | Height adjustment min (mm) | Height setting, max (mm) |
|---|---|---|
| 85 | 110 | 145 |
| 120 | 145 | 180 |
| 47 | 70 | 110 |
SitaDrain® feet, made of galvanized steel, for continuous height adjustment of SitaDrain® drainage grates, with M12 grub screw and milled groove for height adjustment from above with a screwdriver, with a rubber support surface made of EPDM for load distribution, supply and install to professional standards.
| SitaDrain® | Article no. | |||
|---|---|---|---|---|
Feet Hot-dip galvanized | ||||
| 70-110 mm | SitaDrain Klassik, SitaDrain Terra | E220042 | Show product | |
| 110-145 mm | SitaDrain Klassik, SitaDrain Terra | E220085 | Show product | |
| 145-180 mm | SitaDrain Klassik, SitaDrain Terra | E220121 | Show product |
