SitaGreen
for intensive greenery
Attributes
- Not sensitive to the weather (UV/IR radiation, rain/snow, temperature, ozone, etc.)
- Impact and shock resistant
- Durable
- Can be individually shortened

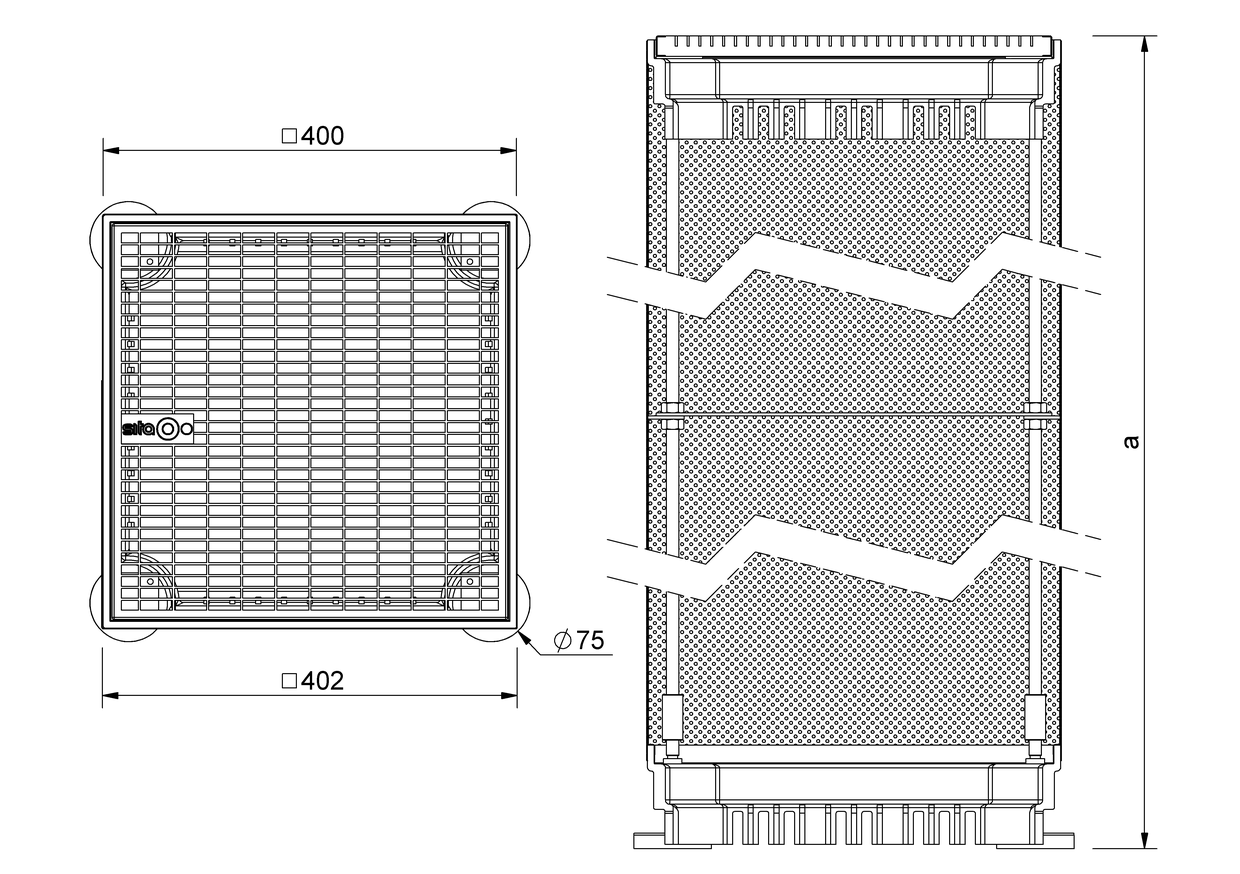

Technical drawing
| a (mm) |
|---|
| 1100 |
| 600 |
Performance text
Installation Examples
MultiCAD und BIM-Daten
Downloads
PDF SitaStandard_senkrecht_mit_SitaGreen_Gruendachschacht_fuer_die_Hauptentwaesserung_im_Umkehrdach.pdf
PDF SitaIndra_mit_SitaGreen_Gruendachschacht_für_die_Hauptentwaesserung_im_Umkehrdach.pdf
Article selection
SitaGreen for intensive greenery, made of polyurethane, with hot-dip galvanized end grate (mesh size 9 mm x 32 mm) and perforated aluminium frame, for a height adjustment up to 600 mm, can be shortened on site to 230 mm, special heights up to max. 1,100 mm available, supply and install to professional standards.
SitaStandard main drainage in a non-ventilated roof structure with greenery
1 SitaStandard insulating body
2 SitaStandard vertical
SitaStandard extension unit, consisting of:
3.1 Sealing ring
3.2 Base body
SitaGreen green roof shaft consisting of:
4.1 Inspection grate
4.2 Base body
4.3 Height-adjustable rubber feet
5 SitaStandard insulating body for extension unit
2 SitaStandard vertical
SitaStandard extension unit, consisting of:
3.1 Sealing ring
3.2 Base body
SitaGreen green roof shaft consisting of:
4.1 Inspection grate
4.2 Base body
4.3 Height-adjustable rubber feet
5 SitaStandard insulating body for extension unit
Non-ventilated roof structure with greenery according to the general rules of engineering with:
- roof greenery according to system provider
- drainage mat
- building protection mat
- Sealing
- Heat insulation
- Vapour barrier
- Substructure
SitaStandard vertical with SitaGreen green roof shaft for main drainage in an inverted roof
1 SitaStandard insulating body
2 SitaStandard vertical
3 SitaStandard extension unit without sealing ring
SitaGreen green roof shaft consisting of:
4.1 Inspection grate
4.2 Base body
4.3 Height-adjustable rubber feet
2 SitaStandard vertical
3 SitaStandard extension unit without sealing ring
SitaGreen green roof shaft consisting of:
4.1 Inspection grate
4.2 Base body
4.3 Height-adjustable rubber feet
Inverted roof structure to the general rules of engineering with:
- Roof greenery according to system supplier
- Filter fabric
- Drainage mat
- Protective mat
- XPS thermal insulation
- Waterproof membrane
- Substructure
SitaIndra with SitaGreen green roof shaft for main drainage in an inverted roof
1 SitaPipe Edelstahl pipe
2 SitaPipe Edelstahl pipe clamp
3 SitaPipe Edelstahl safety clamp
4 SitaPipe Edelstahl bend 87.5°
5 SitaAttika cladding cover plate
6 SitaMore sealing sleeve
SitaIndra without dome grate consisting of:
7.1 Insulating body
7.2 Pipe
7.3 Safety clamp
7.4 Base body with connection sleeve of choice
8 SitaStandard extension unit with connection sleeve of choice
SitaGreen green roof shaft consisting of:
9.1 Base body
9.2 Mesh cover
9.3 Height-adjustable rubber feet
2 SitaPipe Edelstahl pipe clamp
3 SitaPipe Edelstahl safety clamp
4 SitaPipe Edelstahl bend 87.5°
5 SitaAttika cladding cover plate
6 SitaMore sealing sleeve
SitaIndra without dome grate consisting of:
7.1 Insulating body
7.2 Pipe
7.3 Safety clamp
7.4 Base body with connection sleeve of choice
8 SitaStandard extension unit with connection sleeve of choice
SitaGreen green roof shaft consisting of:
9.1 Base body
9.2 Mesh cover
9.3 Height-adjustable rubber feet
Inverted roof to the general rules of engineering consisting of:
- Roof greenery according to system supply
- Filter fabric
- Drainage
- Water-draining separating layer
- XPS thermal insulation
- Waterproofing
- Substructure
In order for the external content to be
displayed at this location, you must accept
the cookies of the category
"Preferences".
You can adjust the cookie settings here.
You can adjust the cookie settings here.
Installation Examples
PDF SitaStandard_Hauptentwaesserung_im_nicht_beluefteten_Dachaufbau_mit_Begruenung.pdfPDF SitaStandard_senkrecht_mit_SitaGreen_Gruendachschacht_fuer_die_Hauptentwaesserung_im_Umkehrdach.pdf
PDF SitaIndra_mit_SitaGreen_Gruendachschacht_für_die_Hauptentwaesserung_im_Umkehrdach.pdf
| SitaGreen | Article no. | ||
|---|---|---|---|
for intensive greenery | |||
| 600 mm | 232040 | Show product | |
| 1100 mm | 239999 | Show product |
+
