SitaRetention
Retaining element

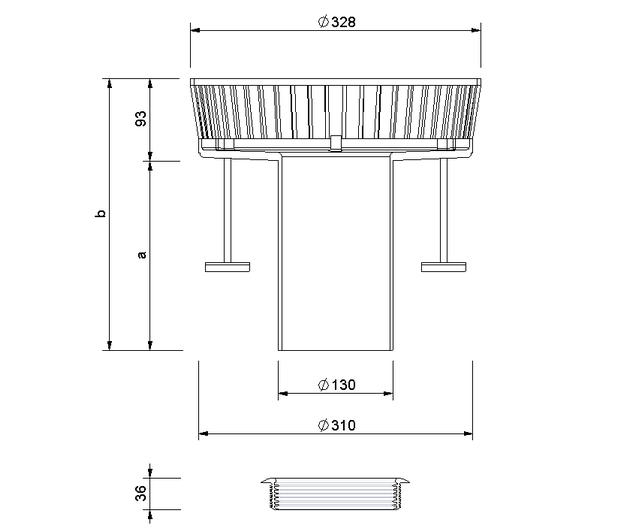

Damming height from-to (mm) | a (mm) | b (mm) |
---|---|---|
25 - 105 | 114 | 207 |
105 - 150 | 214 | 307 |
150 - 200 | 214 | 307 |
SitaRetention
Retaining element
Damming height from-to (mm) | a (mm) | b (mm) |
---|---|---|
25 - 105 | 114 | 207 |
105 - 150 | 214 | 307 |
150 - 200 | 214 | 307 |

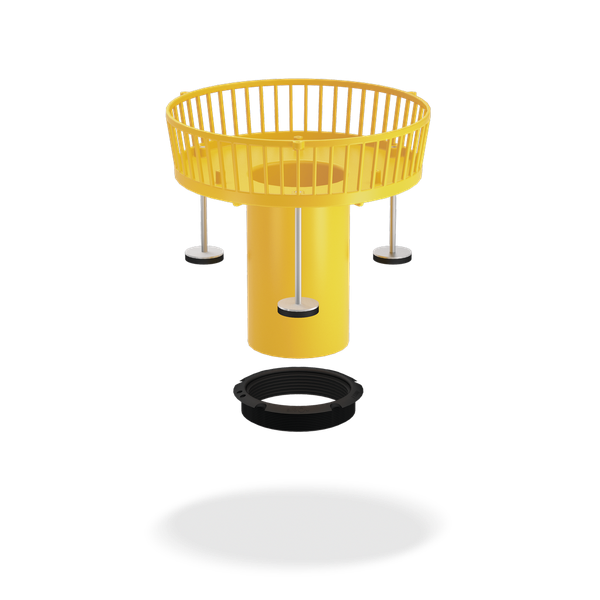

SitaRetention retaining element for SitaTrendy and SitaSani®, made of polyamide, according to DIN EN 1253-2, for SitaTrendy, SitaTrendy screw-on flange, SitaSani® 63, SitaSani® 90, SitaSani® 105 and SitaSani® 165 for emergency drainage, adjustable height of the inlet edge of 25 mm – 105 mm, 135 mm – 150 mm or 150 mm – 200 mm, with multi-lip angled sealing ring to seal the retaining element against the roof outlet or extension unit. With three infinitely height-adjustable rubber-metal buffers, installation area per foot: 19.6 cm², with galvanised threaded rod M8 x 90 mm, M8 x 140 mm or M8 x 190, housing with 51 surrounding lugs, in yellow signal colour. Retaining heights are infinitely adjustable, with large inlet pot to increase discharge capacity, supply and install to professional standards.
SitaRetention | Article no. | |||
---|---|---|---|---|
Retaining element for SitaTrendy/SitaSani | ||||
SitaTrendy, SitaSani® | 25 - 105 | 159175 | Show product | |
SitaTrendy, SitaSani® | 105 - 150 | 159176 | Show product | |
SitaTrendy, SitaSani® | 150 - 200 | 159177 | Show product |
