SitaRetention
roof shaft
- Products

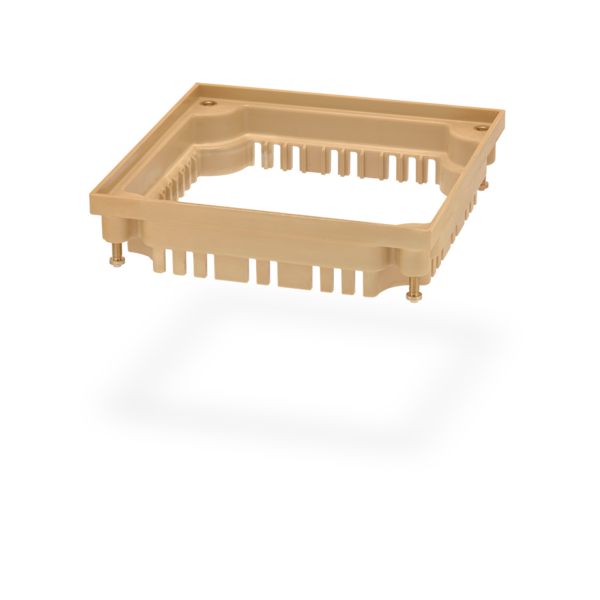

SitaRetention
roof shaft
Attributes
- Not sensitive to the weather (UV/IR radiation, rain/snow, temperature, ozone, etc.)
- Impact and shock resistant
- Durable

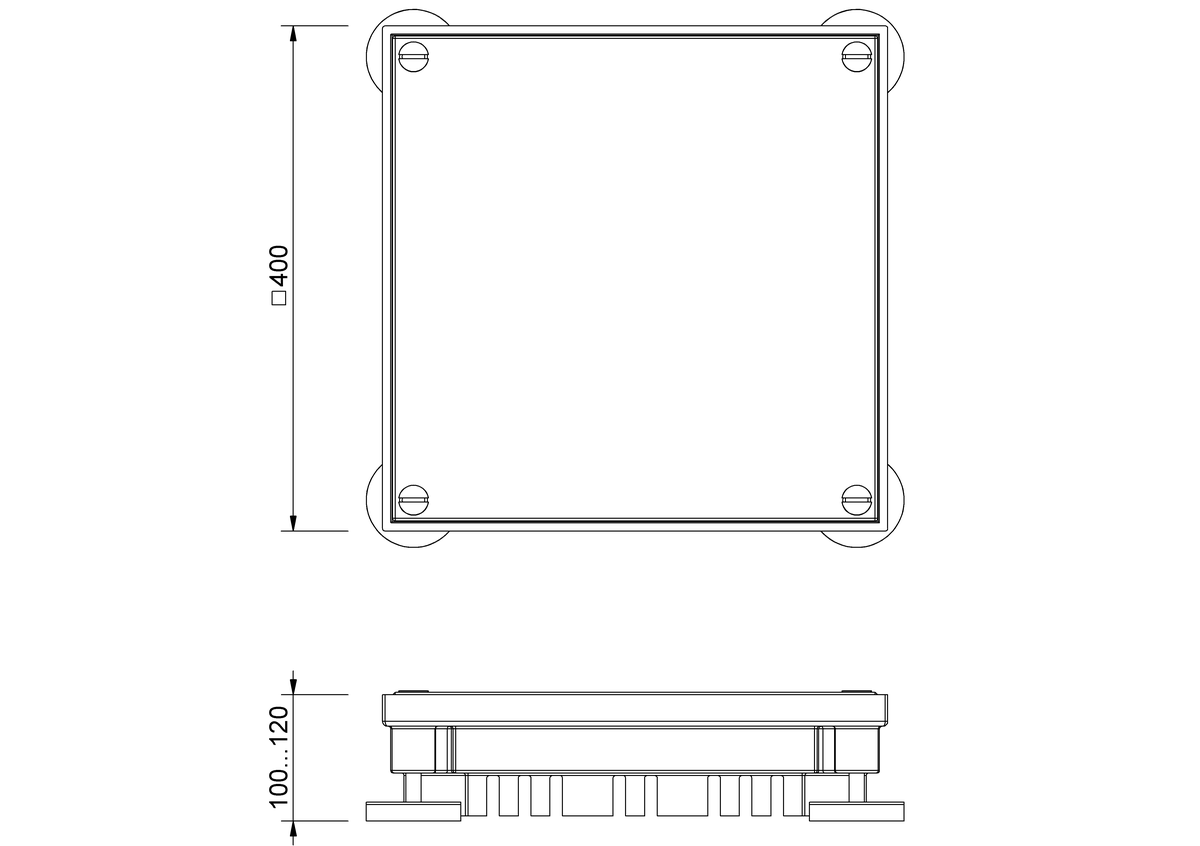

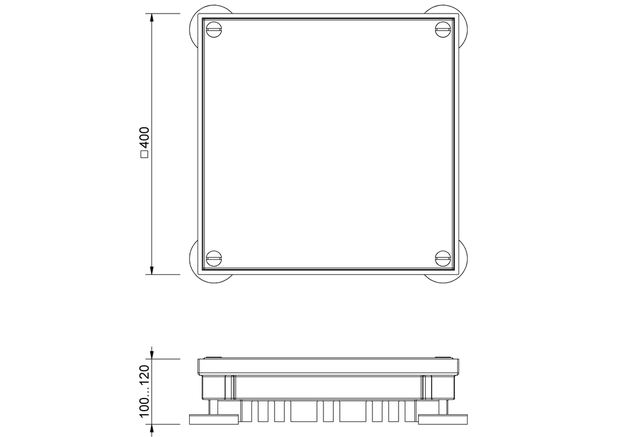

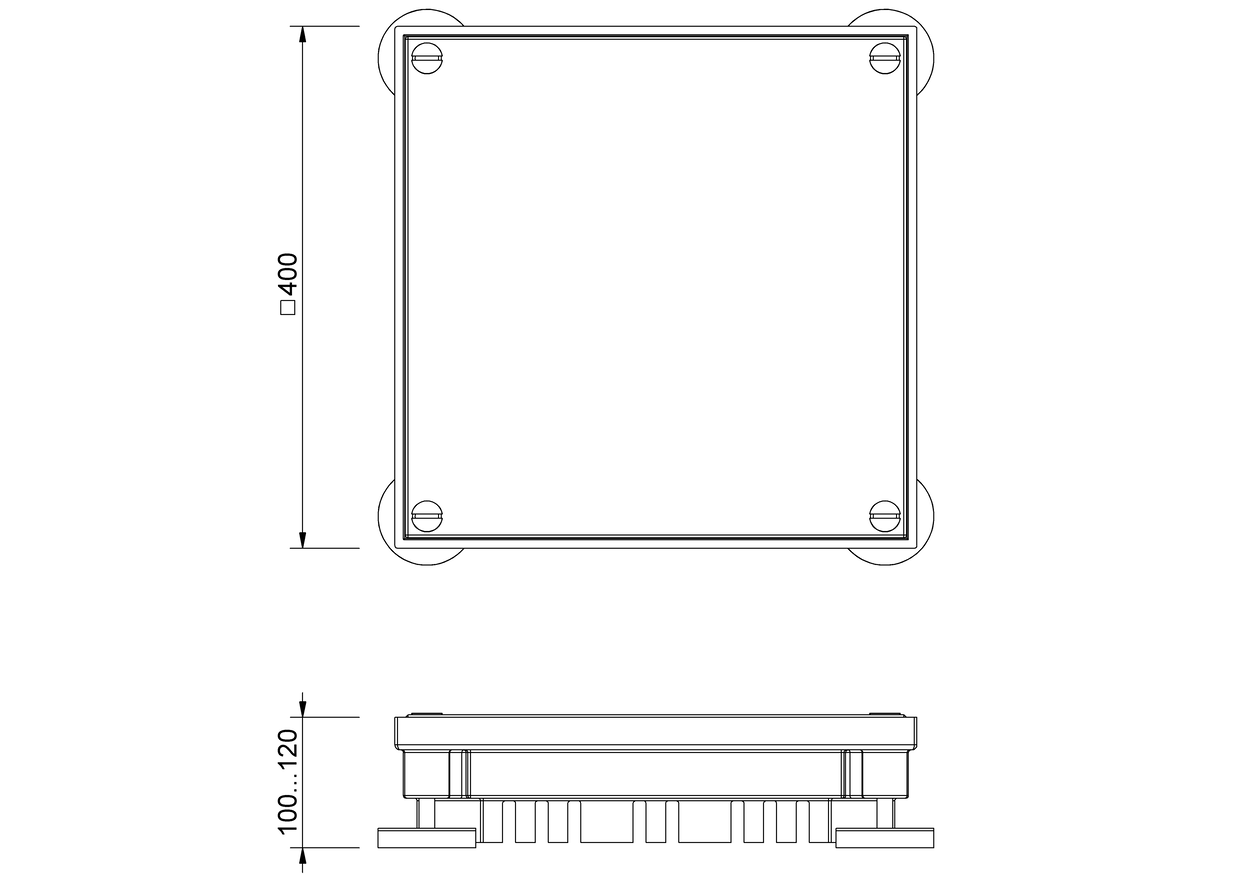

Technical drawing
| Height adjustment min (mm) | Height setting, max (mm) |
|---|---|
| 100 | 120 |
Performance text

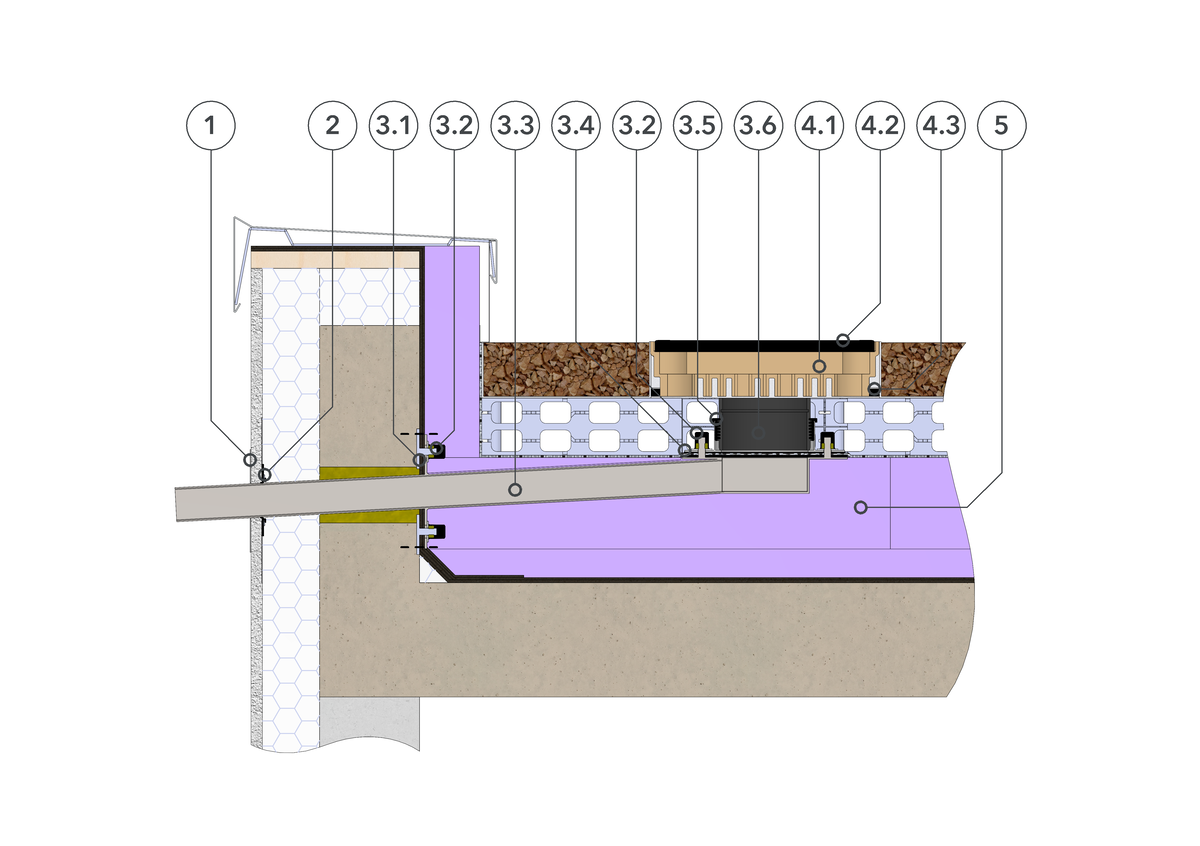

Installation Examples
MultiCAD und BIM-Daten
Downloads
DWG EB_SitaIndra_mit_SitaRetention_Fix_im_nicht_beluefteten_Dachaufbau_mit_Retentions_Gruendach.DWG
DWG EB_SitaIndra_mit_SitaMore_Anstauring_und_SitaRetention_Gruendachschacht_im_Retentionsdach.DWG
DWG EB_SitaIndra_ohne_Kiesfang_mit_SitaMore_Anstauring_und_SitaRetention_Fix_im_nicht_beluefteten_Dachaufbau.DWG
DWG EB_SitaTrendy_Schraubflansch_mit_Anstauring_und_SitaRetention_Gruendachschacht_im_Umkehrdach.DWG
DWG EB_SitaTurbo_Max_Umkehrdach_mit_SitaRetention_Gruendachschacht.DWG
PDF SitaIndra_mit_SitaRetention_Fix_im_nicht_beluefteten_Dachaufbau_mit_Retentions_Gruendach.pdf
PDF SitaIndra_mit_SitaMore_Anstauring_und_SitaRetention_Gruendachschacht_im_Retentionsdach.pdf
PDF SitaIndra_ohne_Kiesfang_mit_SitaMore_Anstauring_und_SitaRetention_Fix_im_nicht_beluefteten_Dachaufbau.pdf
PDF SitaTrendy_Schraubflansch_mit_Anstauring_und_SitaRetention_Gruendachschacht_im_Umkehrdach.pdf
PDF SitaTurbo_Max_Umkehrdach_mit_Daemmkoerper_und_SitaRetention_Gruendachschacht_im_Umkehrdach.pdf
Article selection

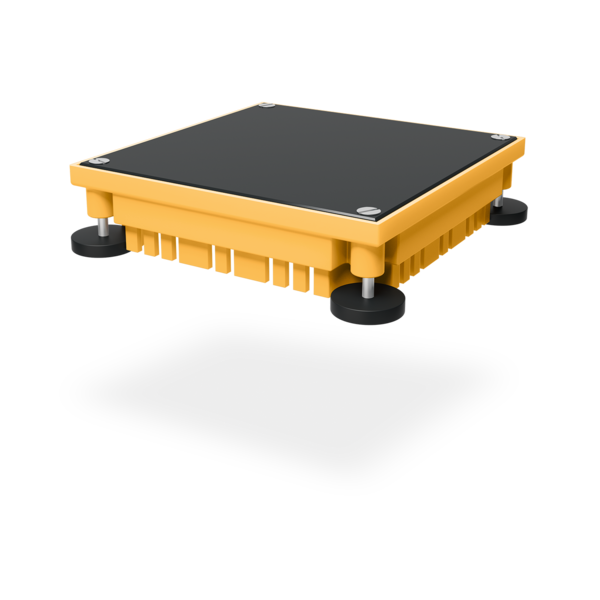

SitaRetention green roof shaft, made of polyurethane, 400 x 400 mm, with a closed cover made of PE and EPDM and four height-adjustable rubber feet. Load rating class H 1.5. Supply and install to professional standards.

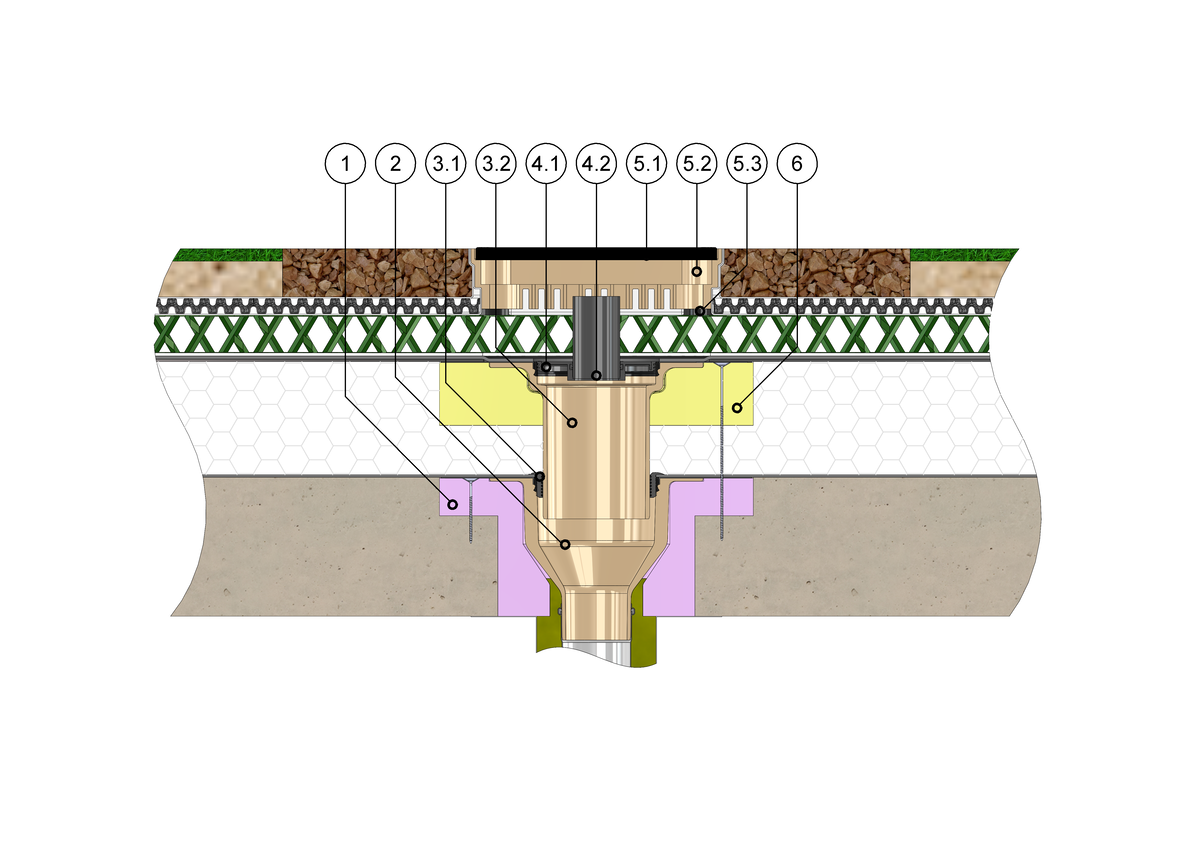

SitaRetention green roof shaft and SitaRetention Fix with SitaStandard in a non-ventilated roof structure with extensive greenery
1 SitaStandard insulating body
2 SitaStandard vertical
SitaStandard extension unit, consisting of:
3.1 Sealing ring
3.2 Base body
SitaRetention Fix consisting of:
4.1 Base plate
4.2 Ventilation pipe
4.3 Fastening ring
SitaRetention green roof shaft consisting of:
5.1 Closed cover
5.2 Base body
5.3 Height-adjustable rubber feet
6 SitaStandard insulating body for extension unit
2 SitaStandard vertical
SitaStandard extension unit, consisting of:
3.1 Sealing ring
3.2 Base body
SitaRetention Fix consisting of:
4.1 Base plate
4.2 Ventilation pipe
4.3 Fastening ring
SitaRetention green roof shaft consisting of:
5.1 Closed cover
5.2 Base body
5.3 Height-adjustable rubber feet
6 SitaStandard insulating body for extension unit
Non-ventilated roof structure with extensive greenery to the general rules of engineering with:
- Roof greenery according to system supplier
- Drainage mat
- Protective mat
- Sealing
- Thermal insulation
- Vapour barrier
- Substructure

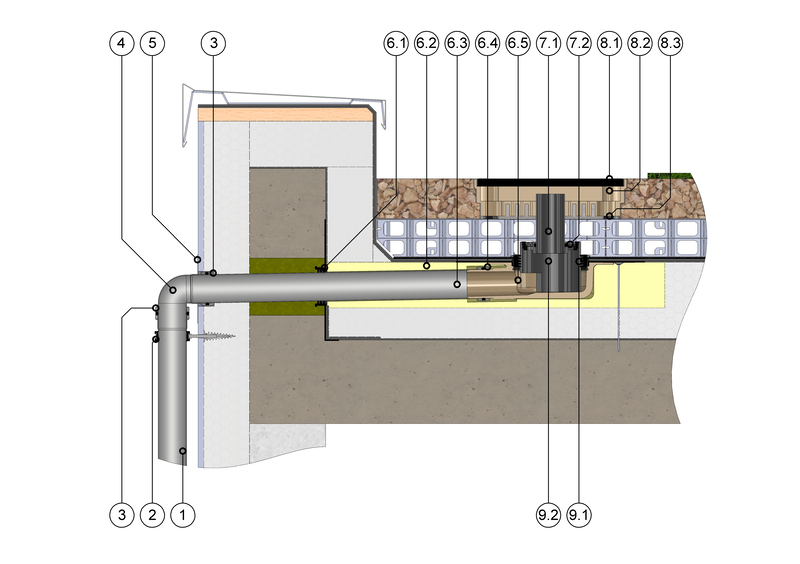

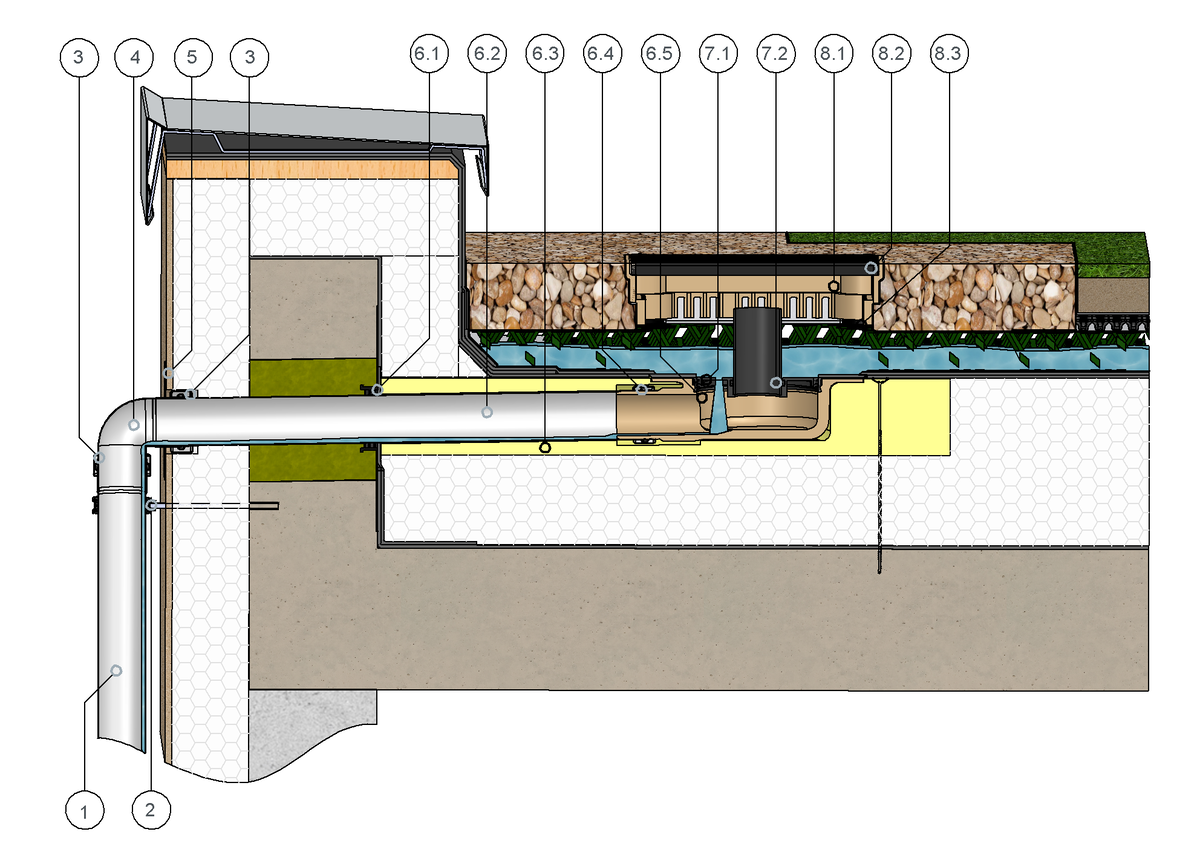

SitaIndra without dome grate with SitaRetention Fix in a non-ventilated roof structure with retention green roof
1 SitaPipe Edelstahl pipe
2 SitaPipe Edelstahl pipe clamp
3 SitaPipe Edelstahl safety clamp
4 SitaPipe Edelstahl bend 87.5°
5 SitaAttika cladding cover plate
SitaIndra without dome grate consisting of:
6.1 SitaMore vapour barrier plate flex
6.2 SitaPipe Edelstahl pipe
6.3 SitaIndra insulating body
6.4 SitaPipe Edelstahl safety clamp
6.5 SitaIndra base body
SitaRetention Fix consisting of:
7.1 Base plate with fastening ring
7.2 Ventilation pipe
SitaRetention green roof shaft consisting of:
8.1 Base body
8.2 Closed cover
8.3 Height-adjustable rubber feet
2 SitaPipe Edelstahl pipe clamp
3 SitaPipe Edelstahl safety clamp
4 SitaPipe Edelstahl bend 87.5°
5 SitaAttika cladding cover plate
SitaIndra without dome grate consisting of:
6.1 SitaMore vapour barrier plate flex
6.2 SitaPipe Edelstahl pipe
6.3 SitaIndra insulating body
6.4 SitaPipe Edelstahl safety clamp
6.5 SitaIndra base body
SitaRetention Fix consisting of:
7.1 Base plate with fastening ring
7.2 Ventilation pipe
SitaRetention green roof shaft consisting of:
8.1 Base body
8.2 Closed cover
8.3 Height-adjustable rubber feet
Retention roof in non-ventilated roof structure to the general rules of engineering with:
- Retention structure and roof greenery according to system supplier
- Sealing
- Thermal insulation
- Vapour barrier
- Substructure

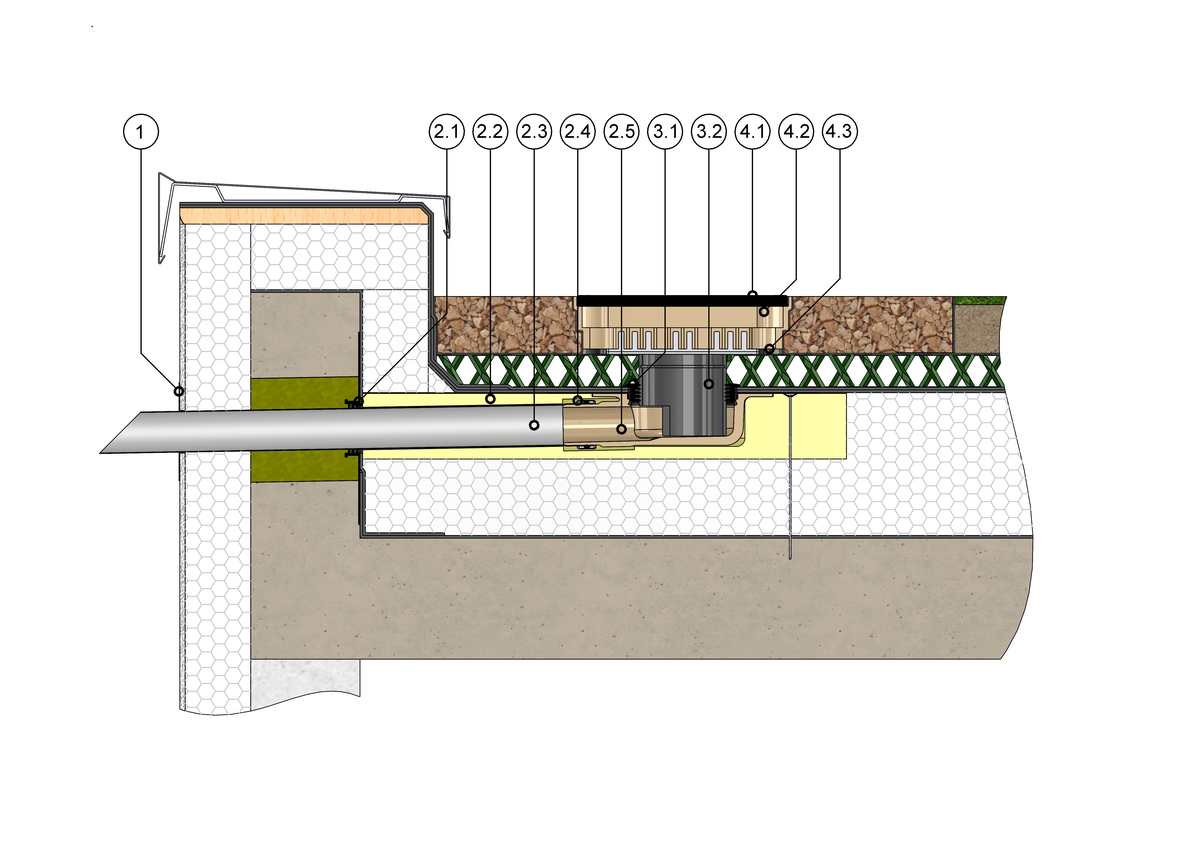

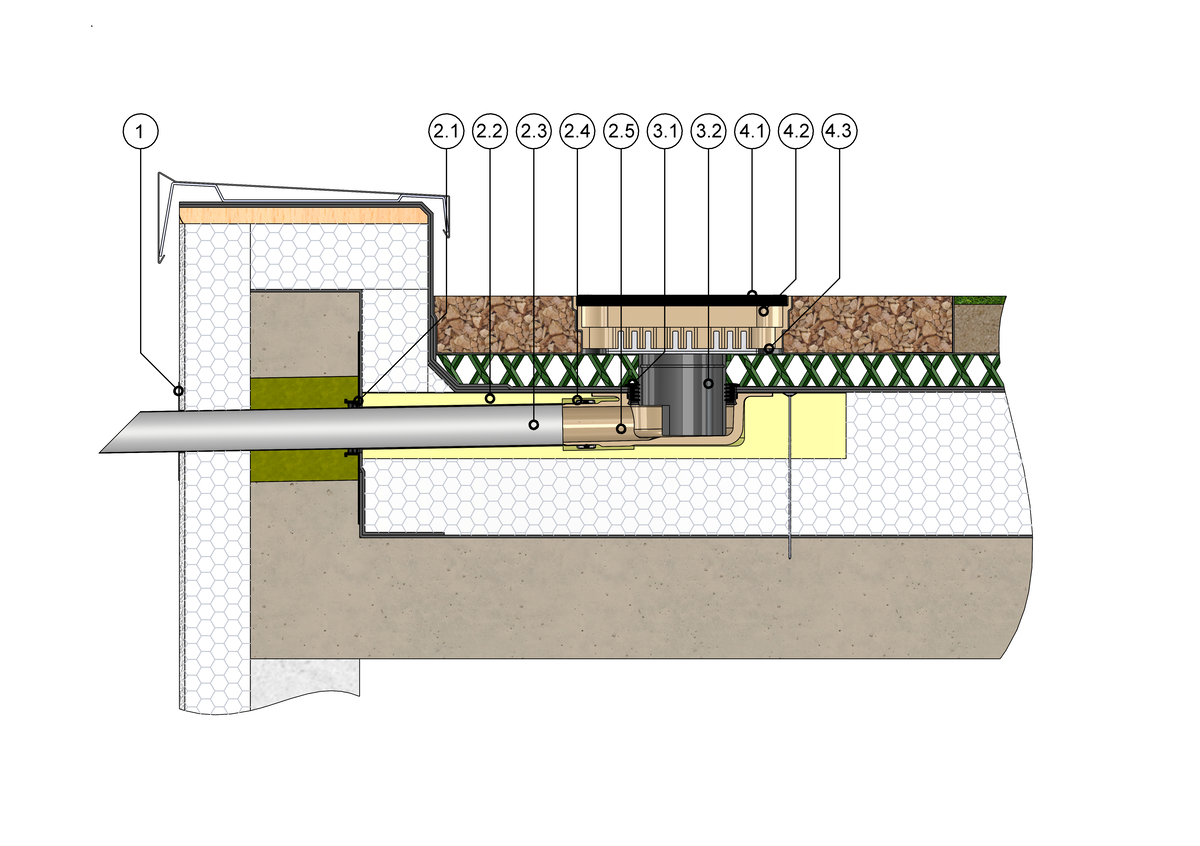

SitaIndra without dome grate with SitaMore retaining ring in non-ventilated roof structure
1 SitaAttika cladding cover plate
SitaIndra without dome grate consisting of:
2.1 Vapour barrier plate flex
2.2 Stainless steel pipe
2.3 Insulating body
2.4 Edelstahl safety clamp
2.5 Base body with connection sleeve of choice
SitaMore retaining ring consisting of:
3.1 Sealing ring
3.2 Base body
SitaRetention green roof shaft consisting of:
4.1 Closed cover
4.2 Base body
4.3 Height-adjustable rubber feet
SitaIndra without dome grate consisting of:
2.1 Vapour barrier plate flex
2.2 Stainless steel pipe
2.3 Insulating body
2.4 Edelstahl safety clamp
2.5 Base body with connection sleeve of choice
SitaMore retaining ring consisting of:
3.1 Sealing ring
3.2 Base body
SitaRetention green roof shaft consisting of:
4.1 Closed cover
4.2 Base body
4.3 Height-adjustable rubber feet
Retention roof in a non-ventilated roof structure according to the general rules of engineering with:
- Retention structure and roof structure according to system supplier
- Sealing
- Thermal insulation
- Vapour barrier
- Substructure

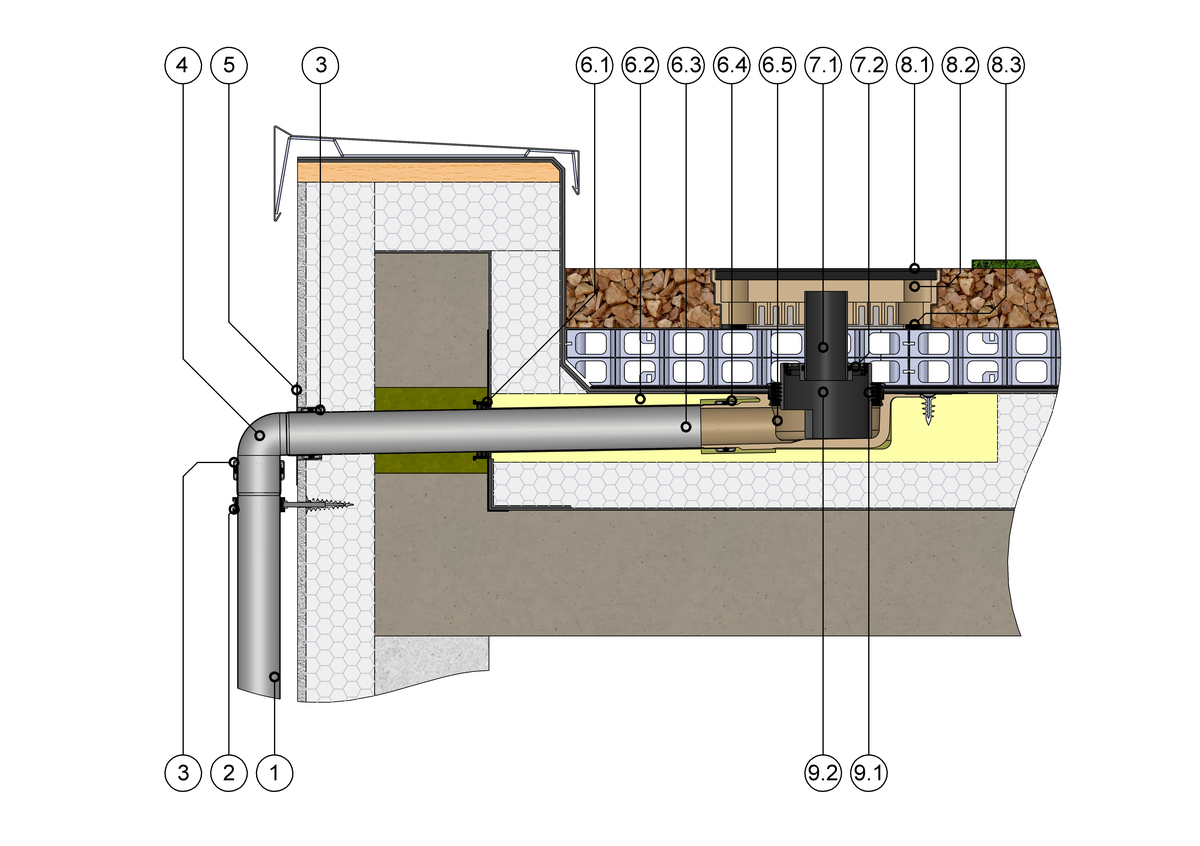

SitaIndra without dome grate with SitaRetention green roof shaft, SitaMore retaining ring and SitaRetention Fix in a non-ventilated roof structure
1 SitaPipe Edelstahl pipe
2 SitaPipe Edelstahl pipe clamp
3 SitaPipe Edelstahl safety clamp
4 SitaPipe Edelstahl bend
5 SitaAttika cladding cover plate
SitaIndra without dome grate consisting of:
6.1 Vapour barrier plate flex
6.2 Insulating body
6.3 Stainless steel pipe
6.4 Edelstahl safety clamp
6.5 Base body with connection sleeve of choice
SitaRetention Fix consisting of:
7.1 Ventilation pipe
7.2 Base plate with fastening ring
SitaRetention green roof shaft consisting of:
8.1 Closed cover
8.2 Base body
8.3 Height-adjustable rubber feet
SitaMore retaining ring consisting of:
9.1 Sealing ring
9.2 Retaining ring
2 SitaPipe Edelstahl pipe clamp
3 SitaPipe Edelstahl safety clamp
4 SitaPipe Edelstahl bend
5 SitaAttika cladding cover plate
SitaIndra without dome grate consisting of:
6.1 Vapour barrier plate flex
6.2 Insulating body
6.3 Stainless steel pipe
6.4 Edelstahl safety clamp
6.5 Base body with connection sleeve of choice
SitaRetention Fix consisting of:
7.1 Ventilation pipe
7.2 Base plate with fastening ring
SitaRetention green roof shaft consisting of:
8.1 Closed cover
8.2 Base body
8.3 Height-adjustable rubber feet
SitaMore retaining ring consisting of:
9.1 Sealing ring
9.2 Retaining ring
Retention roof in a non-ventilated roof structure to the general rules of engineering with:
- Retention structure and roof greenery according to system supplier
- Waterproofing membrane
- Thermal insulation
- Vapour barrier
- Substructure

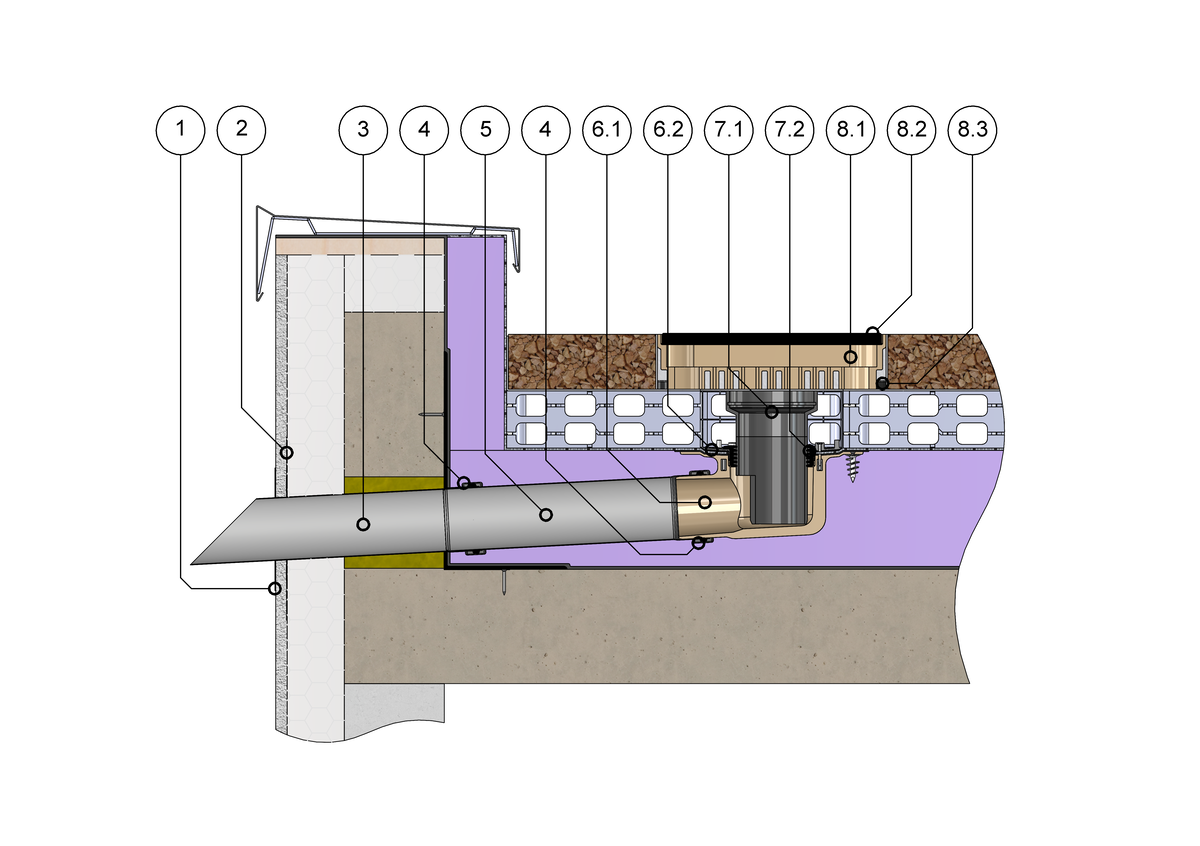

SitaTrendy screw-on flange with SitaTrendy retaining ring and SitaRetention green roof shaft in the inverted roof
1 SitaAttika cladding cover plate
2 SitaMore sealing sleeve
3 SitaKaskade lead-through Fluid
4 SitaPipe Edelstahl safety clamp
5 SitaPipe Edelstahl pipe
SitaTrendy screw-on flange angled consisting of:
6.1 Base body
6.2 Screw-on flange with nuts, washers and sealing sleeves
SitaTrendy retaining ring consisting of:
7.1 Base body
7.2 Sealing ring
SitaRetention green roof shaft consisting of:
8.1 Base body
8.2 Closed cover
8.3 Height-adjustable rubber feet
2 SitaMore sealing sleeve
3 SitaKaskade lead-through Fluid
4 SitaPipe Edelstahl safety clamp
5 SitaPipe Edelstahl pipe
SitaTrendy screw-on flange angled consisting of:
6.1 Base body
6.2 Screw-on flange with nuts, washers and sealing sleeves
SitaTrendy retaining ring consisting of:
7.1 Base body
7.2 Sealing ring
SitaRetention green roof shaft consisting of:
8.1 Base body
8.2 Closed cover
8.3 Height-adjustable rubber feet
Retention inverted roof to the general rules of engineering with:
- Roof greenery according to system supply
- Filter fabric
- Water retention area
- Water-draining separating layer
- XPS thermal insulation
- Waterproofing
- Substructure

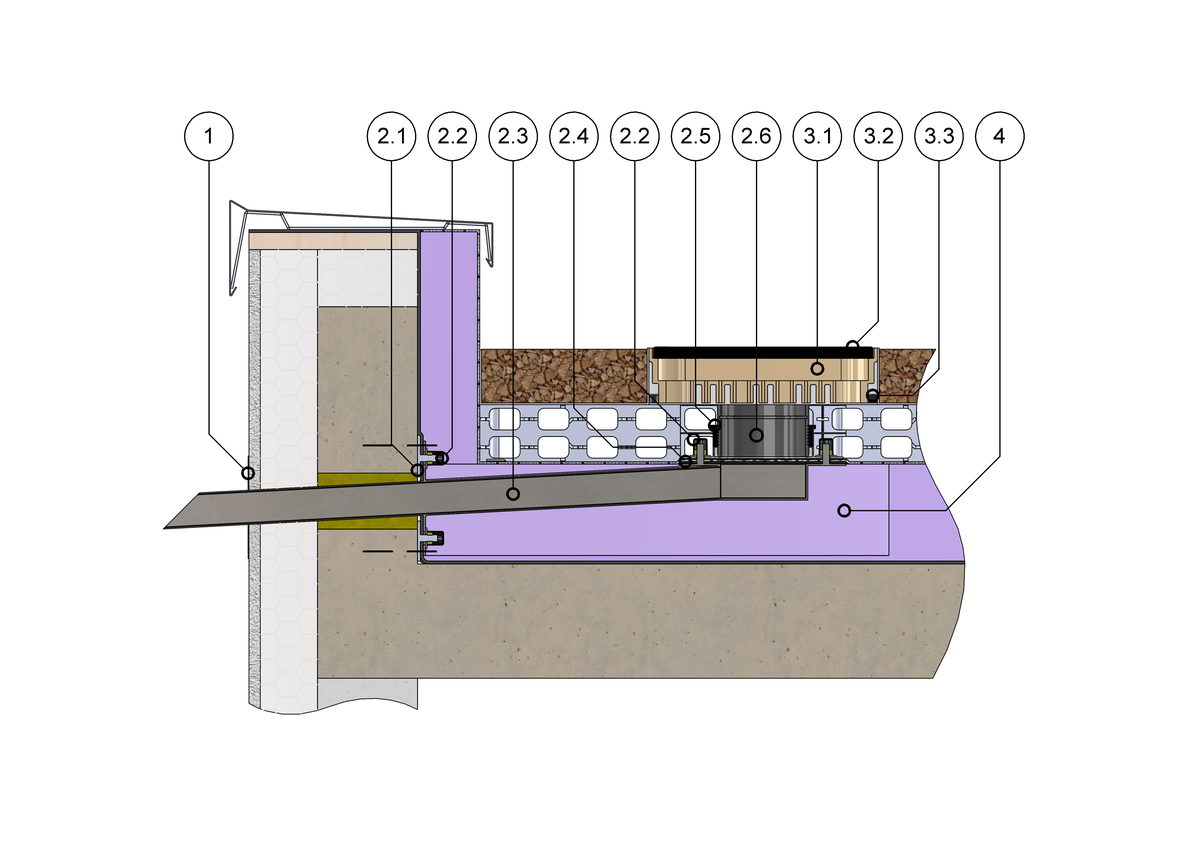

SitaTurbo Max inverted roof with SitaTurbo insulating body and SitaRetention green roof shaft in the inverted roof
1 SitaTurbo cladding cover plate
SitaTurbo inverted roof consisting of:
2.1 Fixed flange plate
2.2 Washers, nuts and protective caps
2.3 Base body with welded loose flange plate
2.4 Loose retaining flange
2.5 Sealing ring
2.6 PE retaining ring
SitaRetention green roof shaft consisting of:
3.1 Base body
3.2 Closed cover
3.3 Height-adjustable rubber feet
4 SitaTurbo insulating body XPS
SitaTurbo inverted roof consisting of:
2.1 Fixed flange plate
2.2 Washers, nuts and protective caps
2.3 Base body with welded loose flange plate
2.4 Loose retaining flange
2.5 Sealing ring
2.6 PE retaining ring
SitaRetention green roof shaft consisting of:
3.1 Base body
3.2 Closed cover
3.3 Height-adjustable rubber feet
4 SitaTurbo insulating body XPS
Inverted roof structure to the general rules of engineering with:
- Roof greenery according to system supply
- Filter fabric
- Water retention area
- Water-draining separating layer
- XPS thermal insulation
- Waterproofing
- Substructure
In order for the external content to be
displayed at this location, you must accept
the cookies of the category
"Preferences".
You can adjust the cookie settings here.
You can adjust the cookie settings here.
AutoCAD
DWG EB_SitaRetention_Gruendachschacht_und_SitaRetention_Fix_mit_SitaStandard_im_nicht_beluefteten_Dach.DWGDWG EB_SitaIndra_mit_SitaRetention_Fix_im_nicht_beluefteten_Dachaufbau_mit_Retentions_Gruendach.DWG
DWG EB_SitaIndra_mit_SitaMore_Anstauring_und_SitaRetention_Gruendachschacht_im_Retentionsdach.DWG
DWG EB_SitaIndra_ohne_Kiesfang_mit_SitaMore_Anstauring_und_SitaRetention_Fix_im_nicht_beluefteten_Dachaufbau.DWG
DWG EB_SitaTrendy_Schraubflansch_mit_Anstauring_und_SitaRetention_Gruendachschacht_im_Umkehrdach.DWG
DWG EB_SitaTurbo_Max_Umkehrdach_mit_SitaRetention_Gruendachschacht.DWG
Installation Examples
PDF SitaRetention_Gruendachschacht_und_SitaRetention_Fix_mit_SitaStandard_im_nicht_beluefteten_Dach.pdfPDF SitaIndra_mit_SitaRetention_Fix_im_nicht_beluefteten_Dachaufbau_mit_Retentions_Gruendach.pdf
PDF SitaIndra_mit_SitaMore_Anstauring_und_SitaRetention_Gruendachschacht_im_Retentionsdach.pdf
PDF SitaIndra_ohne_Kiesfang_mit_SitaMore_Anstauring_und_SitaRetention_Fix_im_nicht_beluefteten_Dachaufbau.pdf
PDF SitaTrendy_Schraubflansch_mit_Anstauring_und_SitaRetention_Gruendachschacht_im_Umkehrdach.pdf
PDF SitaTurbo_Max_Umkehrdach_mit_Daemmkoerper_und_SitaRetention_Gruendachschacht_im_Umkehrdach.pdf
| SitaRetention | Article no. | ||
|---|---|---|---|
green roof shaft | |||
| 120 mm | 233040 | Show product |
+
