SitaTrendy
Conventional outlet
Attributes
- Thermally insulated
- Not sensitive to the weather (UV/IR radiation, rain/snow, temperature, ozone, etc.)
- Impact and shock resistant
- Durable

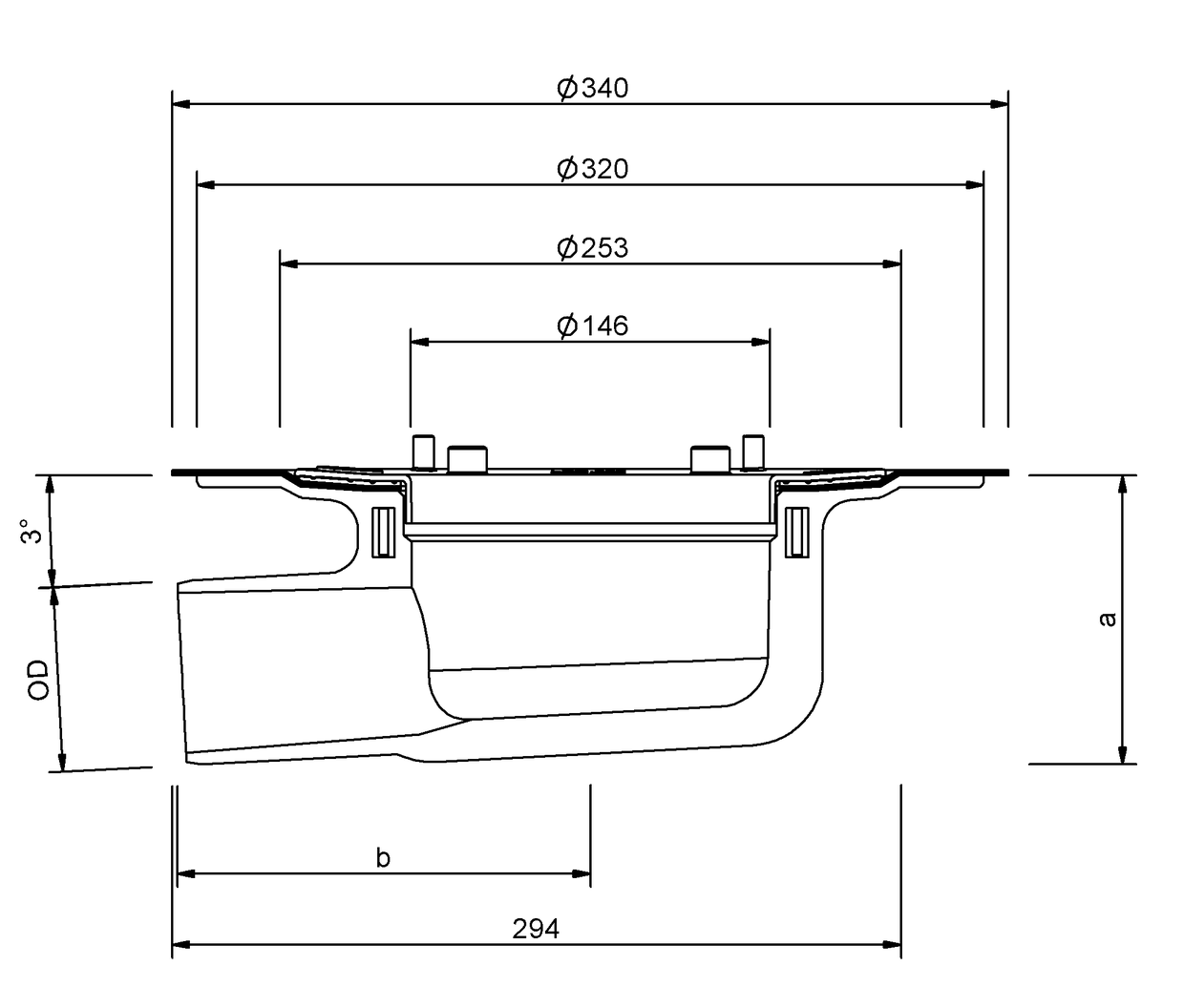

Technical drawing
| Size DN | External diameter OD (mm) | Recess dimension (mm x mm) | a (mm) | b (mm) |
|---|---|---|---|---|
| 70 | 75 | 250 mm x 350 mm | 117 | 165 |
| 100 | 110 | 250 mm x 350 mm | 153 | 162 |
| 125 | 125 | 250 mm x 420 mm | 161 | 241 |
Performance text
Streamflow
Discharge rate according to DIN EN 1253-2 in l/s
Discharge rate according to DIN EN 1253-2 with retaining element for emergency drainage in l/s
Hier finden Sie eine Übersicht über alle verfügbaren Abflussmengen.
Installation Examples
Downloads
PDF TechnischeZeichnung_OK151699_en.pdf
PDF TechnischeZeichnung_OK151899_en.pdf
DWG TZ_DB_SitaTrendy_Schraubflansch_abgewinkelt_ohne_Kiesfang_DN100.DWG
DWG TZ_DB_SitaTrendy_Schraubflansch_abgewinkelt_ohne_Kiesfang_DN125.DWG
DWG TZ_DB_SitaTrendy_Schraubflansch_abgewinkelt_ohne_Kiesfang_DN70.DWG
Article selection
SitaTrendy screw-on flange angled without dome grate, made of polyurethane, thermally insulated, to DIN EN 1253-2, in sizes DN 70, DN 100 and DN 125. For direct connection to pipes with a plug-in coupler, for conventional drainage, with pre-drilled holes for securing the component in the substructure. With foamed-in insert ring for the supplied screws, loose aluminium flange and two sealing sleeves for clamping bitumen, plastic or EPDM roofing membranes, supply and install to professional standards.
|
Back-up Heigh (mm) | ||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Size DN | 5 | 10 | 15 | 20 | 25 | 30 | 35 | 40 | 45 | 50 | 55 | 60 | 65 | 70 | 75 | 80 | 85 | 90 | 95 | 100 |
| 70 | 0.5 | 1.1 | 1.6 | 2.6 | 3.5 | 4.5 | 5.4 | 6.5 | 7.5 | 8.5 | 9.5 | 10.8 | 12.1 | 12.1 | 12.1 | 12.1 | 12.1 | 12.1 | 12.1 | 12.1 |
| 100 | 0.5 | 1.2 | 1.8 | 2.7 | 3.6 | 4.6 | 5.6 | 6.7 | 7.8 | 9 | 10.2 | 11.9 | 13.5 | 13.5 | 13.5 | 13.5 | 13.5 | 13.5 | 13.5 | 13.5 |
| 125 | 0.6 | 1.5 | 2.4 | 3.1 | 3.8 | 4.8 | 5.7 | 6.8 | 7.9 | 9.5 | 11 | 12.4 | 13.8 | 13.8 | 13.8 | 13.8 | 13.8 | 13.8 | 13.8 | 13.8 |
|
Back-up Heigh (mm) | ||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Size DN | 5 | 10 | 15 | 20 | 25 | 30 | 35 | 40 | 45 | 50 | 55 | 60 | 65 | 70 | 75 | 80 | 85 | 90 | 95 | 100 |
| 70 | 0.5 | 1.1 | 1.6 | 2.6 | 3.5 | 4.5 | 5.4 | 6.5 | 7.5 | 8.5 | 9.5 | 10.8 | 12.1 | 12.1 | 12.1 | 12.1 | 12.1 | 12.1 | 12.1 | 12.1 |
| 100 | 0.5 | 1.2 | 1.8 | 2.7 | 3.6 | 4.6 | 5.6 | 6.7 | 7.8 | 9 | 10.2 | 11.9 | 13.5 | 13.5 | 13.5 | 13.5 | 13.5 | 13.5 | 13.5 | 13.5 |
SitaTrendy screw-on flange angled with SitaKaskade lead-through for emergency drainage in an inverted roof
1 SitaAttika cladding cover plate
2 SitaKaskade lead-through Fluid
3 SitaMore sealing sleeve for WDVS
4 SitaPipe Edelstahl safety clamp
5 SitaPipe Edelstahl pipe
SitaMore retaining element consisting of:
6.1 Height-adjustable rubber-metal buffers
6.2 Closed cover
6.3 Sealing ring
6.4 Base body
SitaTrendy screw-on flange angled consisting of:
7.1 Sealing sleeve and screw-on flange
7.2 Base body
2 SitaKaskade lead-through Fluid
3 SitaMore sealing sleeve for WDVS
4 SitaPipe Edelstahl safety clamp
5 SitaPipe Edelstahl pipe
SitaMore retaining element consisting of:
6.1 Height-adjustable rubber-metal buffers
6.2 Closed cover
6.3 Sealing ring
6.4 Base body
SitaTrendy screw-on flange angled consisting of:
7.1 Sealing sleeve and screw-on flange
7.2 Base body
Inverted roof structure to the general rules of engineering with:
- Roof greenery according to system suppler
- Drainage layer
- Filter fabric
- XPS thermal insulation
- Sealing
- Substructure
SitaTrendy screw-on flange with SitaTrendy retaining ring and SitaRetention green roof shaft in the inverted roof
1 SitaAttika cladding cover plate
2 SitaMore sealing sleeve
3 SitaKaskade lead-through Fluid
4 SitaPipe Edelstahl safety clamp
5 SitaPipe Edelstahl pipe
SitaTrendy screw-on flange angled consisting of:
6.1 Base body
6.2 Screw-on flange with nuts, washers and sealing sleeves
SitaTrendy retaining ring consisting of:
7.1 Base body
7.2 Sealing ring
SitaRetention green roof shaft consisting of:
8.1 Base body
8.2 Closed cover
8.3 Height-adjustable rubber feet
2 SitaMore sealing sleeve
3 SitaKaskade lead-through Fluid
4 SitaPipe Edelstahl safety clamp
5 SitaPipe Edelstahl pipe
SitaTrendy screw-on flange angled consisting of:
6.1 Base body
6.2 Screw-on flange with nuts, washers and sealing sleeves
SitaTrendy retaining ring consisting of:
7.1 Base body
7.2 Sealing ring
SitaRetention green roof shaft consisting of:
8.1 Base body
8.2 Closed cover
8.3 Height-adjustable rubber feet
Retention inverted roof to the general rules of engineering with:
- Roof greenery according to system supply
- Filter fabric
- Water retention area
- Water-draining separating layer
- XPS thermal insulation
- Waterproofing
- Substructure
Technical drawings
PDF TechnischeZeichnung_OK151499_en.pdfPDF TechnischeZeichnung_OK151699_en.pdf
PDF TechnischeZeichnung_OK151899_en.pdf
DWG TZ_DB_SitaTrendy_Schraubflansch_abgewinkelt_ohne_Kiesfang_DN100.DWG
DWG TZ_DB_SitaTrendy_Schraubflansch_abgewinkelt_ohne_Kiesfang_DN125.DWG
DWG TZ_DB_SitaTrendy_Schraubflansch_abgewinkelt_ohne_Kiesfang_DN70.DWG
| SitaTrendy | Article no. | |||
|---|---|---|---|---|
Screw-on flange angled without dome grate | ||||
| DN 70 | Screw-on flange | OK151499 | Show product | |
| DN 100 | Screw-on flange | OK151699 | Show product | |
| DN 125 | Screw-on flange | OK151899 | Show product |
+
