SitaTurbo Max

Cover plate

Attributes

Excellent resistance to weather (UV/IR radiation)
Resistant to normal environmental influences
Impact and shock resistant
Long lifespan

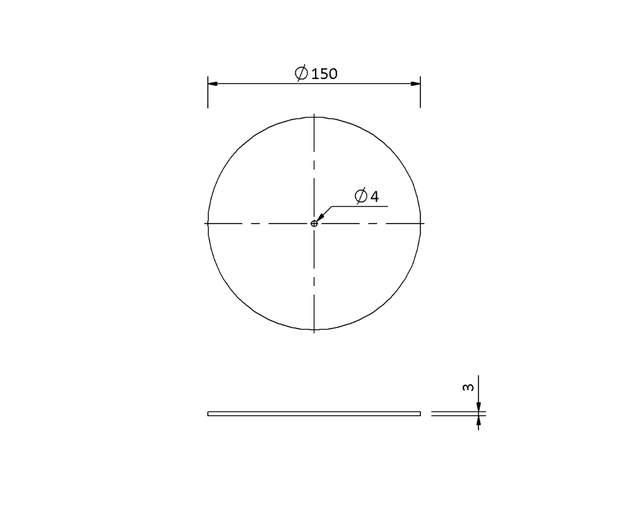

Technical drawing

External diameter OD (mm)
150

Performance text Installation Examples

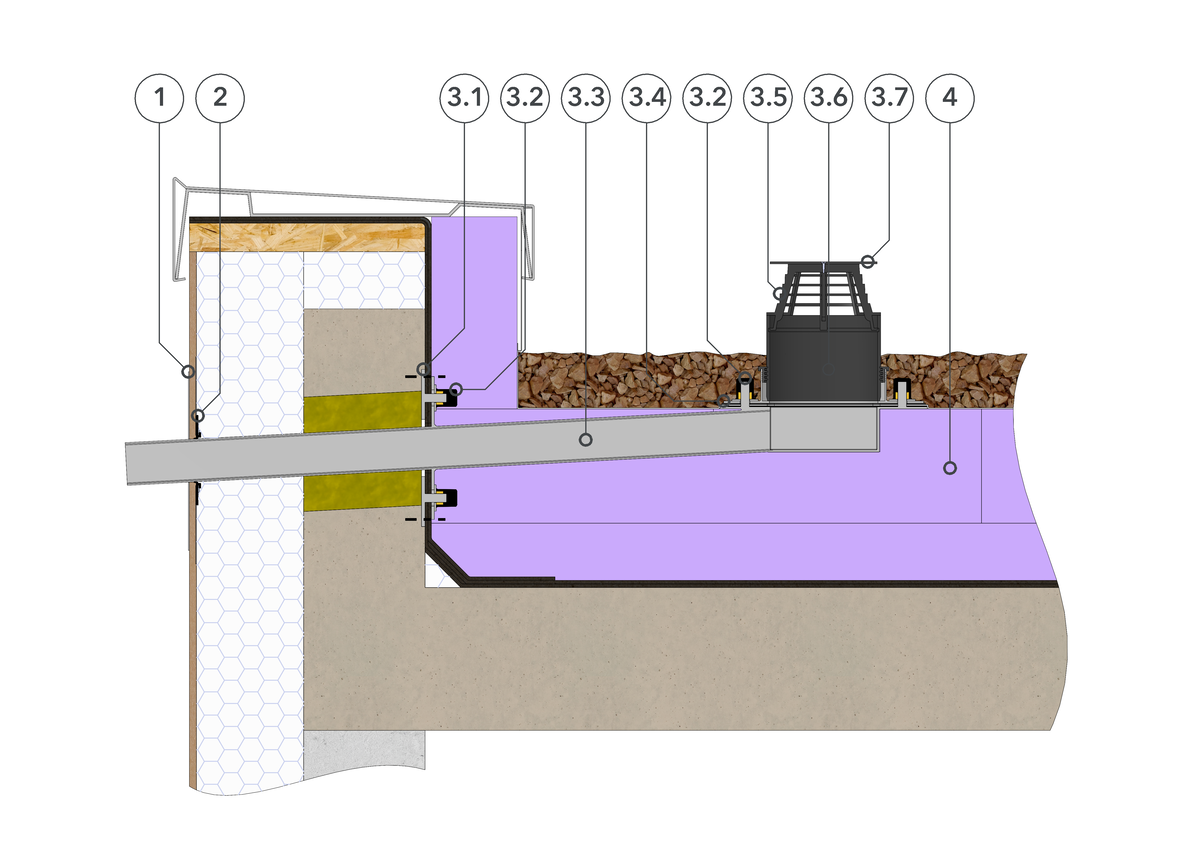

SitaTurbo Max inverted roof with retaining ring for emergency drainage

1 SitaTurbo cladding cover plate

SitaTurbo inverted roof consisting of:
2.1 Fixed flange plate
2.2 Washers, nuts and protective caps
2.3 SitaTurbo base body with welded loose flange plate
2.4 Loose retaining flange
2.5 PE retaining ring
2.6 Dome grate

3 Dome grate cover plate
4 SitaTurbo insulating body

Inverted roof structure to the general rules of engineering with:

Gravel fill
Roof fleece
Thermal insulation
Waterproofing
Substructure
Attic breakthrough with joint tape

MultiCAD und BIM-Daten

In order for the external content to be displayed at this location, you must accept the cookies of the category "Preferences".
You can adjust the cookie settings here.

Downloads

SitaTurbo Max		Article no.
Cover plate
Cover plate	SitaTurbo Max with retaining ring	189115	Show product
