SitaVasant

Double emergency drainage channel

Foto_S_SitaVasant_Double_Notentwaesserungskanal.tif

Attributes

Simple installation
Rapid expansion of emergency drainage
Height of the inlet edge at 35 mm

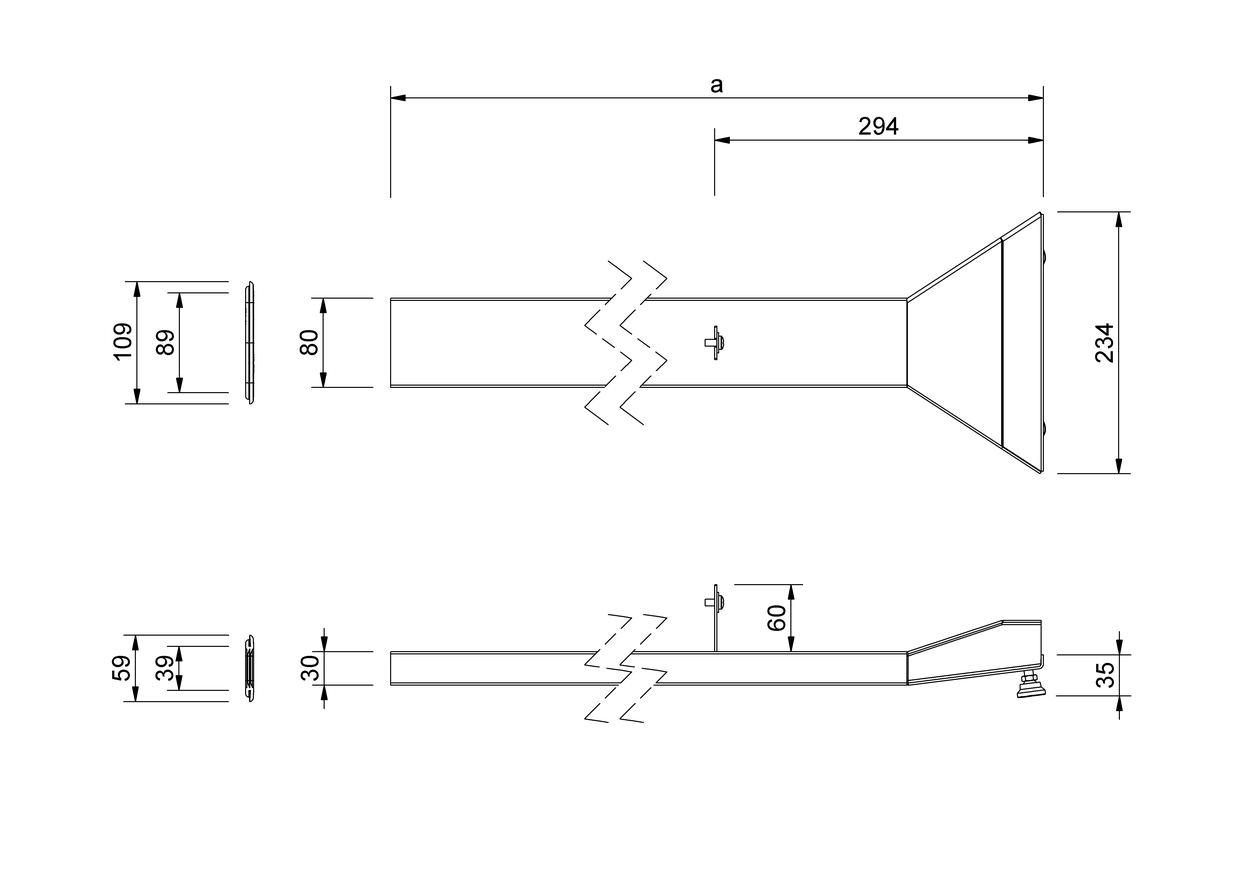

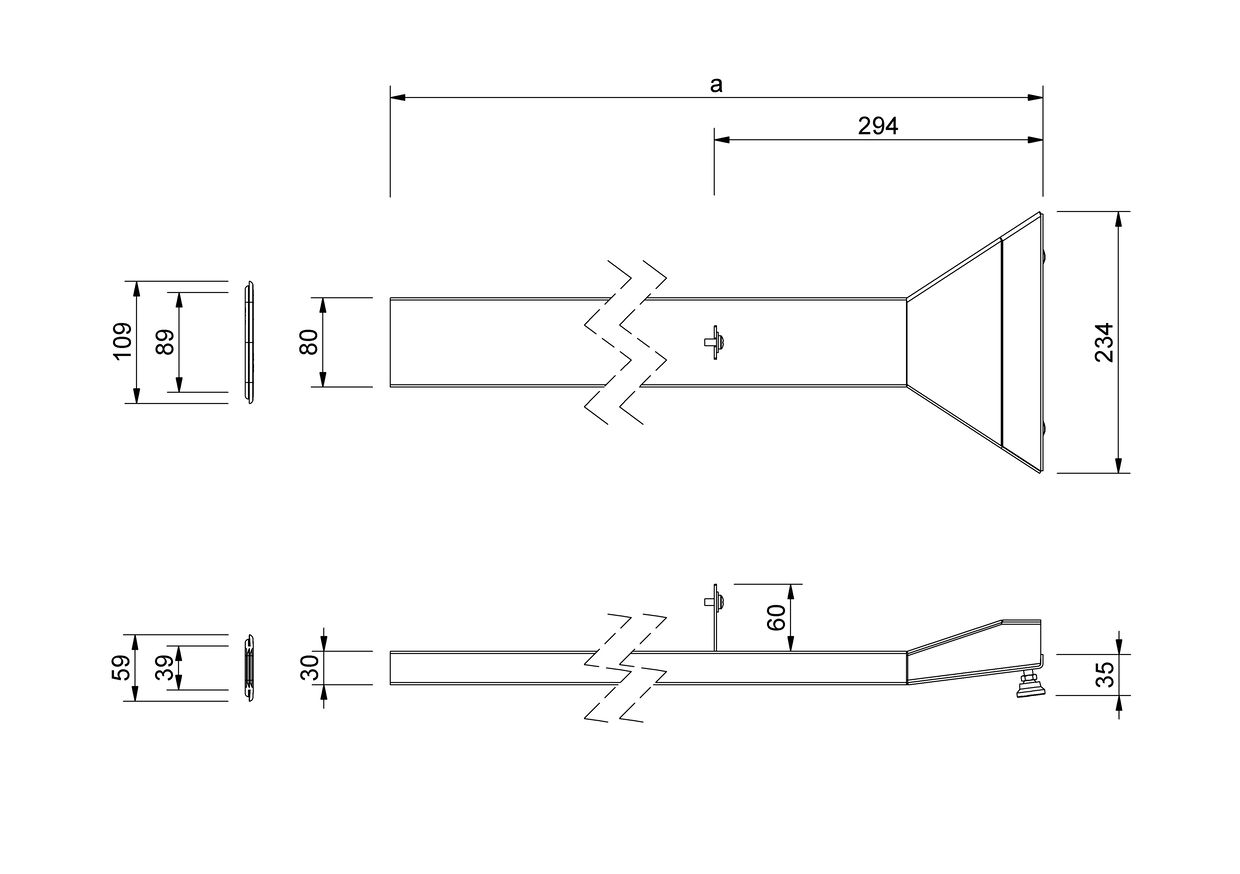

Technical drawing

a (mm)
1122
1622

Performance text

SitaVasant Double emergency drainage channel, made of stainless steel, material number 1.4301, for emergency drainage, for installation in the SitaVasant, height of the inlet edge 35 mm, component length 1121 or 1621 mm, with welded-on bracket for fastening to the outlet, including hinged feet and sealing ring, supply and install to professional standards.

Installation Examples

SitaVasant Double with dome grate in a non-ventilated roof structure

1 SitaPipe Edelstahl pipe
2 SitaPipe Edelstahl pipe clamp
3 SitaPipe Edelstahl safety clamp
4 SitaMore sealing sleeve
5 SitaVasant Double transition piece

SitaVasant Double consisting of:
6.1 Pipe
6.2 Emergency drainage channel
6.3 Vapour barrier plate
6.4 Safety clamp
6.5 Gully
6.6 Hinged foot

7 SitaVasant Double dome grate

Non-ventilated roof structure to the general rules of engineering with:

Waterproofing membrane
Thermal insulation
Vapour barrier
Substructure

Downloads

SitaVasant			Article no.
Double emergency drainage channel
	For 500 mm	SitaVasant 500 mm	509003	Show product
	For 1000 mm	SitaVasant 1000 mm	509004	Show product
