SitaVent
Base plate
- Products
Accessories
Base plate
Attributes
- Heat-insulated
- Excellent resistance to weather (UV/IR radiation)
- Resistant to normal environmental influences
- Impact and shock resistant
- Long lifespan

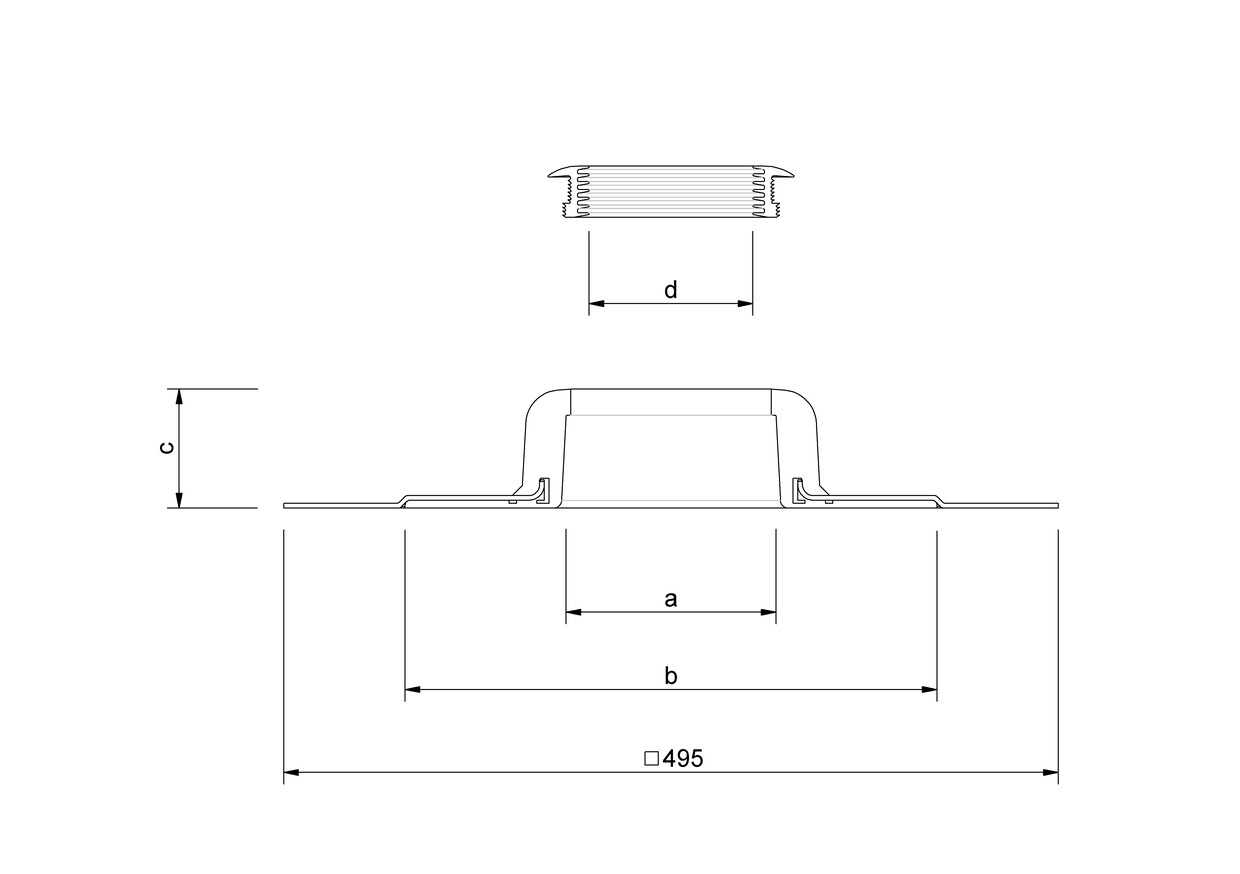

Technical drawing
| Size DN | Opening/Core borehole (mm) | a (mm) | b (mm) | c (mm) | d (mm) |
|---|---|---|---|---|---|
| 100 | 170 | 134 | 340 | 76 | 105 |
| 150 | 220 | 190 | 376 | 80 | 155 |
Performance text
MultiCAD und BIM-Daten
Downloads
Article selection
SitaVent base plate, made of polyurethane, in sizes DN 100 or DN 150, with foamed-in connection sleeve of choice (495 mm x 495 mm) to suit the roofing membrane. Complete including seven-lip sealing ring and lubrication, supply and install to professional standards.
