SitaVent

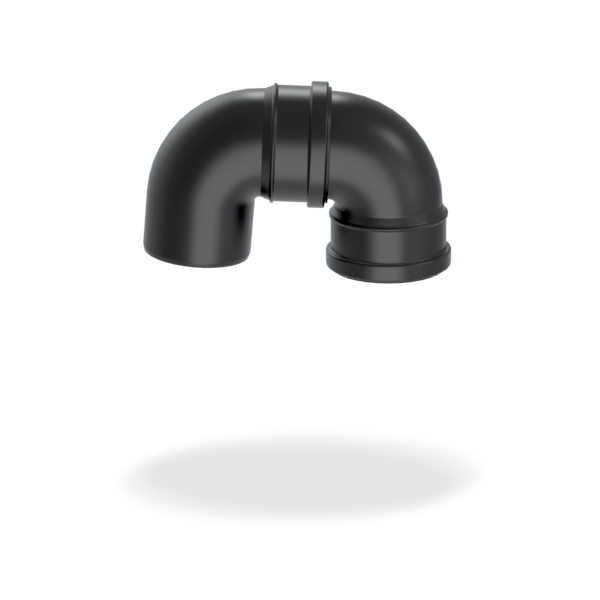

Pipe bend
Attributes
- Toolless installation
- Can be combined with the SitaVent vapour barrier cap

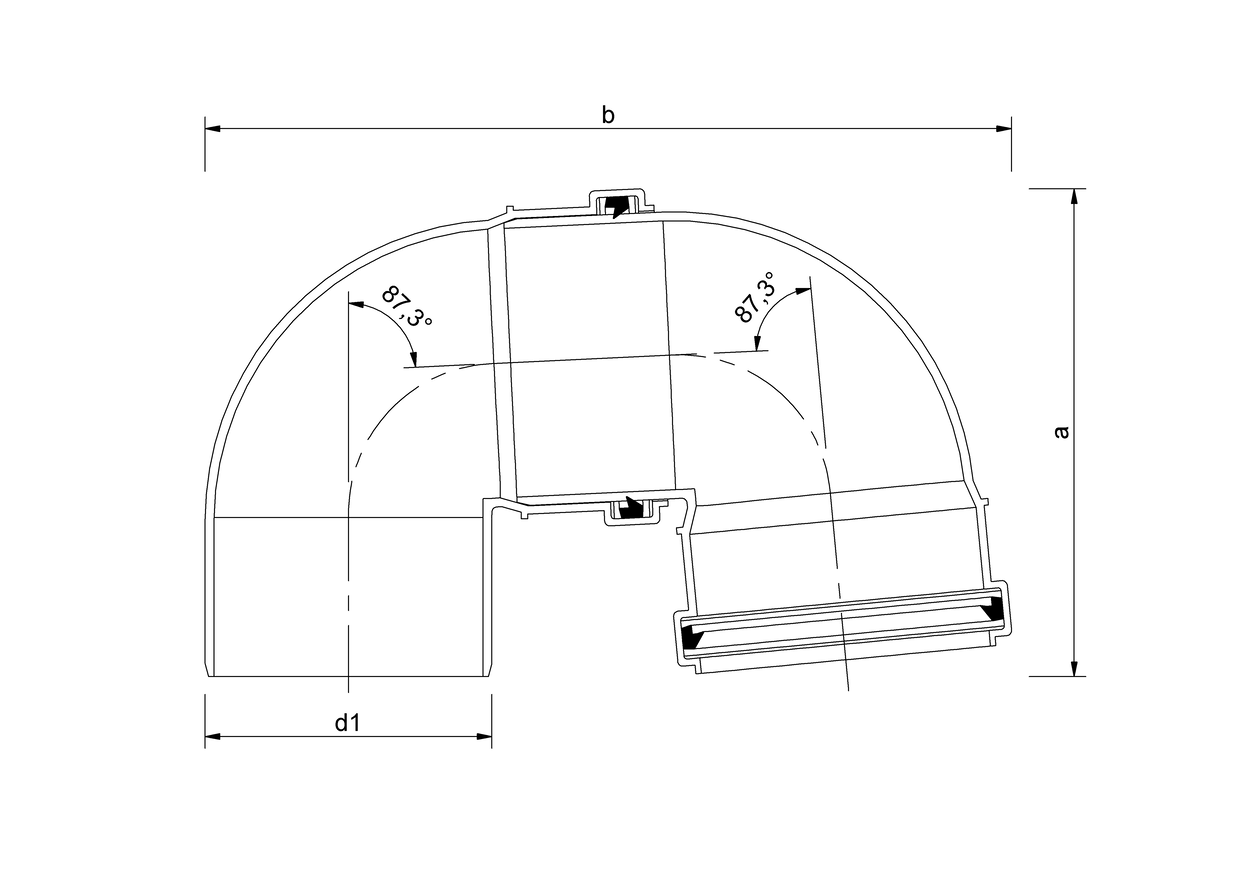

Technical drawing
| Size DN | External diameter OD (mm) | a (mm) | b (mm) | d1 (mm) |
|---|---|---|---|---|
| 100 | 110 | 194 | 315 | 110 |
| 150 | 160 | 260 | 427 | 160 |
| Size DN | External diameter OD (mm) | a (mm) | b (mm) | d1 (mm) |
|---|---|---|---|---|
| 100 | 110 | 194 | 315 | 110 |
| 150 | 160 | 260 | 427 | 160 |
