SitaMore
Transition connector set
Attributes
- Stable shape
- Robust
- Installed in a few easy steps

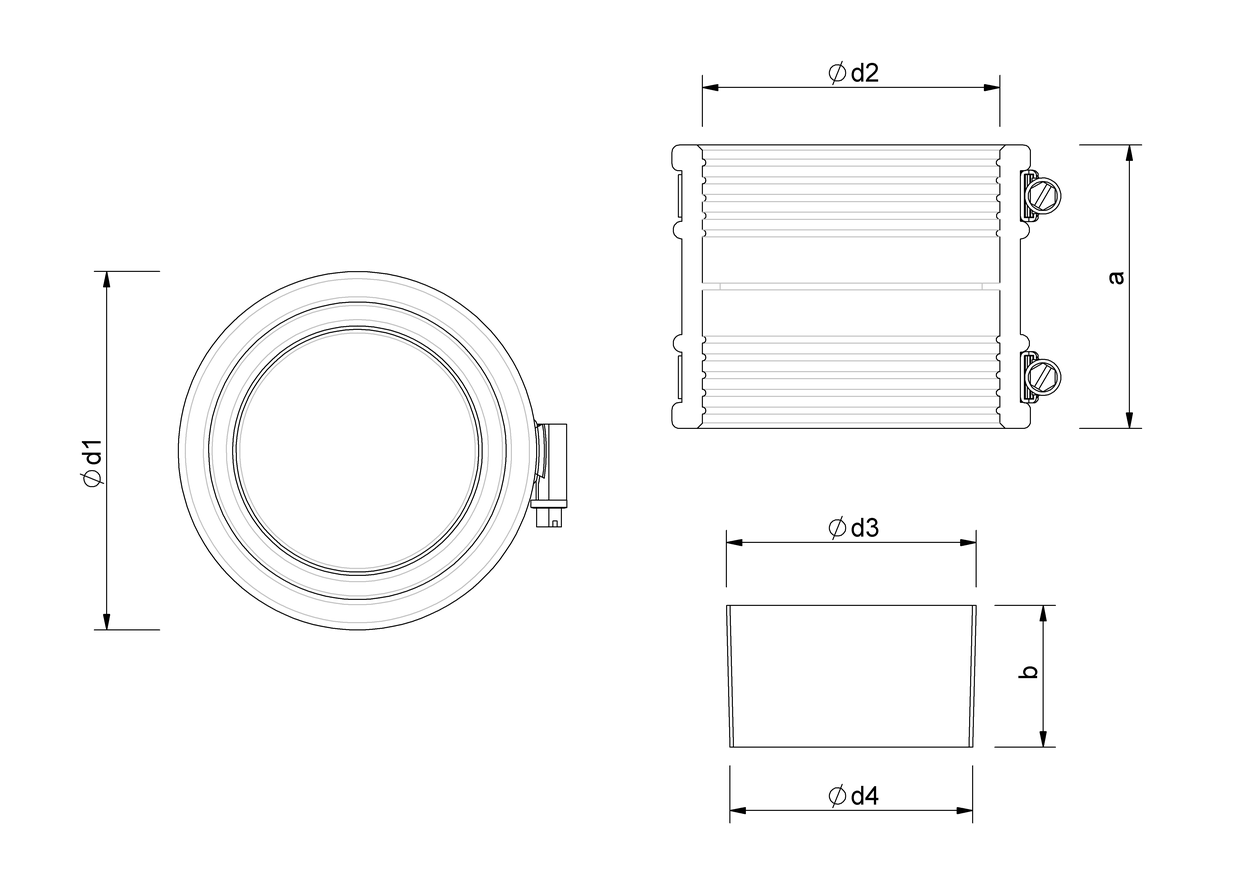

Technical drawing
| Size DN | a (mm) | b (mm) | d1 (mm) | d2 (mm) | d3 (mm) | d4 (mm) |
|---|---|---|---|---|---|---|
| 56 | 90 | 40 | 89 | 66 | 51 | 49 |
| 70 | 80 | 40 | 101 | 84 | 71 | 69 |
| Size DN | a (mm) | b (mm) | d1 (mm) | d2 (mm) | d3 (mm) | d4 (mm) |
|---|---|---|---|---|---|---|
| 56 | 90 | 40 | 89 | 66 | 51 | 49 |
| 70 | 80 | 40 | 101 | 84 | 71 | 69 |
