SitaDrain Terra
Drainage
Attributes
Article number
205050
Grate design
Grating
Width
500 mm
Length
500 mm
Height
25 mm
Material
Galvanised steel
Load rating class
L 15 - max. 1.5 to / 15 kN
Material class
Euroclass A1 /A1 non-flammable
Height adjustment min (mm)
70 mm
Height setting, max (mm)
110 mm

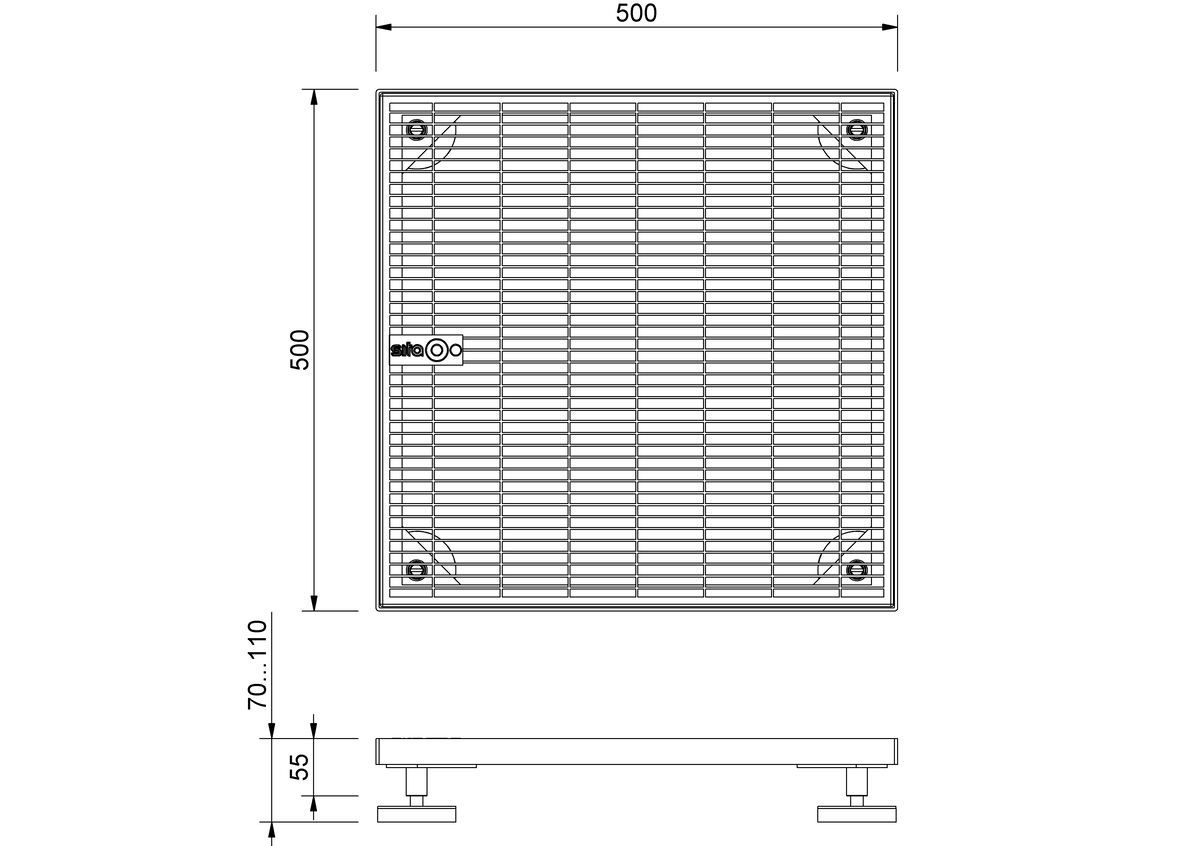

Technical drawing
The SitaDrain Terra is used as an inspection shaft on terraces and green roofs. Its four infinitely height-adjustable rubber feet give it a secure hold, allowing it to be set to any height level.
+
