SitaCarport DN 95
Carport outlet
Attributes
Standards
DIN EN 1253-2
Article number
292829
Execution
With zinc closure cap
connection
Thermoplan TL pearl white-sleeve
External diameter OD (mm)
93 mm
Opening/Core borehole (mm)
128 mm
Support length
215 mm
Pot height
35 mm
Pot inner diameter
90 mm
Temperature resistance, min.
-20 °C
Temperature resistance, max.
80 °C
Material class
Euroclass E / B2 normal flammability

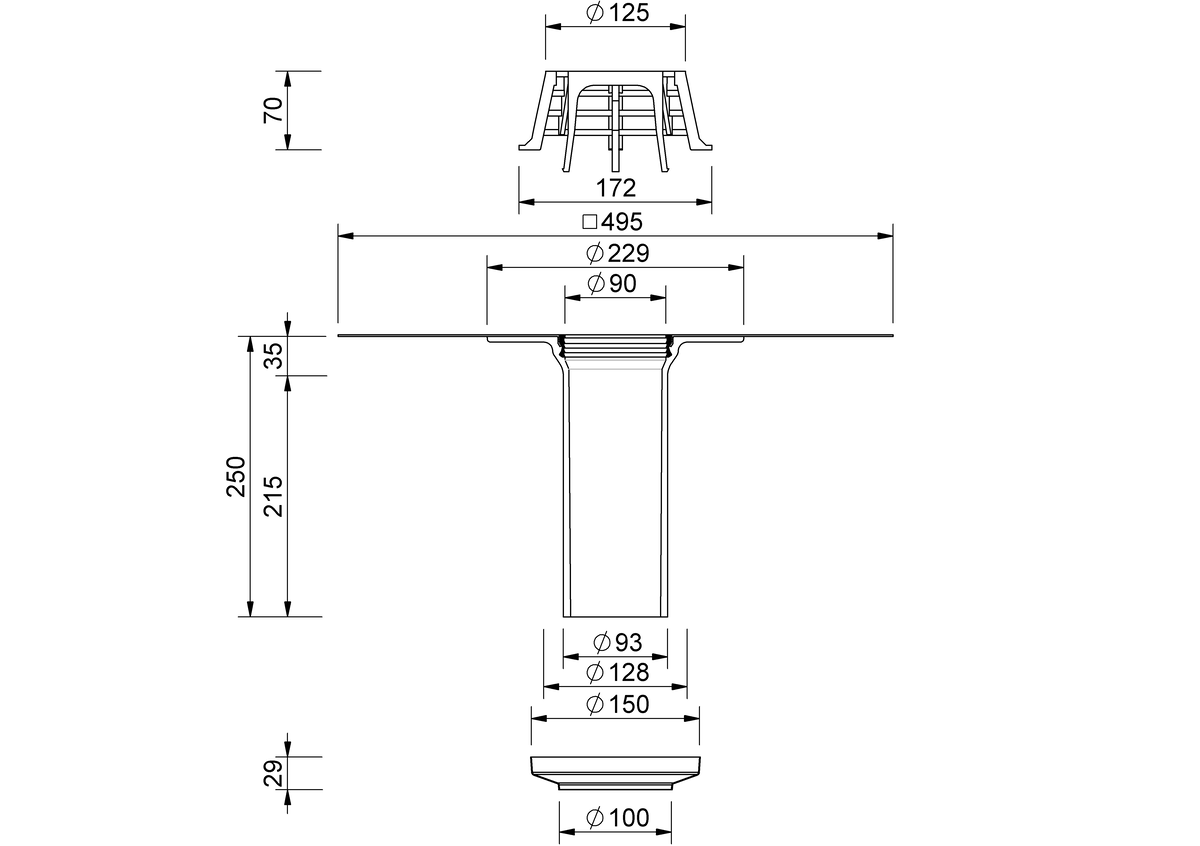

Technical drawing

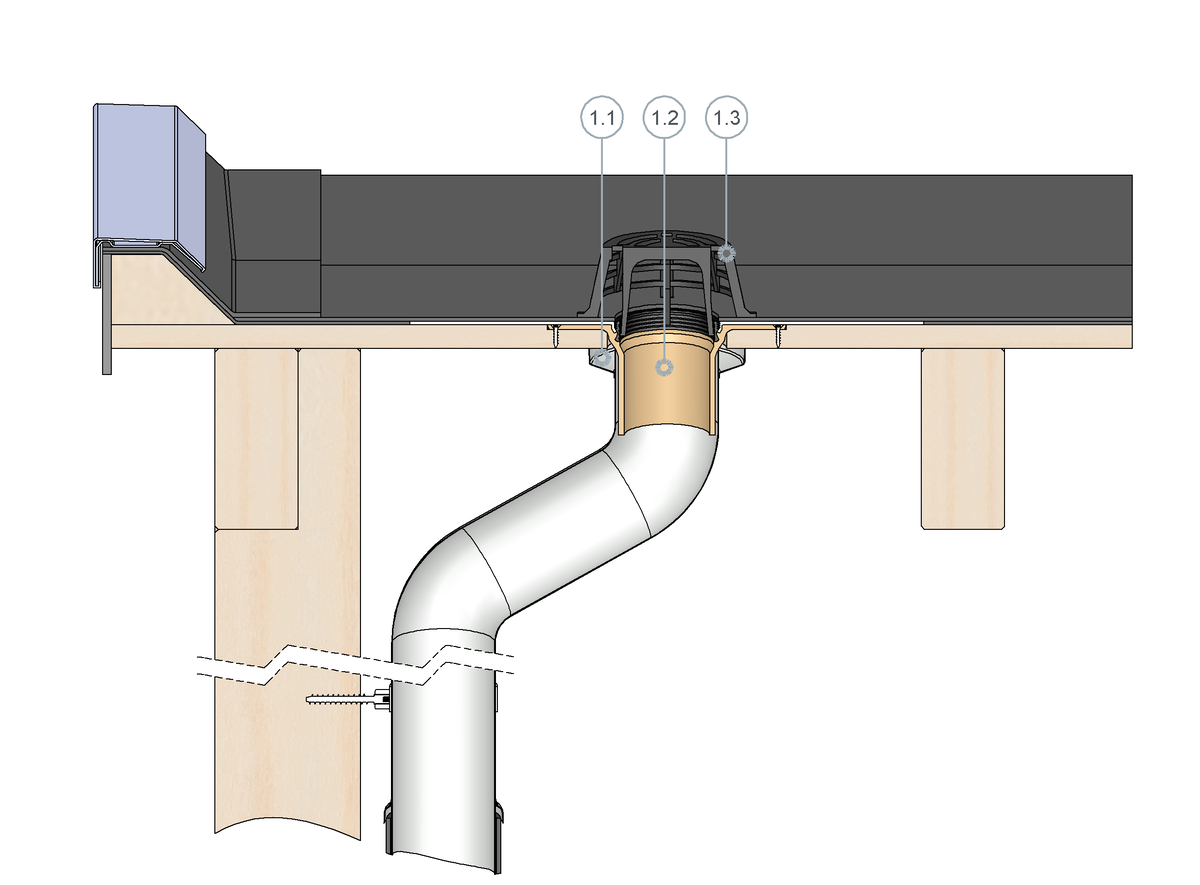

If you want to drain a carport properly, a clear view of the underside can become a challenge. The use of a SitaCarport outlet tailored to the available installation combines reliable rainwater drainage with an attractive appearance.
