SitaSani® Disc DN 110
Refurbishment outlet
Attributes
Article number
106410
connection
PVC soft-sleeve
Execution
110 mm
Material
Polyurethane
External diameter OD (mm)
110 mm
Colour
Yellow
Support length
255 mm
Finish
Smooth
Pot height
45 mm
Temperature resistance, max.
80 °C
Pot inner diameter
108 mm
Temperature resistance, min.
-40 °C
Material class
Euroclass E / B2 normal flammability
Bridging of thermal insulation min. (mm)
90 mm
Bridging of thermal insulation max. (mm)
230 mm

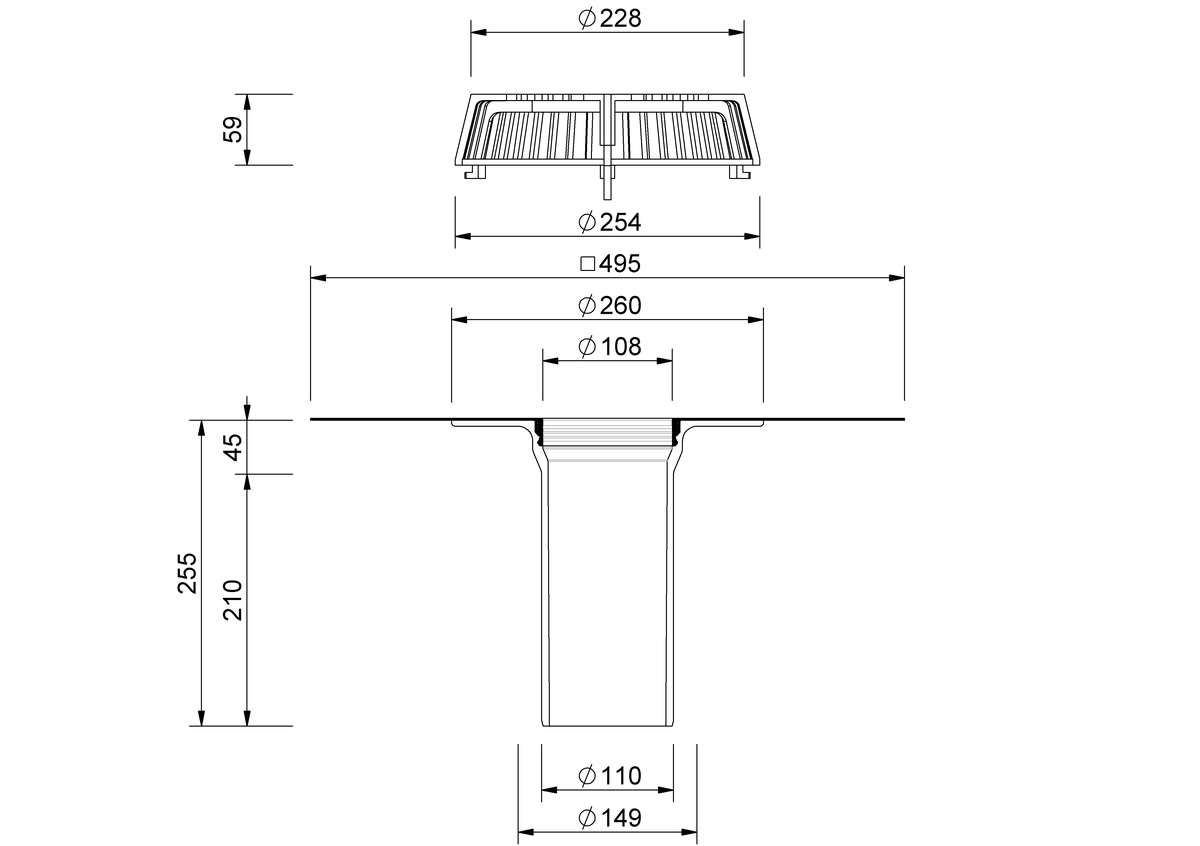

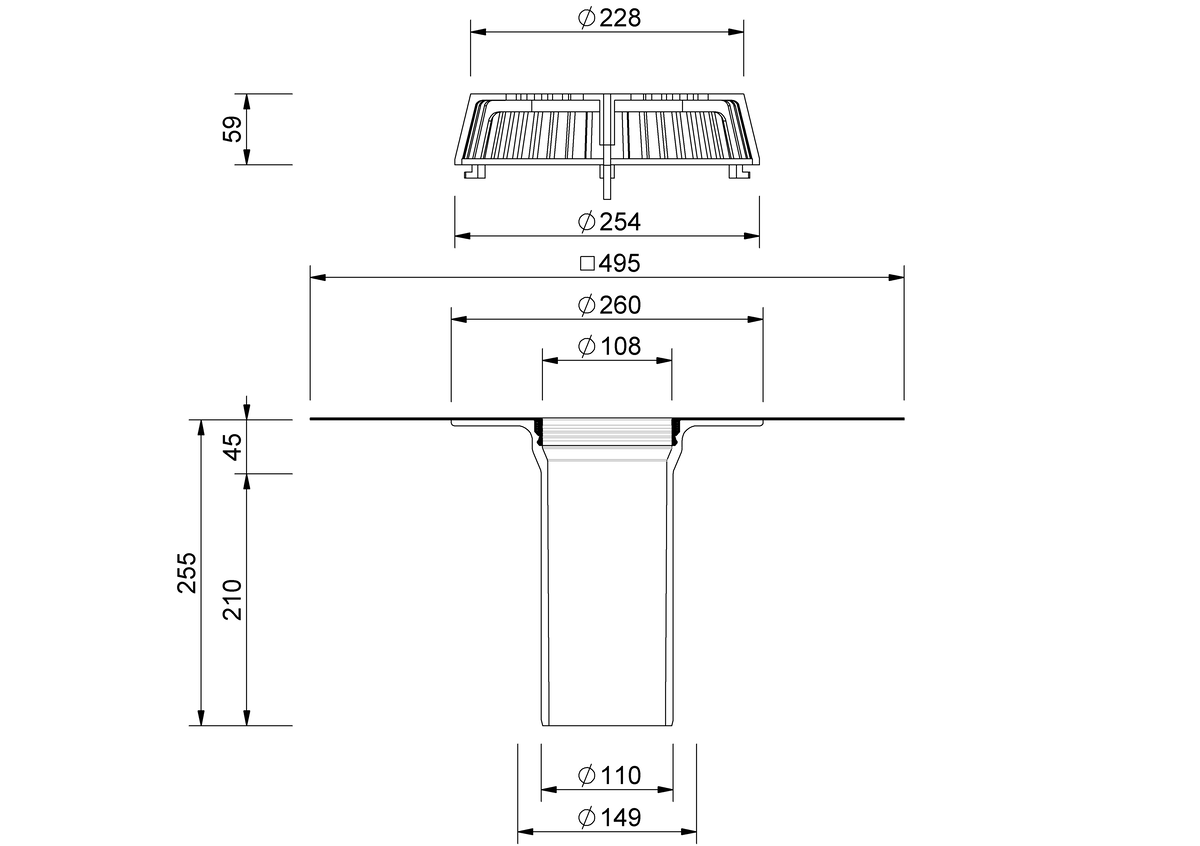

Technical drawing
The problem solver even for difficult cases. The SitaSani® Disc series offers a simple and ingenious solution for surfaces to be renovated with angled outlets. To prevent the horizontal drainage outlet of the existing outlet from being sealed by seals, the SitaSani® Disc is supplied in two parts so that the old outlet remains completely untouched and thus the full drainage volume can be retained. Multi-compatible for almost any roof outlet make, the combinations in this series solve almost any renovation task. The permanently integrated and additionally fixed customised connection sleeves provide a homogeneous connection to the roof waterproofing on two levels.
