SitaSani® Disc DN 160
Refurbishment outlet
Attributes
Article number
107100
connection
bitumen-sleeve
Execution
160 mm
Temperature resistance, min.
-40 °C
Temperature resistance, max.
80 °C
Material class
Euroclass E / B2 normal flammability
Backflow safe for refurbishing internal diameters from– to (mm) with lip sealing ring
162 -210

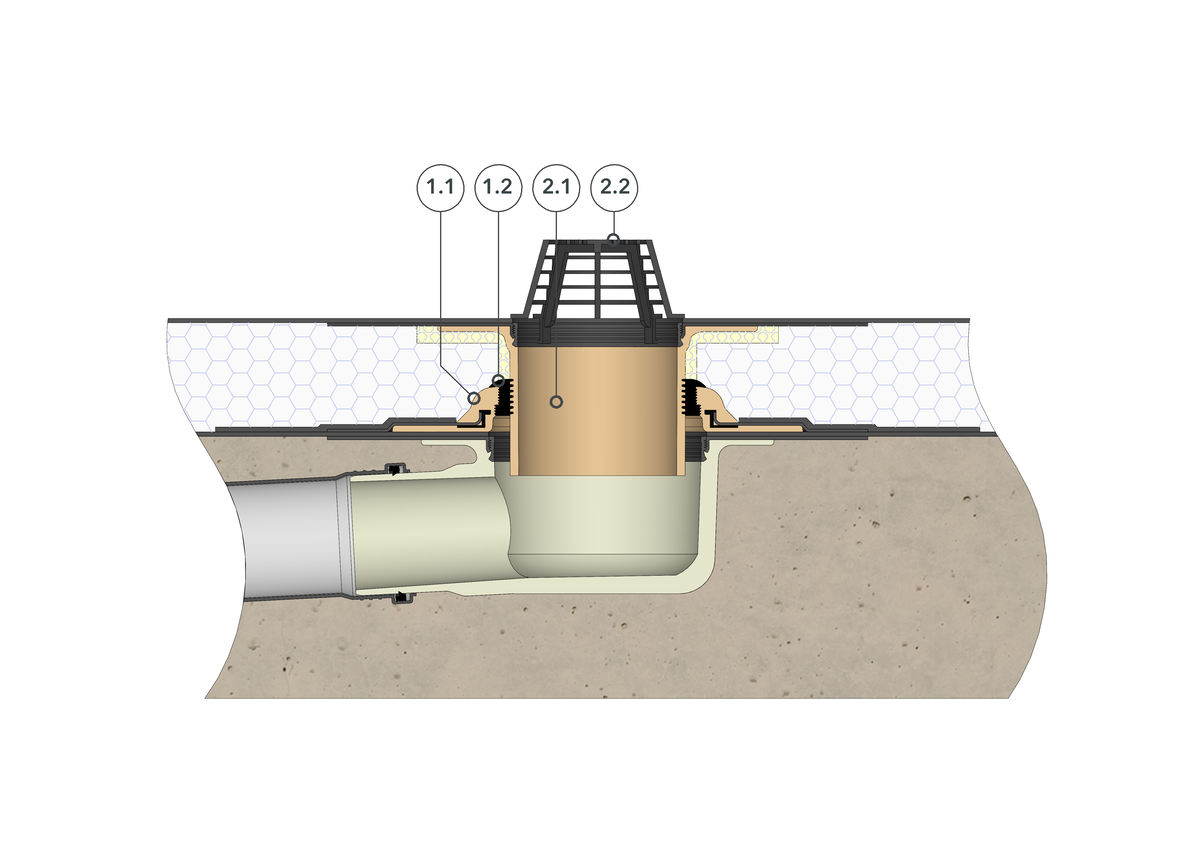

The problem solver even for difficult cases. The SitaSani® Disc series offers a simple and ingenious solution for surfaces to be renovated with angled outlets. To prevent the horizontal drainage outlet of the existing outlet from being sealed by seals, the SitaSani® Disc is supplied in two parts so that the old outlet remains completely untouched and thus the full drainage volume can be retained. Multi-compatible for almost any roof outlet make, the combinations in this series solve almost any renovation task. The permanently integrated and additionally fixed customised connection sleeves provide a homogeneous connection to the roof waterproofing on two levels.
