SitaSani® DN 125
Refurbishment outlet
Attributes
Article number
103705
connection
Alkortec-sleeve
Standards
DIN EN 1253-2
Execution
550 mm
External diameter OD (mm)
125 mm
Support length
533 mm
Pot height
17 mm
Pot inner diameter
108 mm
Temperature resistance, min.
-40 °C
Temperature resistance, max.
80 °C
Material class
Euroclass E / B2 normal flammability
Backflow safe for refurbishing internal diameters from– to (mm) with lip sealing ring
134 - 144
Backflow safe for refurbishing internal diameters from– to (mm) with profiled sealing ring
140 - 168

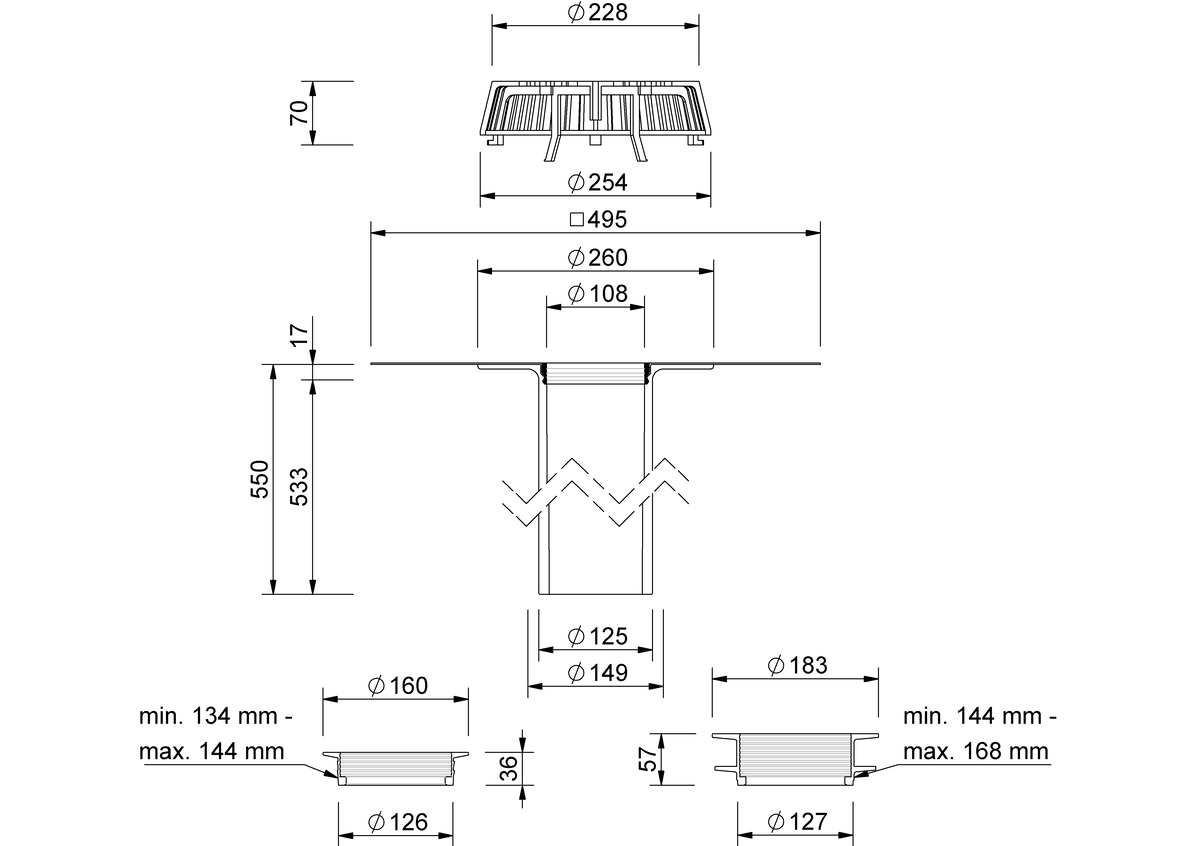

Technical drawing
The problem-solver with long spigot and sealing ring. This compensates for the existing waterproofing and insulation layers to the roof outlet or downpipe in place. Multi-compatible for almost any make of roof outlet, the roof outlets of this series can solve almost any refurbishment task. The various sealing rings are used to match the existing internal diameters. The foamed-in and additionally fixed connecting sleeve of choice offers a homogeneous connection to the roofing membrane.
