SitaSani® DN 70
Refurbishment outlet
Attributes
Standards
DIN EN 1253-2
Article number
103650
connection
Evalon V slate grey-sleeve
Execution
255 mm
External diameter OD (mm)
75 mm
Support length
211 mm
Pot height
44 mm
Pot inner diameter
90 mm
Temperature resistance, min.
-40 °C
Temperature resistance, max.
80 °C
Material class
Euroclass E / B2 normal flammability
Backflow safe for refurbishing internal diameters from– to (mm) with lip sealing ring
82 - 103
Backflow safe for refurbishing internal diameters from– to (mm) with profiled sealing ring
-

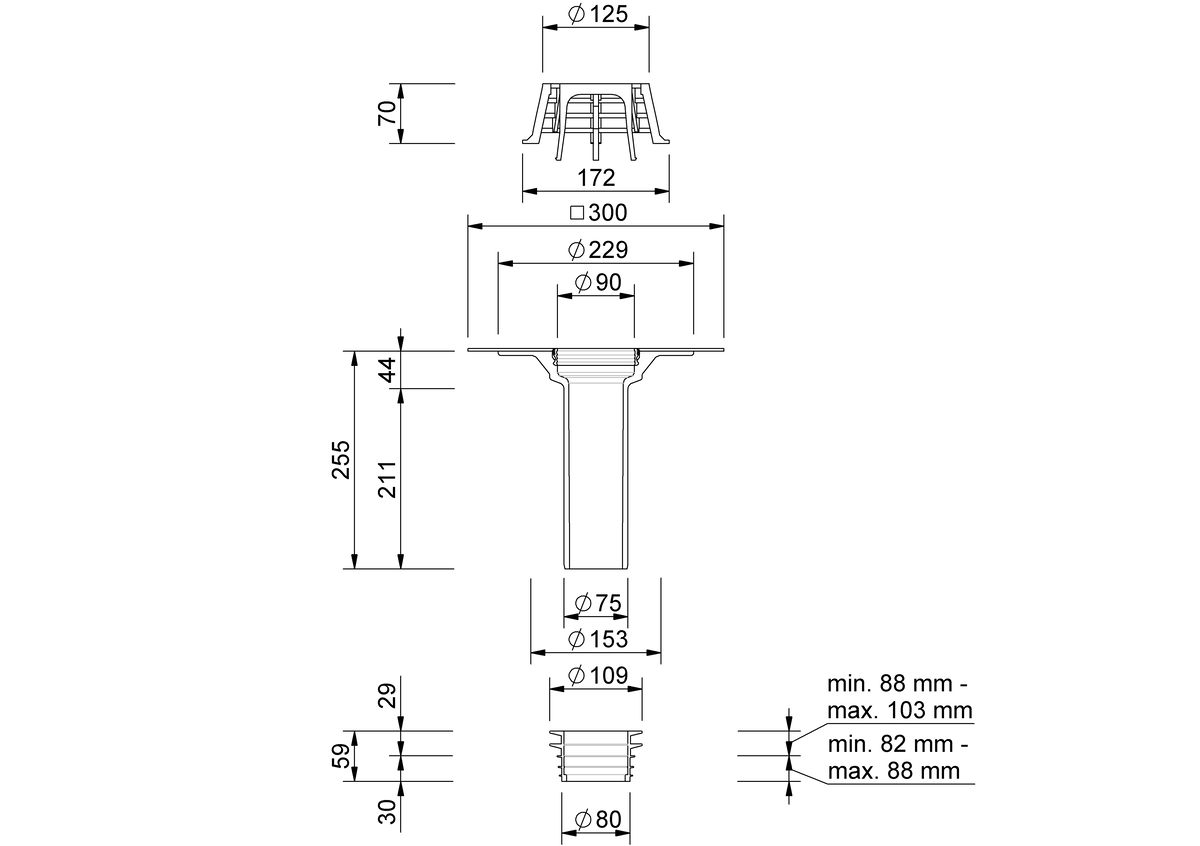

Technical drawing
The problem-solver with long spigot and sealing ring. This compensates for the existing waterproofing and insulation layers to the roof outlet or downpipe in place. Multi-compatible for almost any make of roof outlet, the roof outlets of this series can solve almost any refurbishment task. The various sealing rings are used to match the existing internal diameters. The foamed-in and additionally fixed connecting sleeve of choice offers a homogeneous connection to the roofing membrane.
+
