SitaCompact Fluid

Grating

Foto_S_SitaCompact_Fluid_Aufsatz_6mm.tif

Products
Accessories
SitaCompact Fluid
199020

Attributes

Article number

199020

Compatibility

SitaCompact Fluid

Material

ABS (acrylonitrile butadiene styrene)

Colour

Grey

Height

4 mm

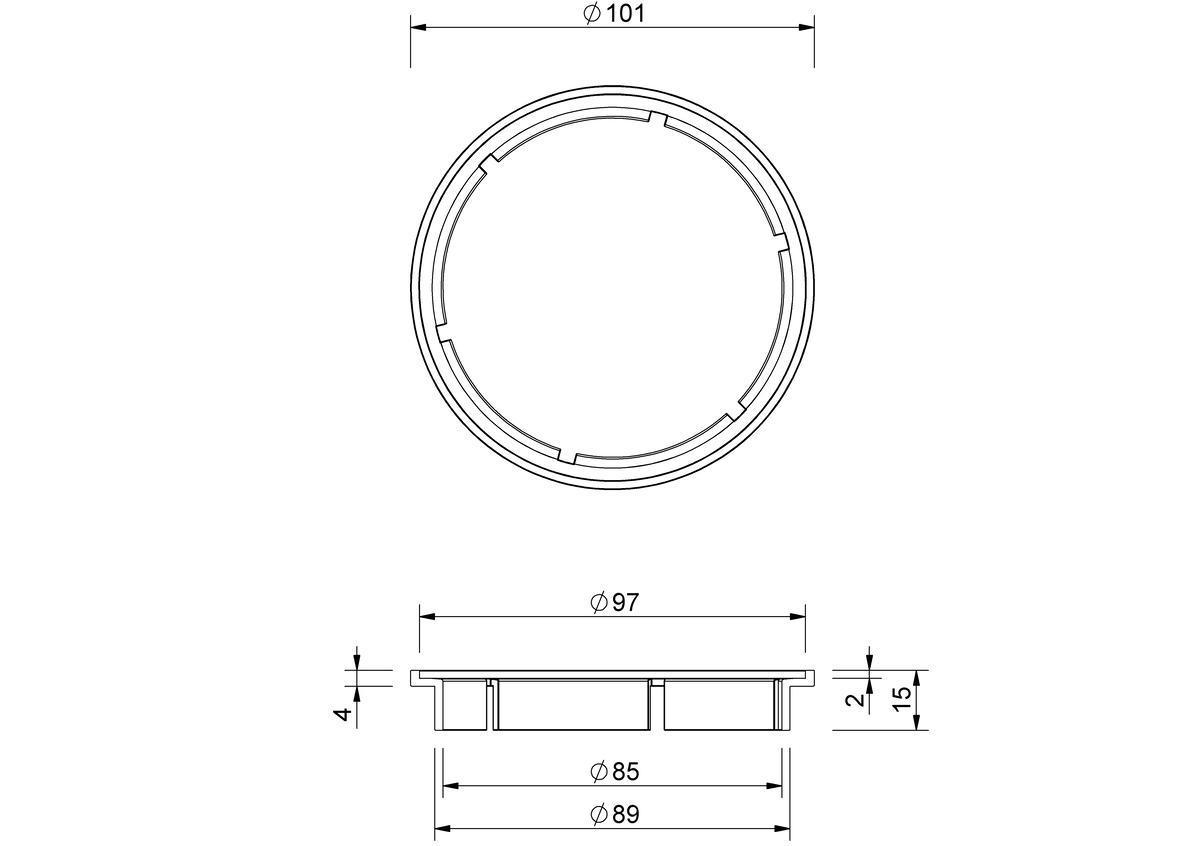

Technical drawing

Invitations to tender

SitaCompact Fluid grating 4 mm, made of ABS (acrylonitrile butadiene styrene), for draining rainwater from the top layer to the outlet, for top layers of 4 mm, supply and install to professional standards.

Installation Examples

SitaCompact Fluid linear drainage for balconies with liquid applied waterproofing and slab paving

1 SitaPipe Edelstahl pipe
2 SitaAttika cladding cover plate
3 SitaCompact Fluid grating
4 SitaCompact Fluid
5 SitaCompact Fluid flat grate
6 SitaPipe Edelstahl pipe clamp
7 SitaCompact Fluid height compensation piece
8 SitaCompact Fluid pipe holder

Roof structure 1 with liquid applied waterproofing according to the general rules of engineering with:

Sealing with liquid applied waterproofing
Substructure

Roof structure 2 with liquid applied waterproofing according to the general rules of engineering with:

Slab paving
Protective mat
Sealing with liquid applied waterproofing
Substructure

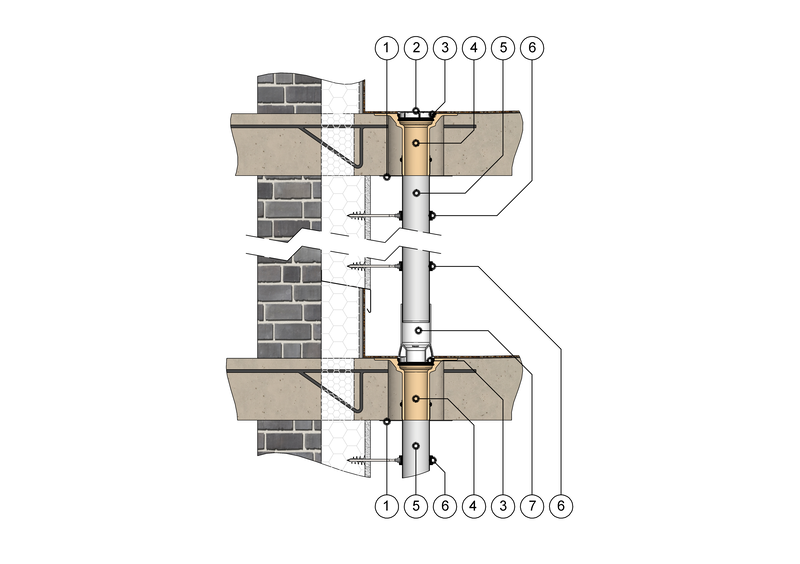

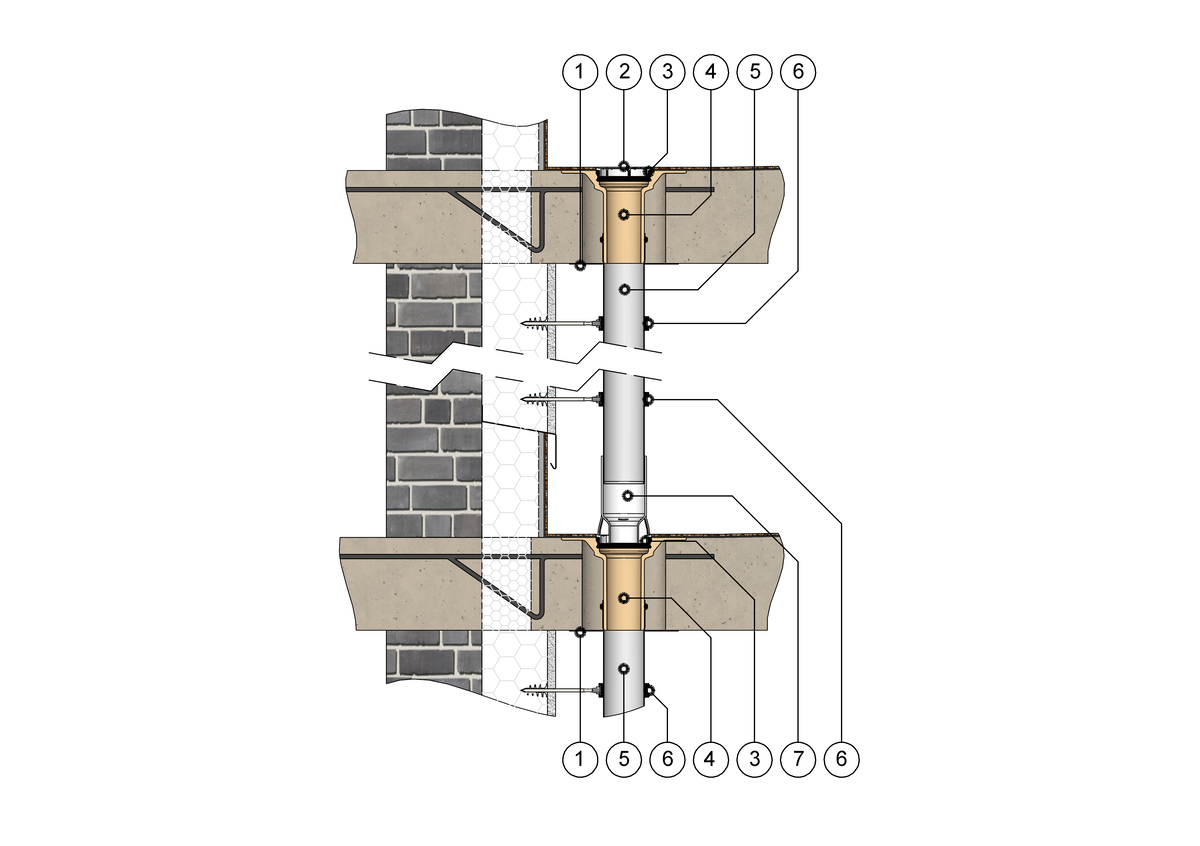

SitaCompact Fluid linear drainage for balconies with liquid applied waterproofing

1 SitaAttika cladding cover plate
2 SitaCompact Fluid flat grate
3 SitaCompact Fluid grating
4 SitaCompact Fluid
5 SitaPipe Edelstahl pipe
6 SitaPipe Edelstahl pipe clamp
7 SitaCompact Fluid pipe holder

Roof structure 1 & 2 with liquid applied waterproofing according to the general rules of engineering with:

Sealing with liquid applied waterproofing
Substructure
