SitaCompact Fluid

Flat grate

Products
Accessories
SitaCompact Fluid
199022

Attributes

Article number

199022

Compatibility

SitaCompact Fluid grating

Material

Stainless steel

Material number

1.4301

Colour

Silver

Finish

Brushed

Height

18 mm

Material class

Euroclass A1 /A1 non-flammable

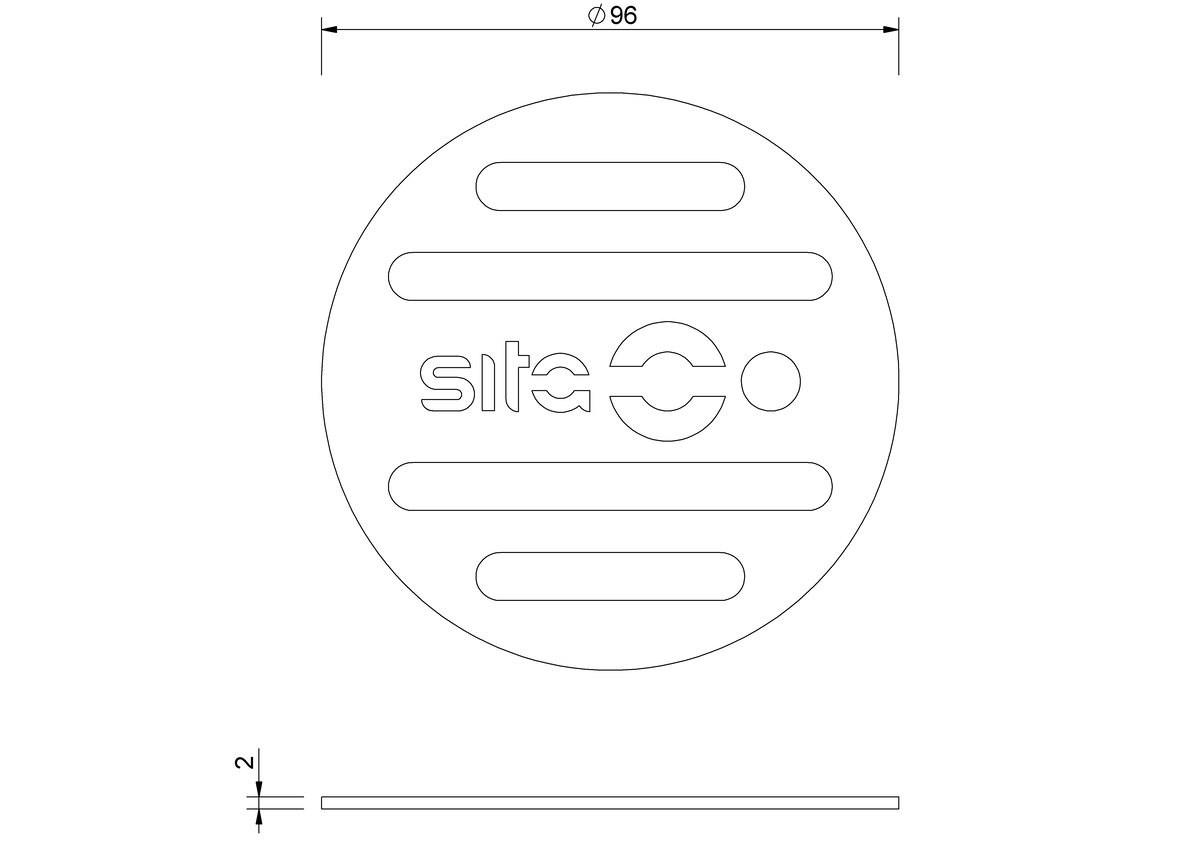

Technical drawing

Invitations to tender

SitaCompact Fluid flat grate, made of rust-proof stainless steel, material number 1.4301, to be used with the SitaCompact Fluid holder, for liquid applied waterproofing, supply and install to professional standards.

Installation Examples

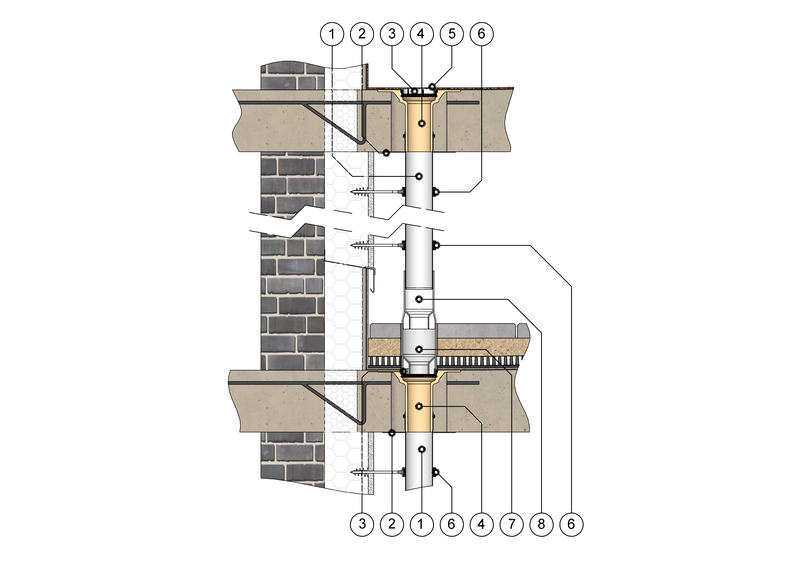

SitaCompact Fluid linear drainage for balconies with liquid applied waterproofing and slab paving

1 SitaPipe Edelstahl pipe
2 SitaAttika cladding cover plate
3 SitaCompact Fluid grating
4 SitaCompact Fluid
5 SitaCompact Fluid flat grate
6 SitaPipe Edelstahl pipe clamp
7 SitaCompact Fluid height compensation piece
8 SitaCompact Fluid pipe holder

Roof structure 1 with liquid applied waterproofing according to the general rules of engineering with:

Sealing with liquid applied waterproofing
Substructure

Roof structure 2 with liquid applied waterproofing according to the general rules of engineering with:

Slab paving
Protective mat
Sealing with liquid applied waterproofing
Substructure

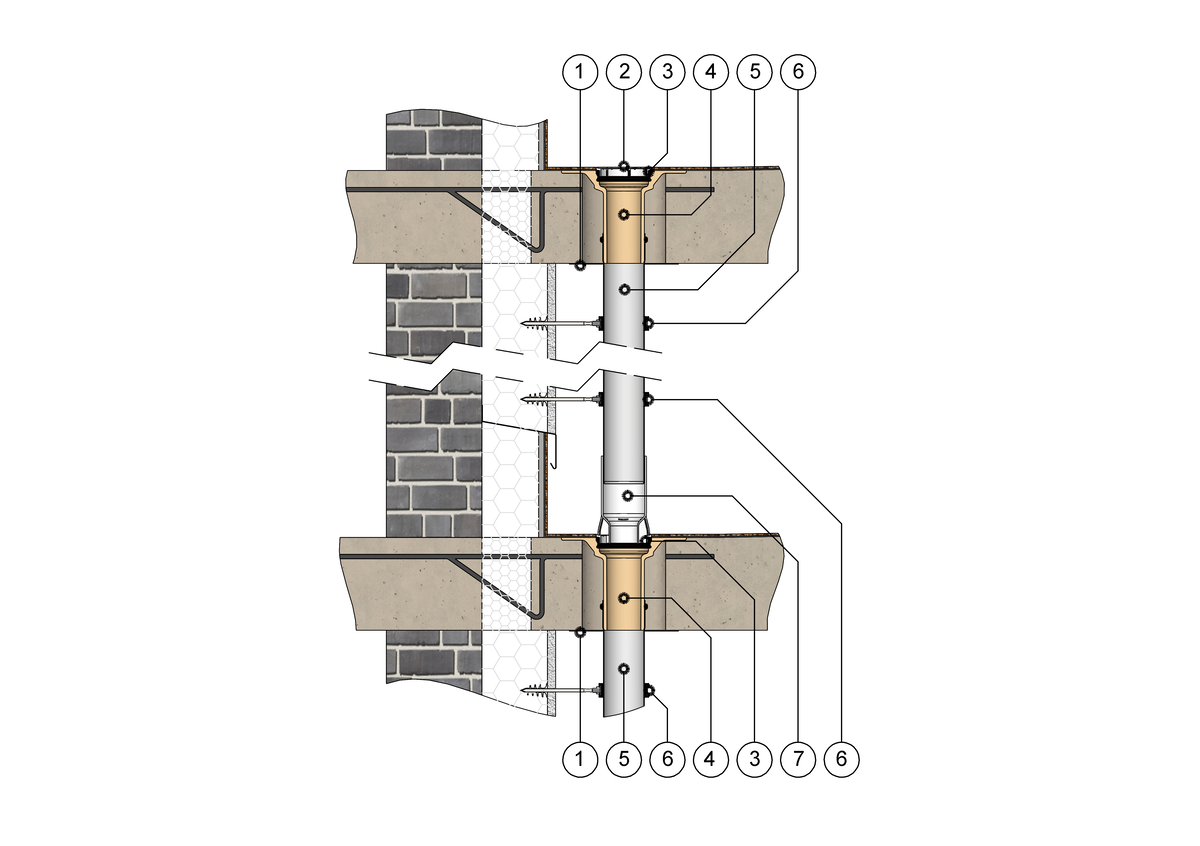

SitaCompact Fluid linear drainage for balconies with liquid applied waterproofing

1 SitaAttika cladding cover plate
2 SitaCompact Fluid flat grate
3 SitaCompact Fluid grating
4 SitaCompact Fluid
5 SitaPipe Edelstahl pipe
6 SitaPipe Edelstahl pipe clamp
7 SitaCompact Fluid pipe holder

Roof structure 1 & 2 with liquid applied waterproofing according to the general rules of engineering with:

Sealing with liquid applied waterproofing
Substructure
