SitaDSS Multi
Insulating body for rainwater outlet
Attributes
Article number
429003
Compatibility
SitaDSS Multi
Material
Cellular glass
Colour
Black
Length
450 mm
Width
450 mm
Height
120 mm
Temperature resistance, max.
1000 °C
Rated heat conductivity
0.046 W/(m*K)
Material class
Euroclass A1 /A1 non-flammable

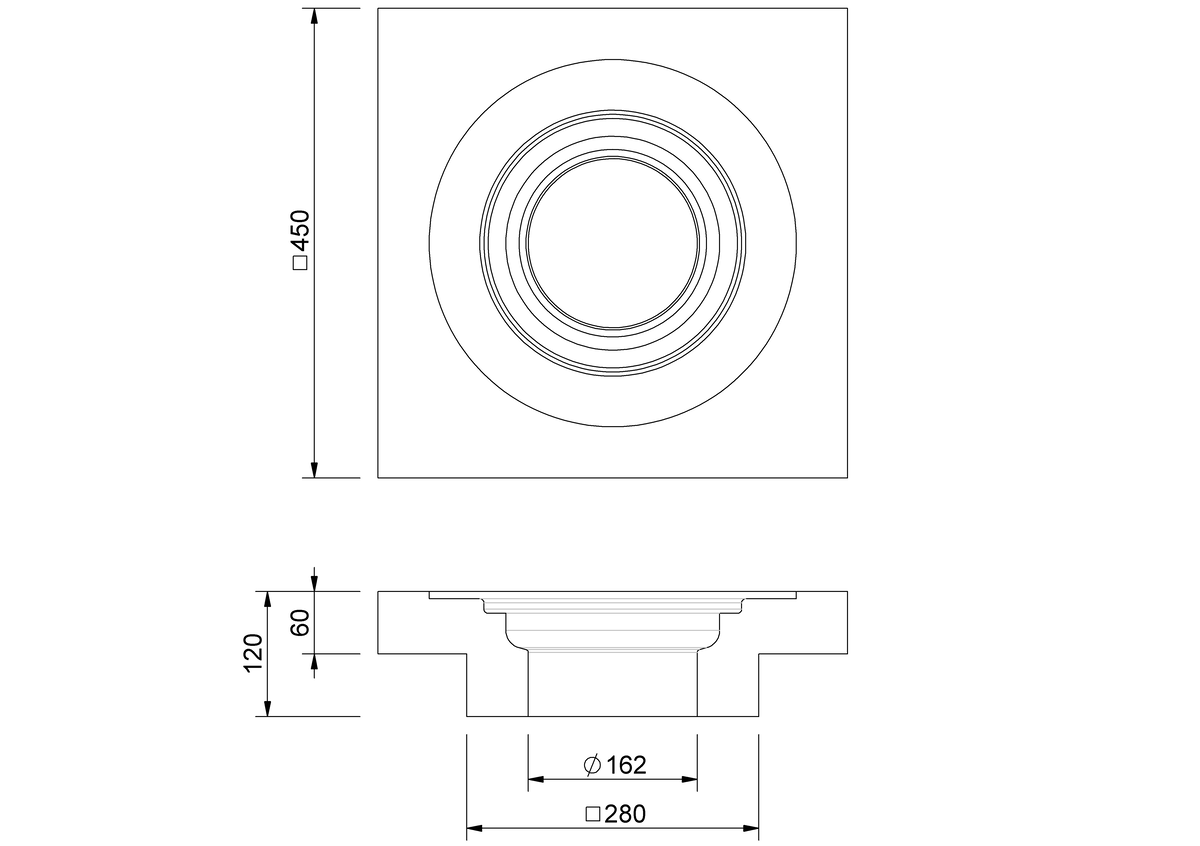

Technical drawing

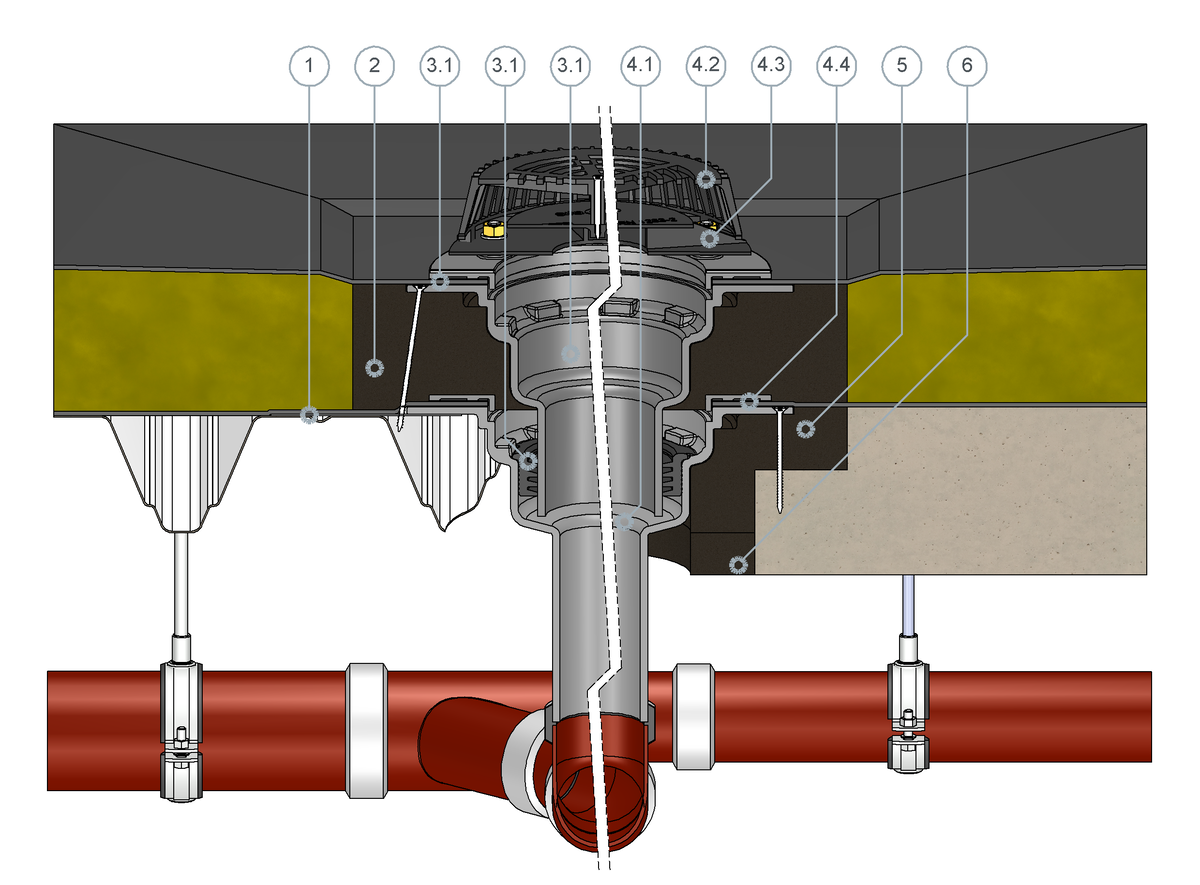

SitaMulti foam glass insulation blocks complement the system wherever thermal insulation, fire protection, and precise integration into the concrete slab are required. The Gully insulation block can be used as permanent formwork when cast in concrete, while the leveling ring flexibly compensates for varying concrete thicknesses. The SitaMulti insulation block for elevation elements also ensures proper thermal insulation and secure support for the elevation element. The result is a well-engineered system solution—watertight, vapor-tight, non-combustible, and pressure-resistant.
