SitaMulti

Insulating body for compensating ring

Products
SitaMulti
compensating ring
E409004

Attributes

Article number

E409004

Compatibility

SitaMulti

Colour

Black

Length

280 mm

Width

280 mm

Height

40 mm

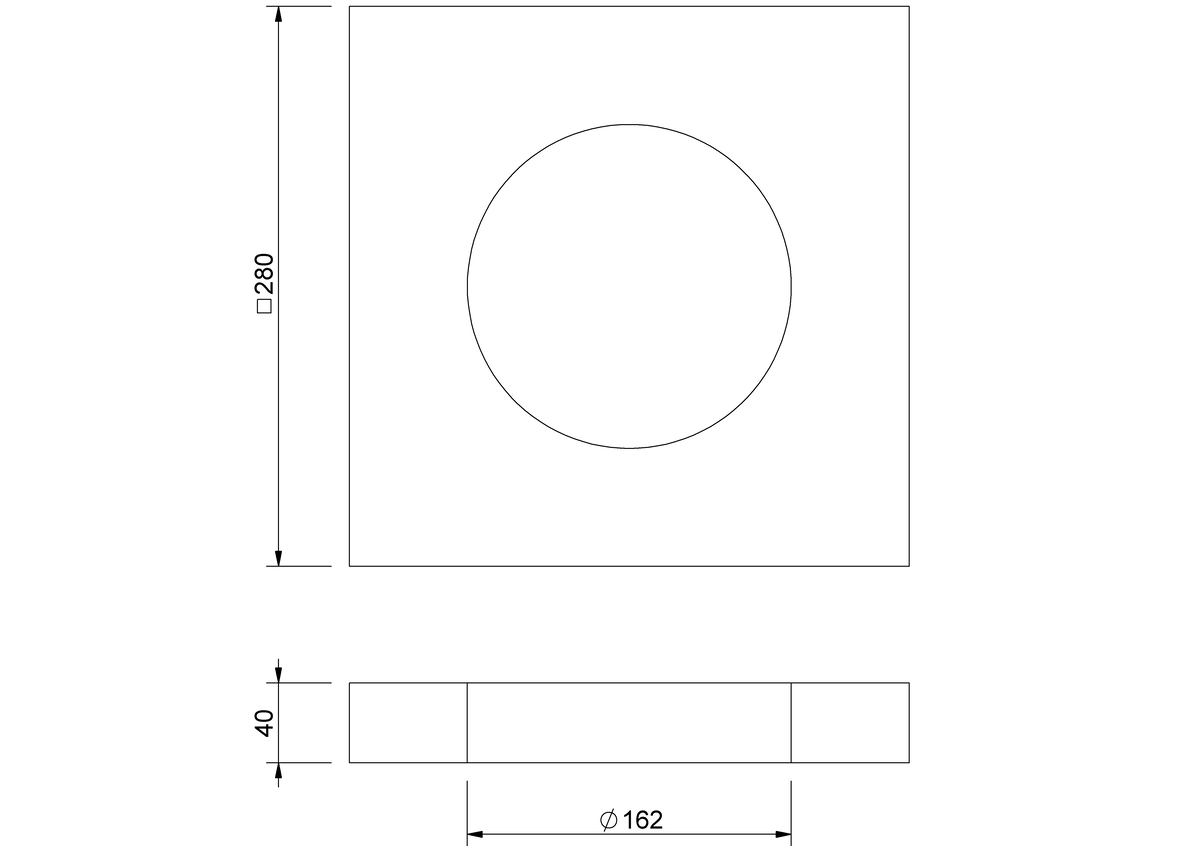

Technical drawing

SitaMulti compensating ring for insulating body for outlet, made of foam glass, WLG 050. For thermal insulation for the SitaMulti in the concrete ceiling at heights over 120 mm.

Invitations to tender

SitaMulti compensating ring for insulating body for outlet, made of foam glass, WLG 050, height 40 mm. To compensate concrete ceilings higher than 120 mm, supply and install to professional standards.

Installation Examples

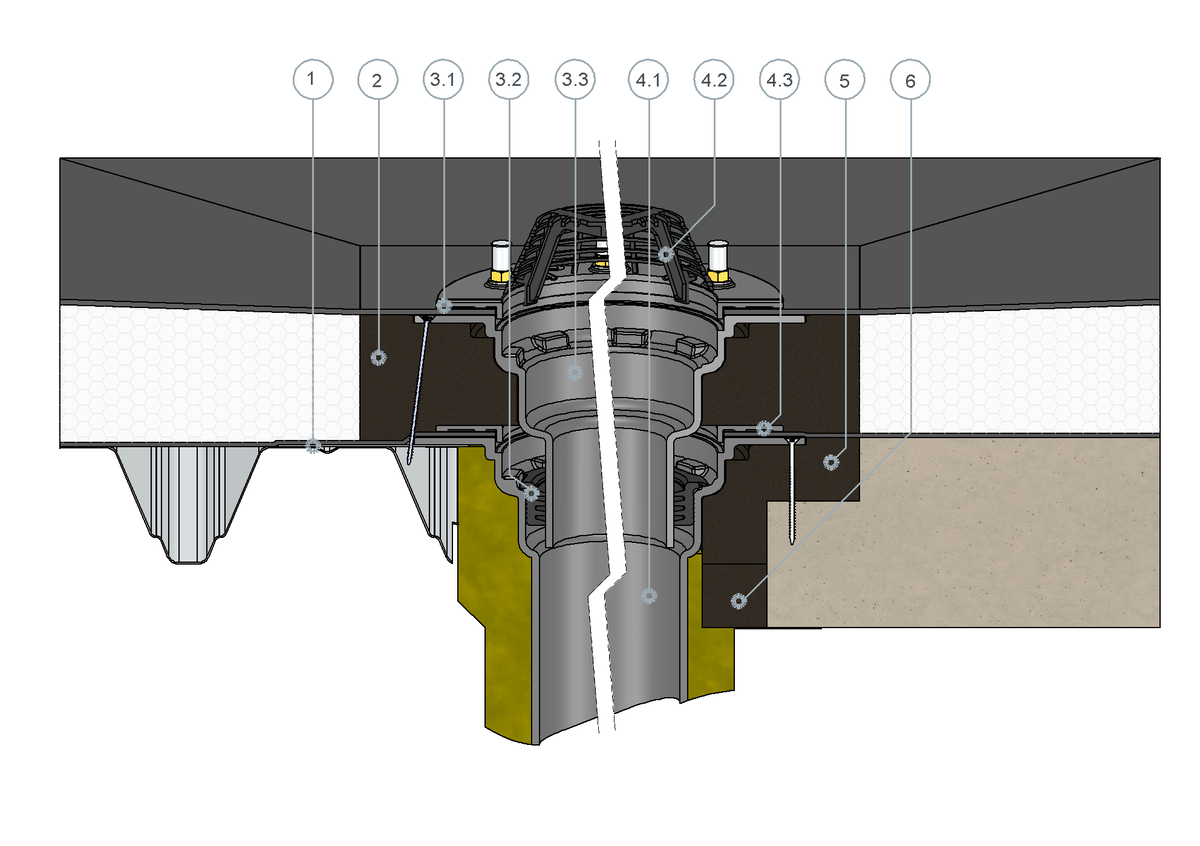

SitaMulti in a ventilated roof structure

1 SitaMore reinforcement plate
2 SitaMulti insulating body for extension unit

SitaMulti extension unit, consisting of:
3.1 Screw-on flange, nuts, washers and sealing sleeves
3.2 Sealing ring
3.3 Base body

SitaMulti consisting of:
4.1 Base body
4.2 Dome grate
4.3 Screw-on flange, nuts, washers and sealing sleeves

5 SitaMulti insulating body for outlet
6 SitaMulti insulating body compensating ring

Non-ventilated roof structure to the general rules of engineering with:

Waterproof membrane
Thermal insulation
Vapour barrier
Substructure

SitaMulti with SitaMulti grating frame in a non-ventilated roof structure

1 SitaMulti insulating body for extension unit

SitaMulti grating frame, consisting of:
2.1 Support ring
2.2 Grating with bolted end grate

3 SitaMulti height compensation piece

SitaMulti extension unit, consisting of:
4.1 Base body
4.2 Screw-on flange, nuts, washers and sealing sleeves
4.3 Sealing ring

SitaMulti consisting of:
5.1 Screw-on flange, nuts, washers and sealing sleeves
5.2 Base body

6 SitaMulti insulating body compensating ring
7 SitaMulti insulating body for outlet

Non-ventilated roof structure with slab paving on support pads to the general rules of engineering with:

Slab paving
Support pads
Protective mat
Sealing
Thermal insulation
Sloping screed
Vapour barrier
Substructure
