SitaMulti

1 SitaMore reinforcement plate
2 SitaMulti insulating body for extension unit


SitaMulti extension unit, consisting of:
3.1 Screw-on flange, nuts, washers and sealing sleeves
3.2 Sealing ring
3.3 Base body


SitaMulti consisting of:
4.1 Base body
4.2 Dome grate
4.3 Screw-on flange, nuts, washers and sealing sleeves

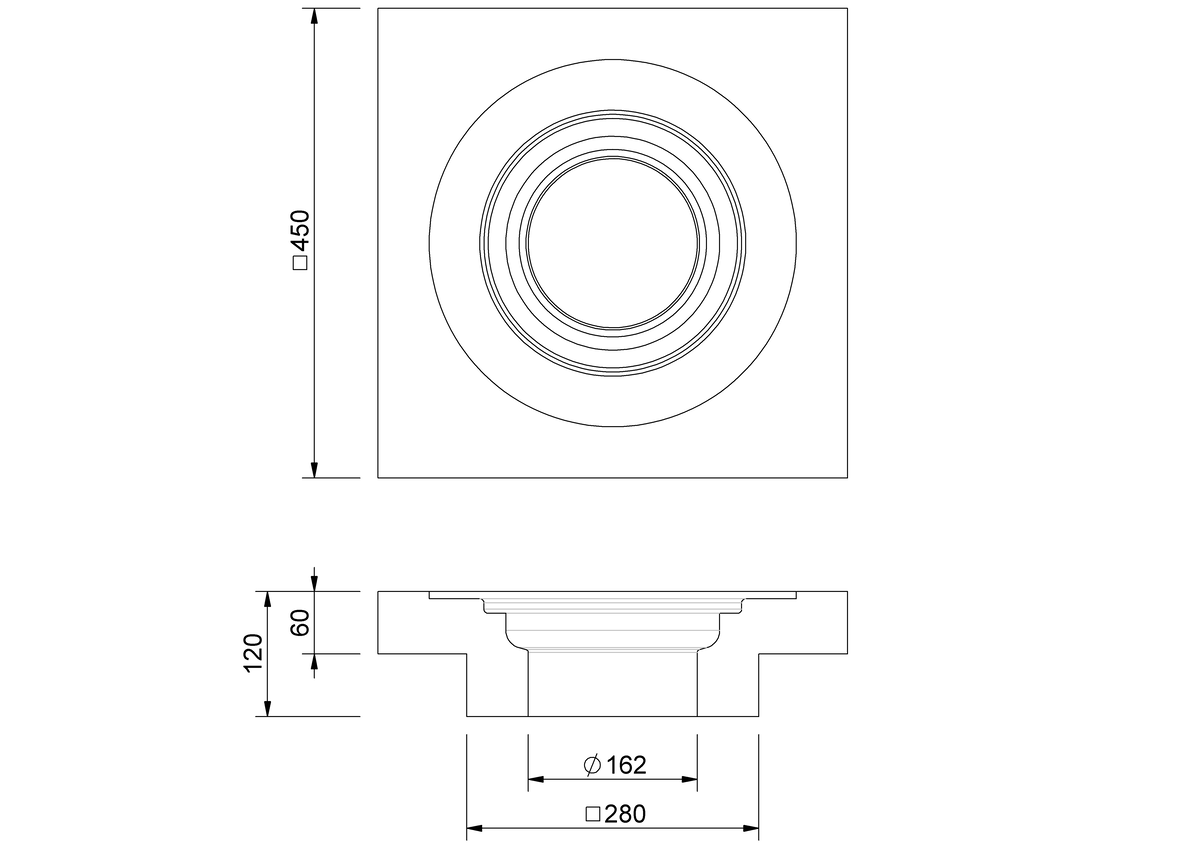

5 SitaMulti insulating body for outlet
6 SitaMulti insulating body compensating ring

1 SitaMulti insulating body for extension unit


SitaMulti grating frame, consisting of:
2.1 Support ring
2.2 Grating with bolted end grate


3 SitaMulti height compensation piece


SitaMulti extension unit, consisting of:
4.1 Base body
4.2 Screw-on flange, nuts, washers and sealing sleeves
4.3 Sealing ring


SitaMulti consisting of:
5.1 Screw-on flange, nuts, washers and sealing sleeves
5.2 Base body


6 SitaMulti insulating body compensating ring
7 SitaMulti insulating body for outlet
