SitaPipe Stainless Steel DN 200

bend

IC_SitaPipe_Bogen.tif

Foto_S_SitaPipe_Edelstahl_Bogen.tif

Attributes

Article number

70041520

connection

DN 200

Standards

DIN EN 1124

External diameter OD (mm)

200 mm

Material

Rust-proof stainless steel

Material number

1.4404

Colour

Silver

Finish

Smooth

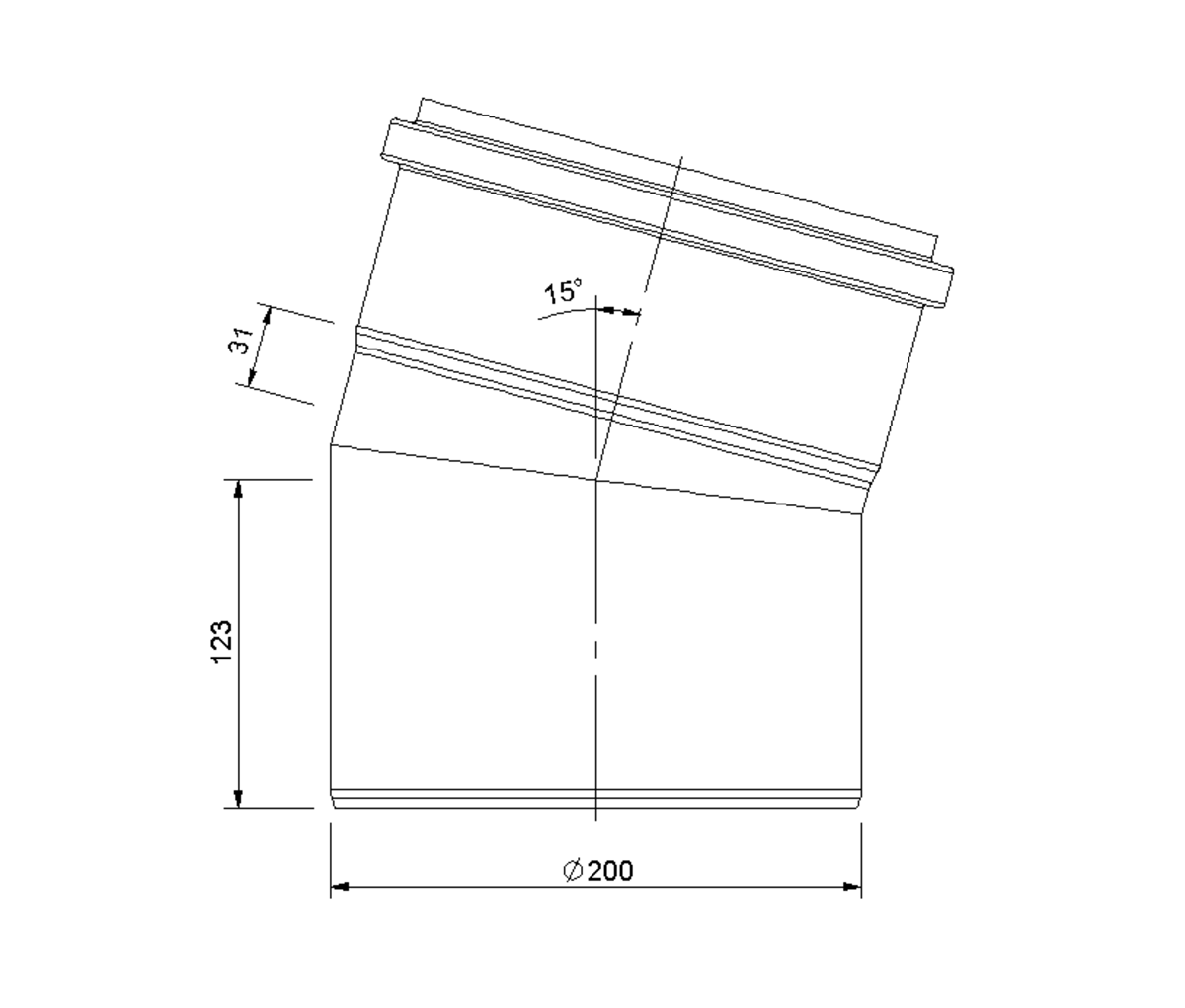

Technical drawing

Due to the low weight, the pipe can be routed quickly and effectively by a single person without any aids. The well-known and popular socket system is valued by craftspeople and planners in equal measure. The timeless appearance guarantees an attractive appearance.

Invitations to tender Installation Examples

SitaPipe Edelstahl pipe at bottom in thermal insulation composite system

1 SitaPipe Stainless Steel cleaning pipe
2 SitaPipe Stainless Steel transition piece eccentric
3 SitaPipe Stainless Steel pipe
4 SitaPipe Stainless Steel pipe clamp
5 SitaPipe Stainless Steel safety clamp

Wall structure from the inside to the outside to the general rules of engineering with:

Finish plaster and paint
Thermal insulation
Wall structure

SitaVasant with dome grate in a non-ventilated roof structure

1 SitaPipe Edelstahl pipe
2 SitaPipe Edelstahl pipe clamp
3 SitaPipe Edelstahl safety clamp
4 SitaPipe Edelstahl bend
5 SitaAttika cladding cover plate
6 SitaMore sealing sleeve

SitaVasant consisting of:
7.1 Pipe
7.2 Vapour barrier plate
7.3 Safety clamp
7.4 Gully

8 SitaVasant dome grate

Non-ventilated roof structure to the general rules of engineering with:

Waterproofing membrane
Thermal insulation
Vapour barrier
Substructure

SitaDSS Indra main drainage set in a non-ventilated roof structure

SitaDSS Indra main drainage set consisting of:
1.1 SitaPipe Edelstahl pipe
1.2 SitaPipe Edelstahl pipe clamp
1.3 SitaPipe Edelstahl safety clamp
1.4 SitaPipe Edelstahl bend 87.5°
1.5 SitaMore vapour barrier plate flex
1.6 SitaIndra insulating body
1.7 SitaPipe Edelstahl pipe
1.8 SitaDSS Indra base body
1.9 SitaDSS Indra Airstop
1.10 SitaDSS Indra dome grate
1.11 SitaDSS Indra Airstop fastening ring

2 SitaPipe Edelstahl safety clamp
3 SitaPipe Edelstahl cleaning pipe
4 SitaPipe Edelstahl transition piece eccentric
5 SitaPipe Edelstahl pipe clamp

Non-ventilated roof structure to the general rules of engineering with:

Sealing
Thermal insulation
Vapour barrier
Substructure
Parapet lead-through with joint tape

SitaDSS Indra emergency drainage set with downpipe in a non-ventilated roof structure

SitaDSS Indra emergency drainage set consisting of:
1.1 SitaAttika pipe
1.2 SitaAttika pipe clamp
1.3 SitaAttika safety clamp
1.4 SitaAttika bend 87.5°
1.5 SitaMore vapour barrier plate flex
1.6 SitaIndra insulating body
1.7 SitaAttika pipe
1.8 SitaDSS Indra base body
1.9 Retaining element with Airstop
1.10 Sealing ring

2 SitaAttika safety clamp
3 SitaAttika bend 45°

Non-ventilated roof structure to the general rules of engineering with:

Sealing
Thermal insulation
Vapour barrier
Substructure
Parapet lead-through with joint tape

SitaEasy Go for main drainage in a non-ventilated roof structure

1 SitaPipe Edelstahl pipe
2 SitaPipe Edelstahl pipe clamp
3 SitaPipe Edelstahl safety clamp
4 SitaPipe Edelstahl bend
5 SitaAttika cladding cover plate
6 SitaMore vapour barrier plate flex
7 SitaEasy Go

SitaEasy dome grate consisting of:
8.1 Latch
8.2 Dome grate basket

9 SitaPipe Edelstahl cleaning pipe

Non-ventilated roof structure to the general rules of engineering with:

Sealing
Thermal insulation
Vapour barrier
Substructure
Parapet lead-through with joint tape

SitaRondo installed higher with downpipe in a non-ventilated roof structure

1 SitaPipe Edelstahl pipe
2 SitaPipe Edelstahl pipe clamp
3 SitaPipe Edelstahl safety clamp
4 SitaPipe Edelstahl bend 87.5°
5 SitaAttika cladding cover plate
6 SitaMore vapour barrier plate flex

SitaRondo consisting of:
7.1 Dome grate with mounting bracket
7.2 Loose flange and sealing sleeves
7.3 Washers, nuts and protective caps

8 SitaPipe Edelstahl bend 45°

Non-ventilated roof structure to the general rules of engineering with:

Sealing
Thermal insulation
Vapour barrier
Substructure
Parapet lead-through with joint tape

SitaKaskade lead-through Fluid with SitaCompact for main drainage in a non-ventilated roof structure

1 SitaCompact insulating body
2 SitaCompact vertical

SitaCompact extension unit consisting of:

3.1 Base body
3.2 Sealing ring

SitaDrain® area frame consisting of:

4.1 Frame
4.2 Inspection grate

5 SitaKaskade lead-through Fluid
6 SitaPipe Edelstahl safety clamp
7 SitaPipe Edelstahl pipe
8 SitaPipe Edelstahl pipe clamp
9 SitaAttika cladding cover plate
10 SitaPipe Edelstahl bend
11 SitaMore vapour barrier plate flex

Non-ventilated roof structure with slab paving on support pads to the general rules of engineering with:

Slab paving on support pad
Protective mat
Sealing
Thermal insulation
Vapour barrier
Substructure

SitaKaskade Inside in a non-ventilated roof structure and paving on support pads with transition to downpipe in the thermal insulation composite system

SitaKaskade Inside for downpipe consisting of:
1.1 SitaAttika bend 87.5°
1.2 SitaPipe Edelstahl safety clamp
1.3 SitaMore vapour barrier plate flex
1.4 SitaKaskade Inside
1.5 SitaKaskade Inside loose flange with sealing sleeves, nuts, flat washers and protective caps
1.6 SitaPipe Edelstahl bend 30°
1.7 SitaPipe Edelstahl bend 15°

2 SitaPipe Edelstahl pipe
3 SitaPipe Edelstahl pipe clamp
4 SitaPipe Edelstahl safety clamp

Non-ventilated roof structure with slab paving on support pads to the general rules of engineering with:

Slab paving on support pad
Protective mat
Sealing
Thermal insulation
Vapour barrier
Substructure

SitaCompact Fluid linear drainage for balconies with liquid applied waterproofing and slab paving

1 SitaPipe Edelstahl pipe
2 SitaAttika cladding cover plate
3 SitaCompact Fluid grating
4 SitaCompact Fluid
5 SitaCompact Fluid flat grate
6 SitaPipe Edelstahl pipe clamp
7 SitaCompact Fluid height compensation piece
8 SitaCompact Fluid pipe holder

Roof structure 1 with liquid applied waterproofing according to the general rules of engineering with:

Sealing with liquid applied waterproofing
Substructure

Roof structure 2 with liquid applied waterproofing according to the general rules of engineering with:

Slab paving
Protective mat
Sealing with liquid applied waterproofing
Substructure
