SitaPipe Stainless Steel DN 315

pipe clamp

IC_SitaPipe_Rohrschelle.tif

Foto_S_SitaPipe_Edelstahl_Rohrschelle.tif

Attributes

Standards

DIN EN 1124

Article number

74200031

connection

DN 315

External diameter OD (mm)

315 mm

Material

Galvanised steel

Colour

Silver

Finish

Smooth

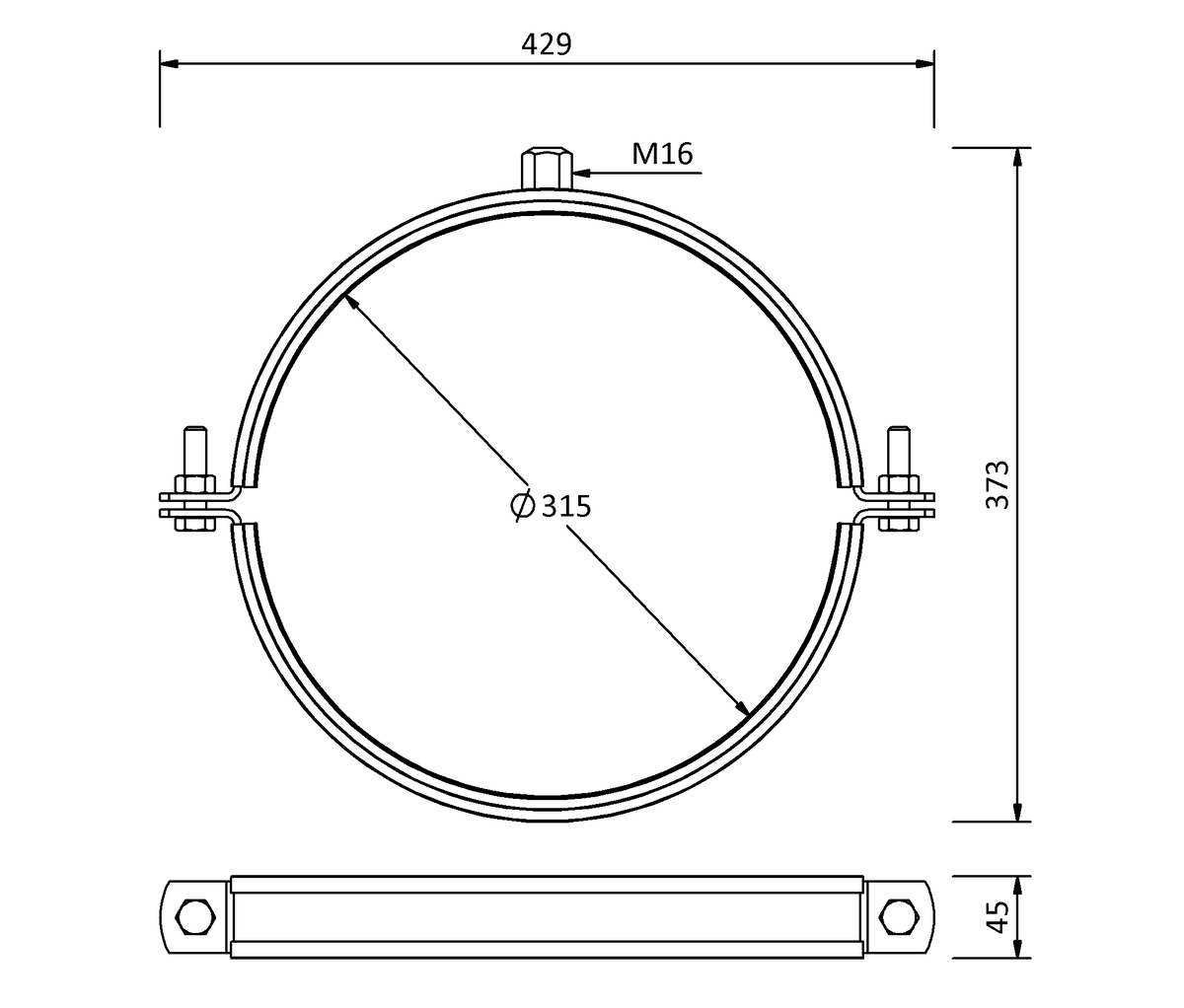

Technical drawing
