SitaPipe Stainless Steel DN 315

Slide-on coupler

IC_SitaPipe_Doppelsteckmuffe.tif

Foto_S_SitaPipe_Edelstahl_Schiebemuffe.tif

Attributes

Standards

DIN EN 1124

Article number

70113131

connection

DN 315

External diameter OD (mm)

315 mm

Material

Rust-proof stainless steel

Material number

1.4404

Finish

Smooth

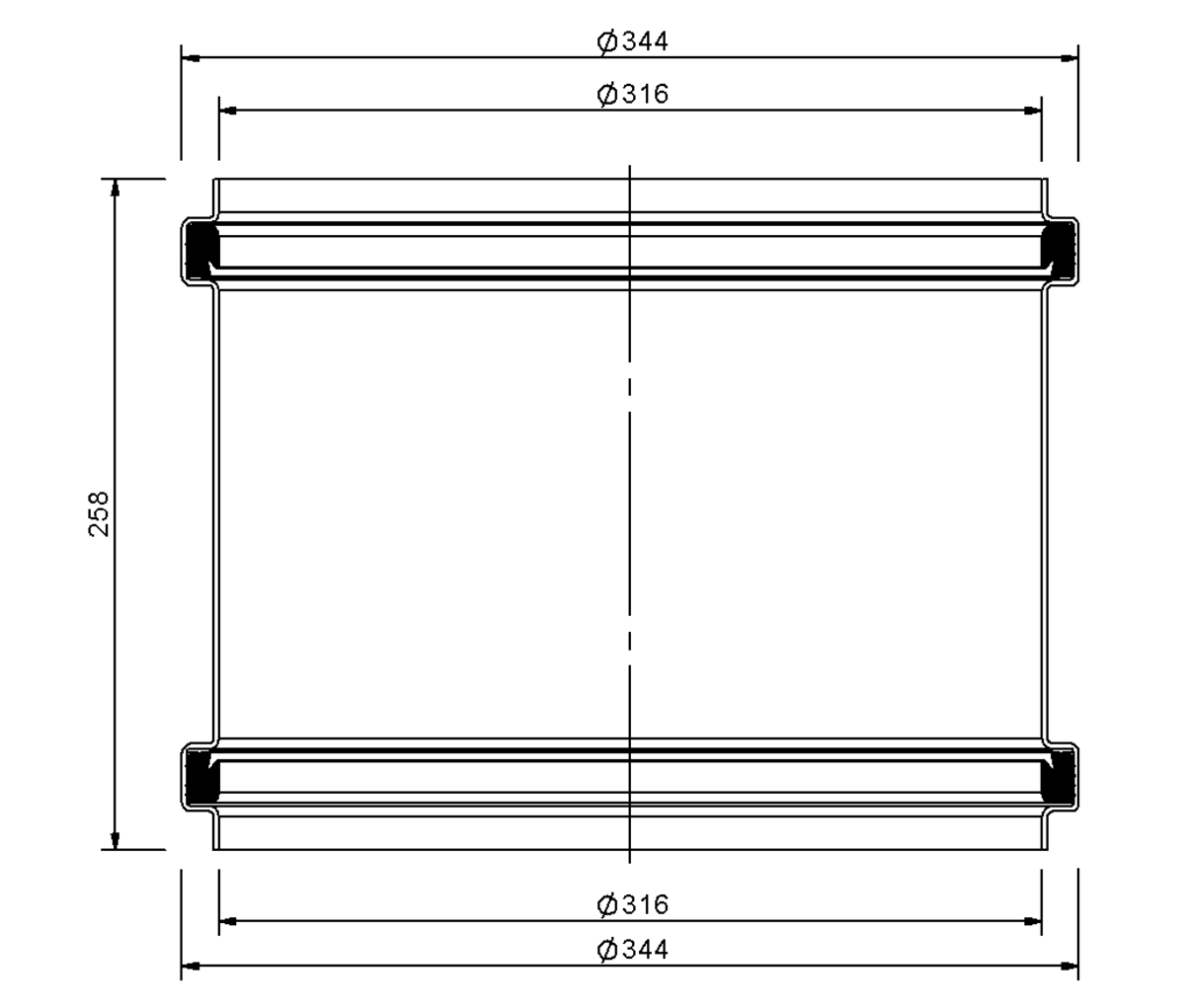

Technical drawing

Due to the low weight, the pipe can be routed quickly and effectively by a single person without any aids. The well-known and popular socket system is valued by craftspeople and planners in equal measure. The timeless appearance guarantees an attractive appearance.
