SitaRondo DN 50
Parapet outlet
Attributes
Standards
DIN EN 1253-2
Article number
182099
connection
Screw-on flange
External diameter OD (mm)
50 mm
Opening/Core borehole (mm)
110 mm
Support length
800 mm
Support slope
3 °
Temperature resistance, min.
-20 °C
Material class
Euroclass A1 /A1 non-flammable

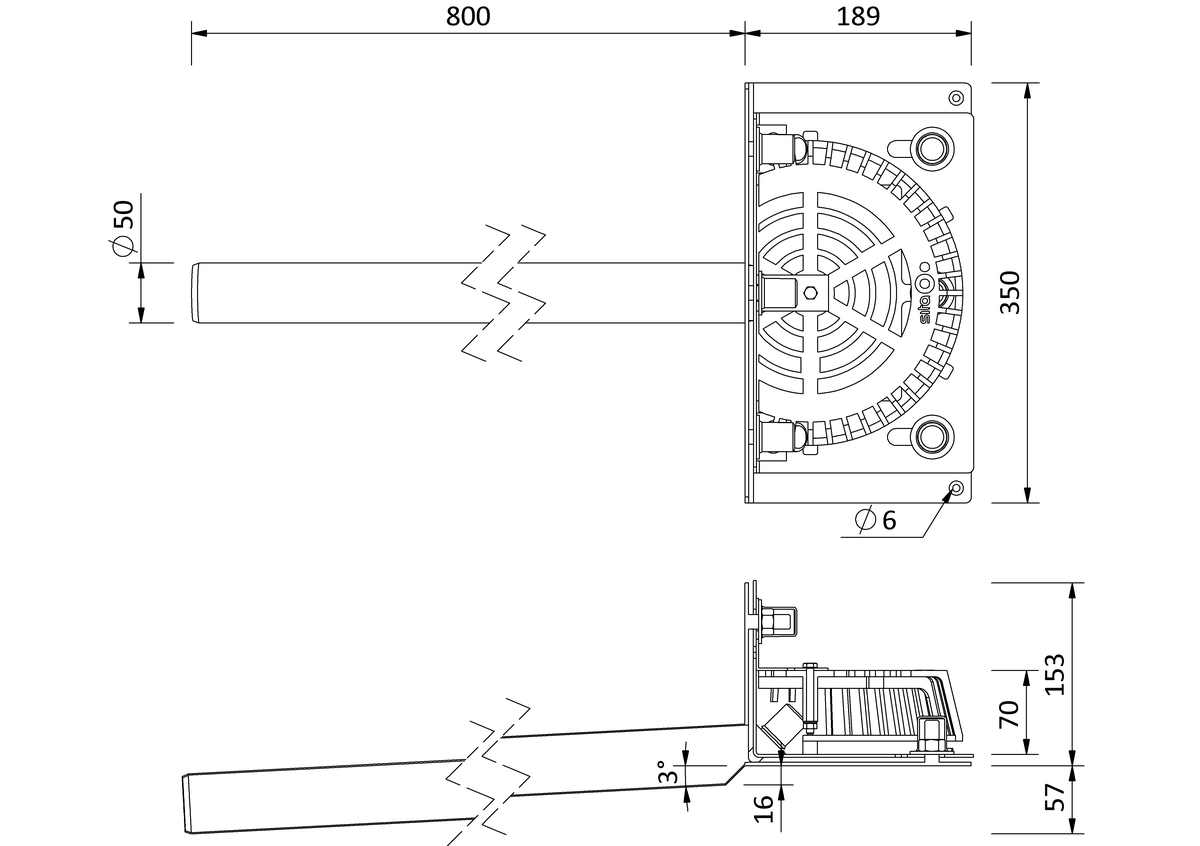

Technical drawing

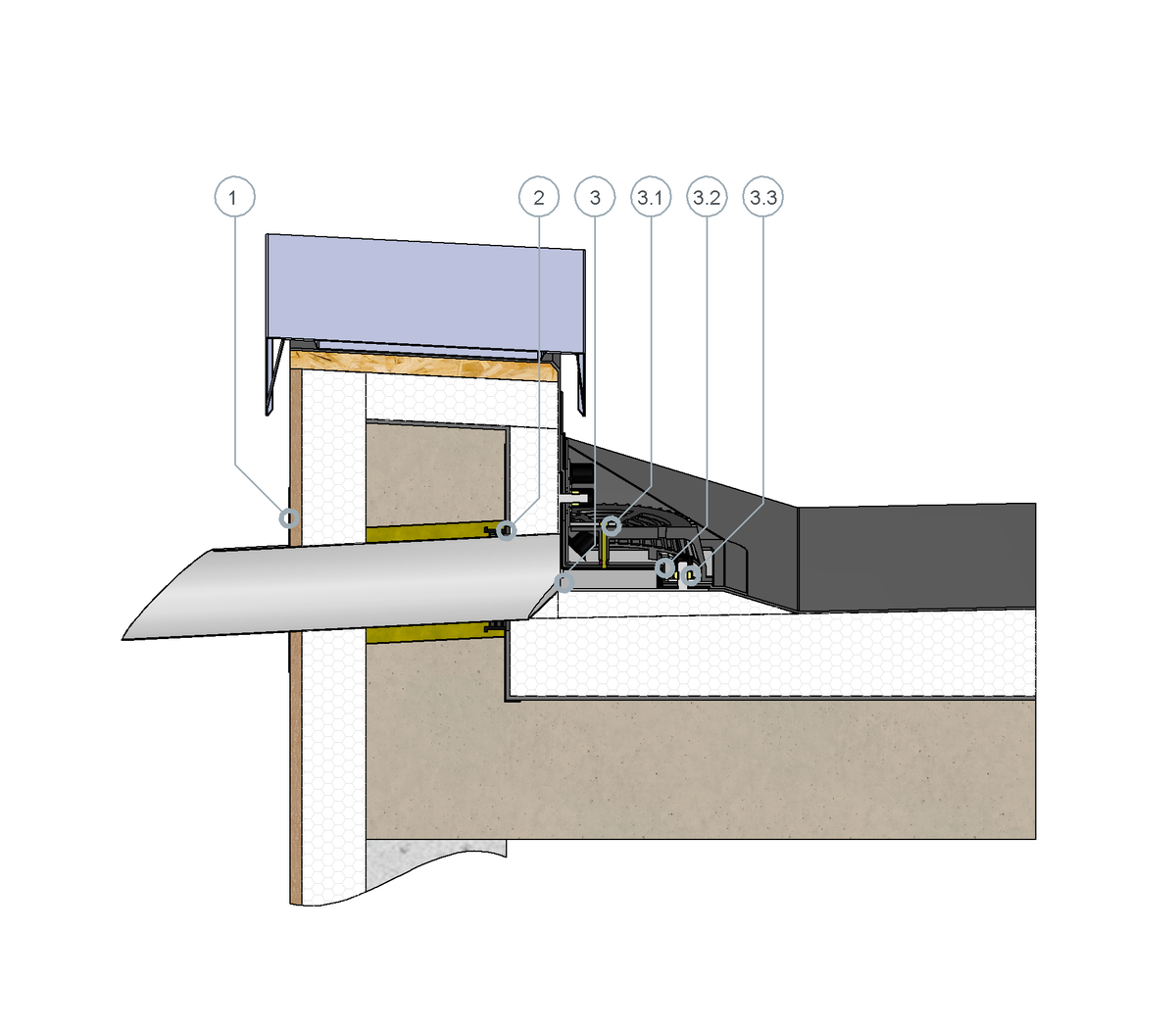

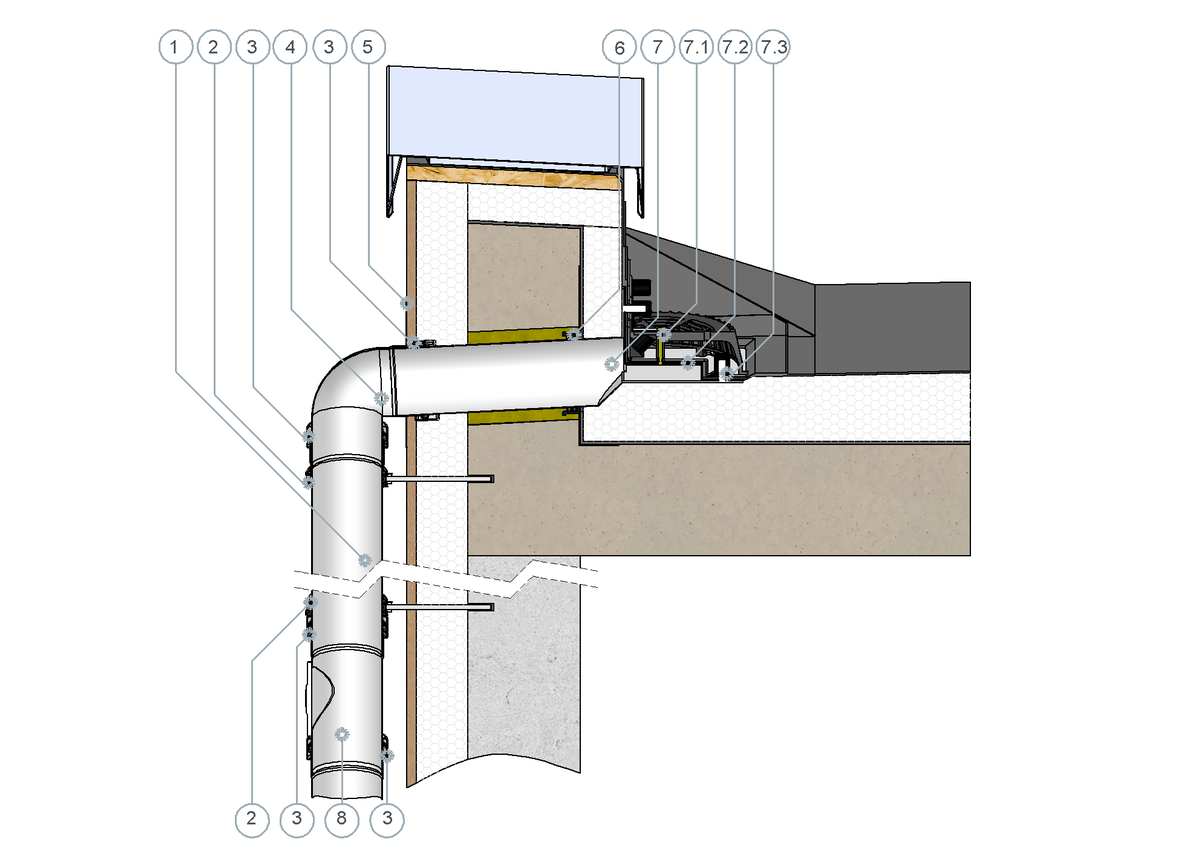

The SitaRondo with round pipe is suitable for main and emergency drainage through the parapet where internal downspouts cannot be used for drainage. The screw-on -fixed flange construction of the SitaRondo guarantees flexible connection options for all standard roof membranes.
+
