SitaStandard
Extension unit
Attributes
Article number
105073
connection
Flagon EP basalt grey-sleeve
Colour
Yellow
Finish
Smooth
Temperature resistance, max.
80 °C
Temperature resistance, min.
-20 °C
Material class
Euroclass E / B2 normal flammability
Bridging of thermal insulation min. (mm)
60 mm
Bridging of thermal insulation max. (mm)
520 mm

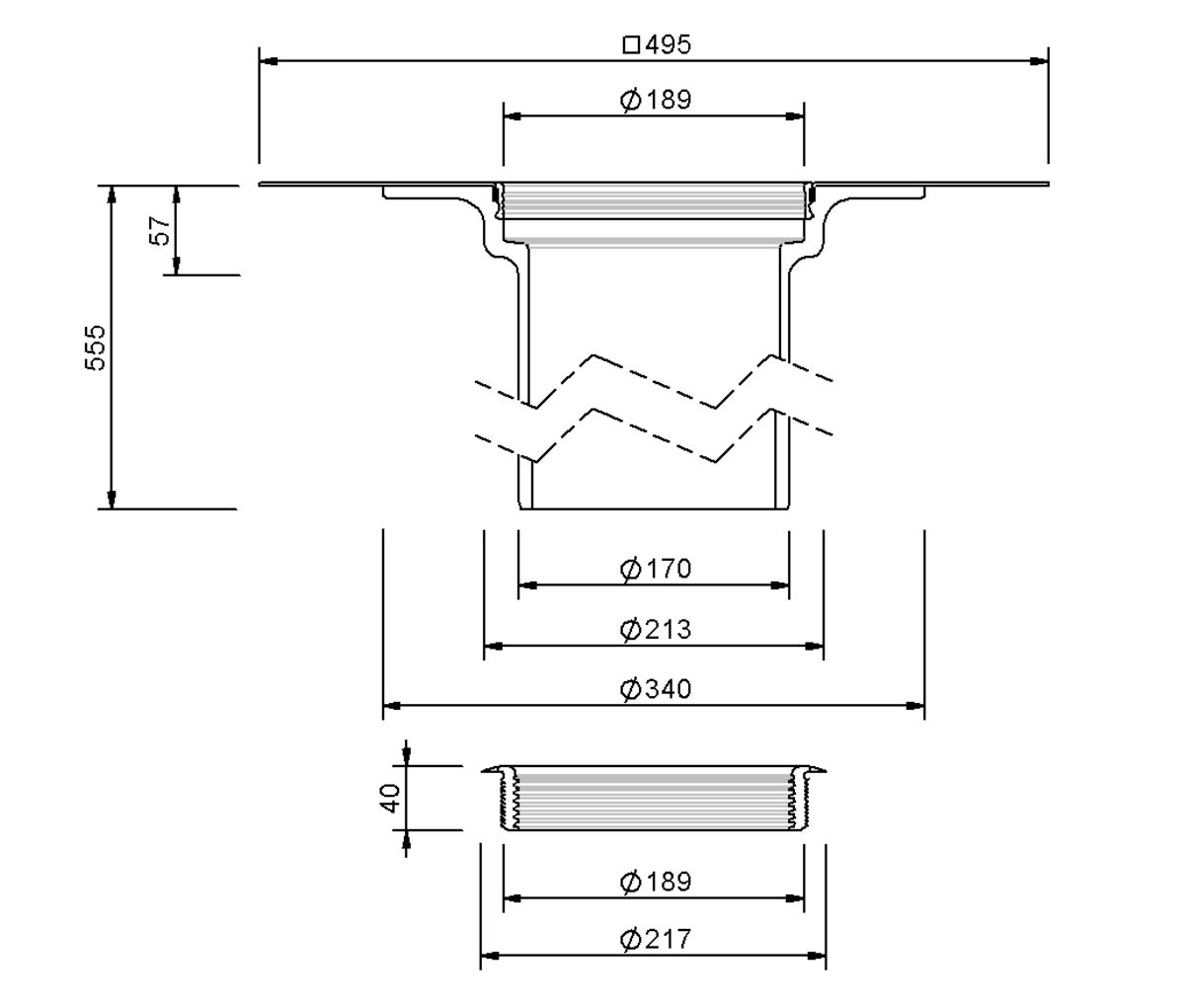

Technical drawing
SitaStandard extension unit, made of polyurethane, compliant with DIN EN 1253, for insulation thicknesses of 60 mm to 520 mm depending on the product. With foamed-in connection sleeve of choice.
