SitaTurbo

1 SitaPipe Edelstahl pipe
2 SitaPipe Edelstahl pipe clamp
3 SitaPipe Edelstahl safety clamp

SitaTurbo transition piece consisting of:
4.1 Transition piece to round downpipe
4.2 Multi-disk seal

5 SitaTurbo cladding cover plate
6 SitaTurbo vapour barrier plate flex
7 SitaTurbo insulating body

SitaTurbo for emergency drainage consisting of:
8.1 SitaTurbo base body
8.2 Sealing sleeves
8.3 Washers, nuts and protective caps
8.4 Loose retaining flange
8.5 Dome grate

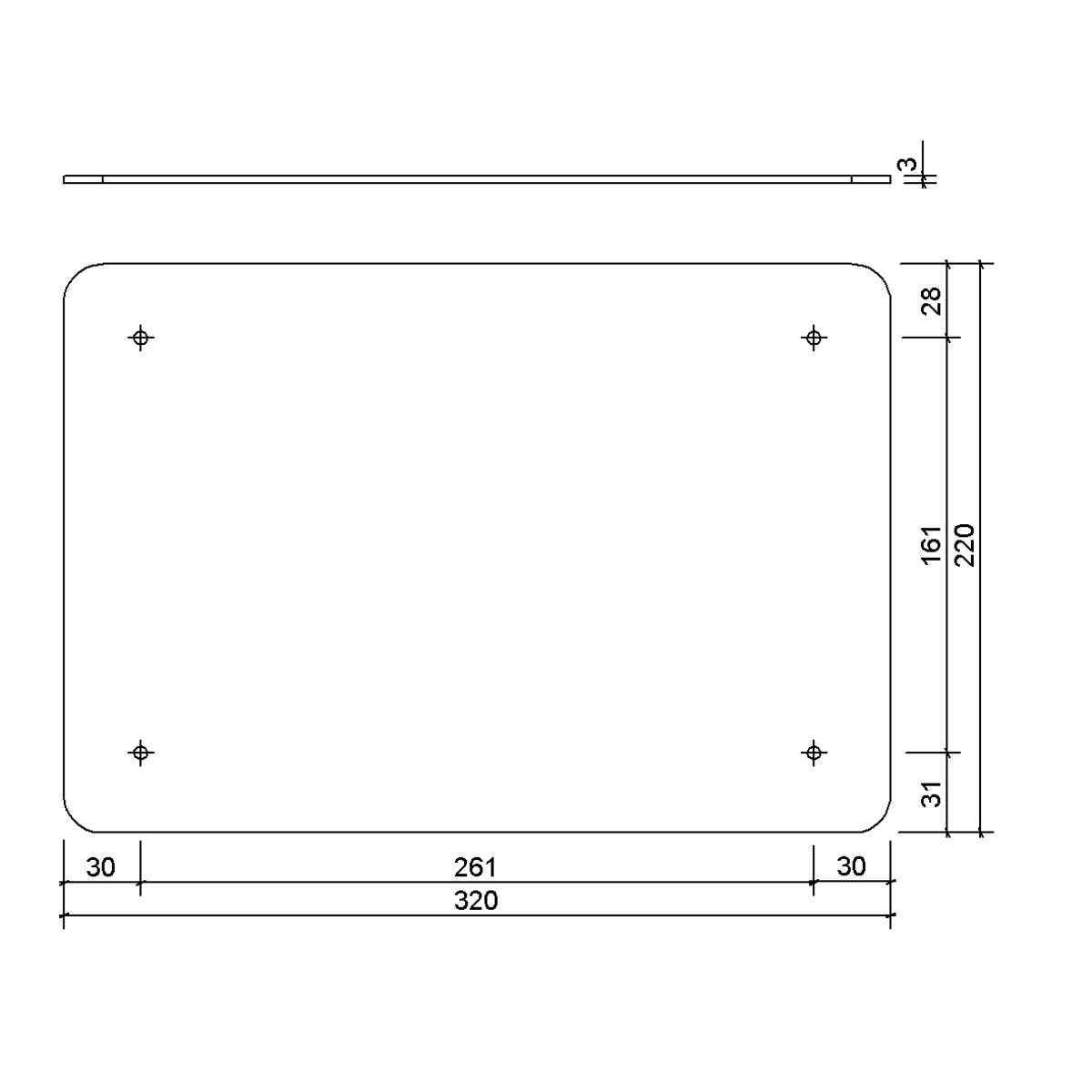

9 SitaTurbo cover plate
10 SitaTurbo connection sleeve
11 SitaPipe Edelstahl bend 45°

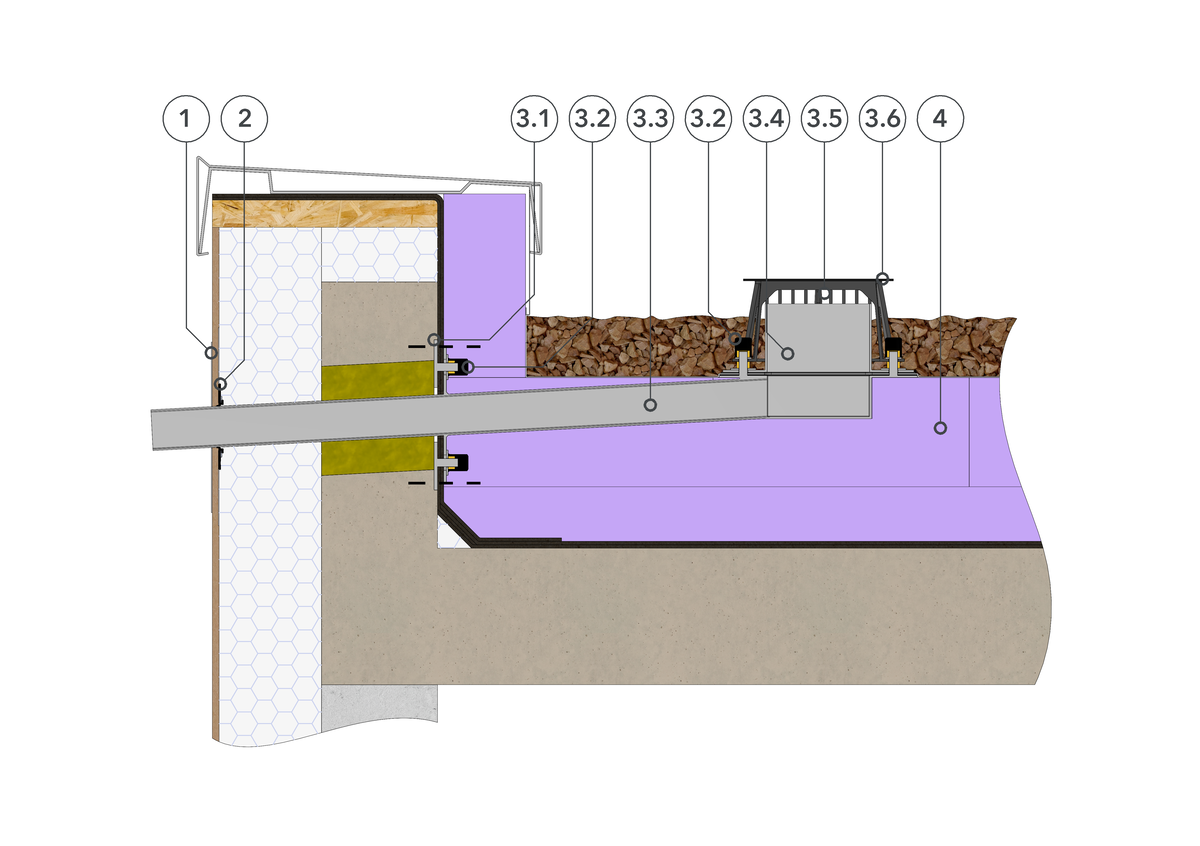

1 SitaTurbo cladding cover plate


SitaTurbo inverted roof consisting of:
2.1 Fixed flange plate
2.2 Washers, nuts and protective caps
2.3 SitaTurbo base body with welded loose flange plate
2.4 Loose retaining flange
2.5 Dome grate


3 SitaTurbo cover plate
4 SitaTurbo insulating body XPS for inverted roof
