SitaVent Revision DN 100

Insulating body

  1. Products
  2. Accessories
  3. Revision

  4. 178200

Attributes

Article number
178200
Size DN
DN 100
Compatibility
SitaVent Revision DN 100
Material
Polyurethane
Colour
Yellow
Finish
Smooth
Length
500 mm
Width
500 mm
Height
100 mm
Rated heat conductivity
0.023 W/(m*K)
Material class
Euroclass E

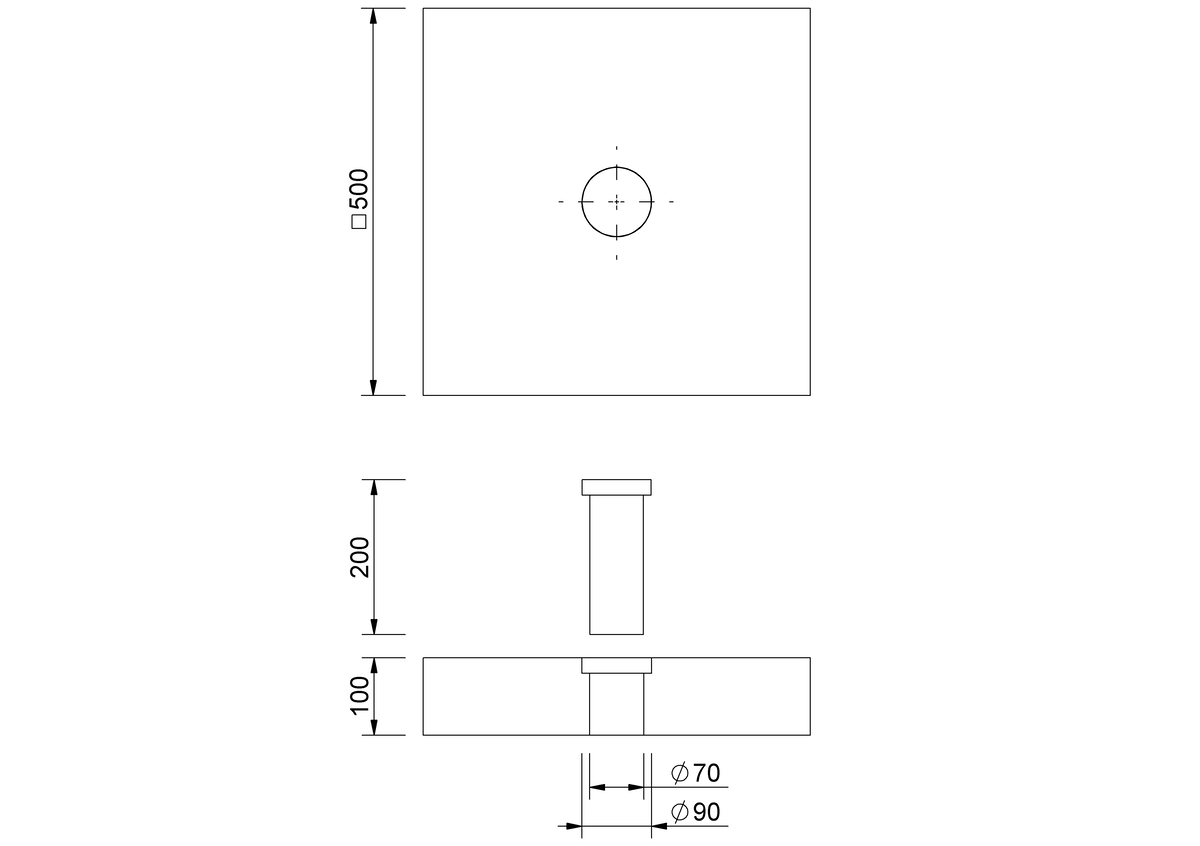

Technical drawing


The SitaVent Revision insulating body saves on time-consuming cutting of the insulation, the 200 mm high insulation block can easily be removed with the insulation dowel of the SitaVent Revision to inspect the vapour barrier.
