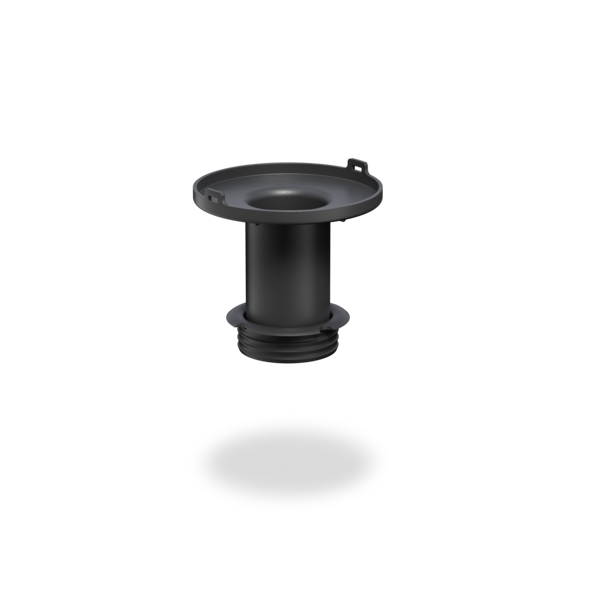

SitaCompact

Retaining element

Attributes

Resistant to normal environmental influences
Impact and shock resistant
Long lifespan

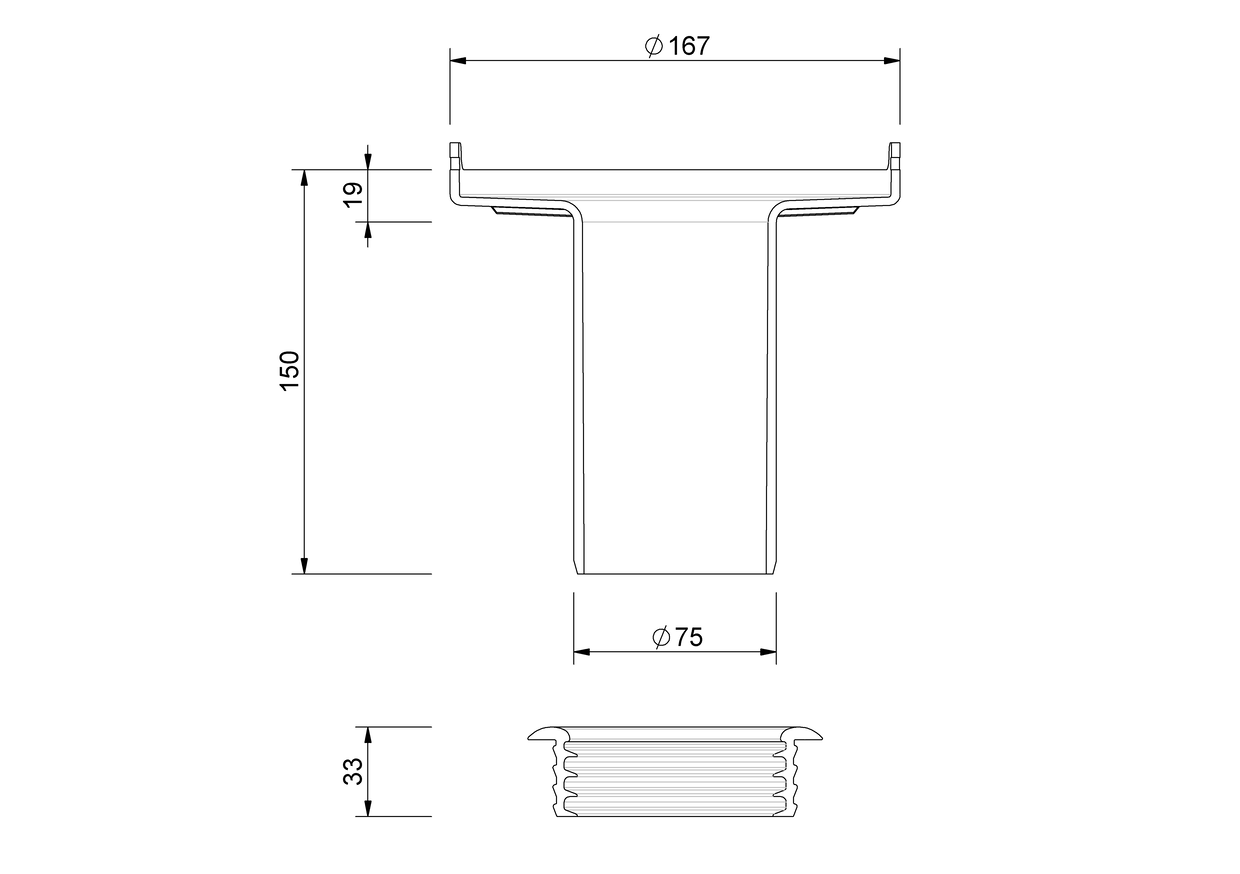

Technical drawing

For model/series	External diameter OD (mm)	Damming height from-to (mm)
SitaCompact, SitaCompact screw-on flange	75	22 - 115

Performance text

SitaCompact retaining element, made of polyamide, for emergency drainage in accordance with DIN EN 1253-2, for SitaCompact balcony outlets, retaining heights from 22 mm to 115 mm, and SitaCompact screw flange balcony outlets, retaining heights from 37 mm to 115 mm, infinitely adjustable, can be shortened on site, with multi-lip angle sealing ring to seal the retaining element to the roof outlet, supply and install to professional standards.

Installation Examples

SitaCompact mit SitaCompact Anstauelement im nicht belüfteten Dachaufbau

1 SitaCompact Dämmkörper

SitaCompact senkrecht bestehend aus:
2.1 Grundkörper Gully
2.2 Kiesfang

SitaCompact Anstauelement bestehend aus:
3.1 Grundkörper Anstauelement
3.2 Dichtring

SitaCompact Aufstockelement bestehend aus:
4.1 Grundkörper Aufstockelement
3.2 Dichtring

Nicht belüfteter Dachaufbau nach den aaRdT mit:

Abdichtung
Wärmedämmung
Dampfsperre
Unterkonstruktion

Downloads

SitaCompact			Article no.
Retaining element
Retaining element	SitaCompact, SitaCompact screw-on flange	22 - 115	199070	Show product
