SitaCompact

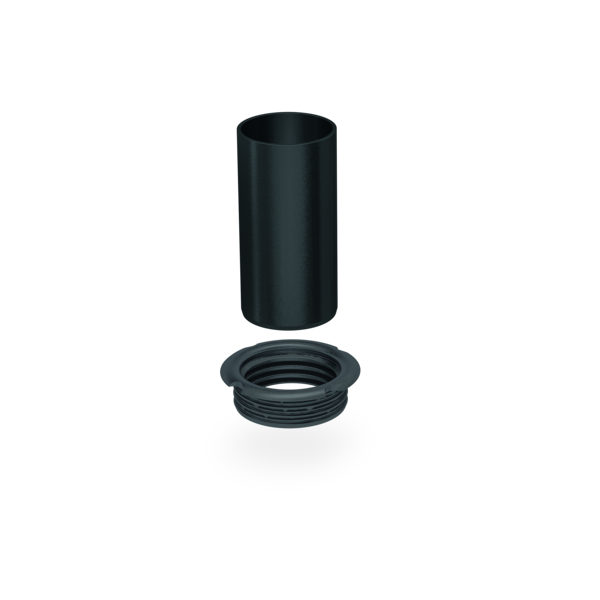

Retaining ring

Attributes

Resistant to normal environmental influences
Impact and shock resistant
Long lifespan

Technical drawing

For model/series	Damming height from-to (mm)
SitaCompact, SitaSani® 70,95	20 - 118

Performance text Installation Examples

SitaCompact with retaining ring in a non-ventilated roof structure with slab paving

1 SitaCompact insulating body
2 SitaCompact vertical

SitaCompact extension unit consisting of:
3.1 Sealing ring
3.2 Base body

SitaCompact retaining ring consisting of:
4.1 Retaining ring
4.2 Sealing ring

SitaDrain® Terra consisting of:
5.1 Inspection grate
5.2 Height-adjustable rubber feet
5.3 Frame

6 SitaPipe Edelstahl pipe clamp
7 SitaPipe Edelstahl pipe
8 SitaPipe Edelstahl bend
9 SitaPipe Edelstahl safety clamp

Non-ventilated roof structure with slab paving on support pads to the general rules of engineering with:

Slab paving on support pad
Protective mat
Sealing
Thermal insulation
Vapour barrier
Substructure

MultiCAD und BIM-Daten

In order for the external content to be displayed at this location, you must accept the cookies of the category "Preferences".
You can adjust the cookie settings here.

Downloads

SitaCompact			Article no.
Retaining ring
Retaining ring	SitaCompact, SitaSani 70,95	20 - 118	199001	Show product
