SitaDSS Multi

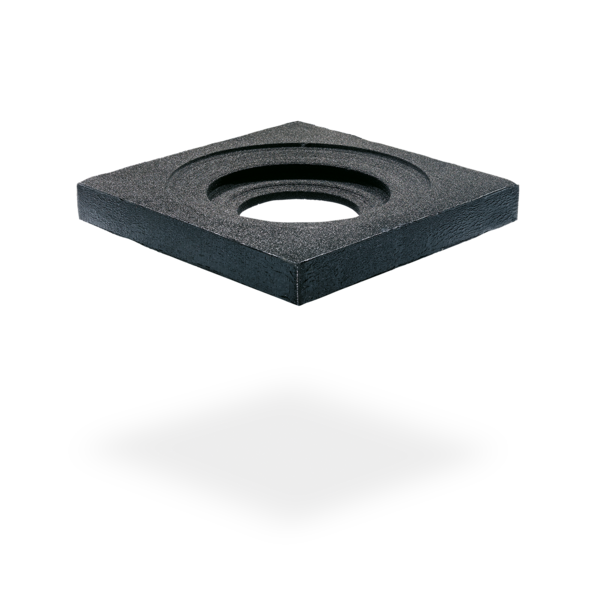

Insulating body for extension element

Foto_S_SitaDSS_Multi_Daemmkoerper_Aufstockelement.tif

Attributes

Water-tight
Steam-tight
Non-combustible
Resistant to pests
Pressure-resistant
Maintains dimensions
Acid-resistant

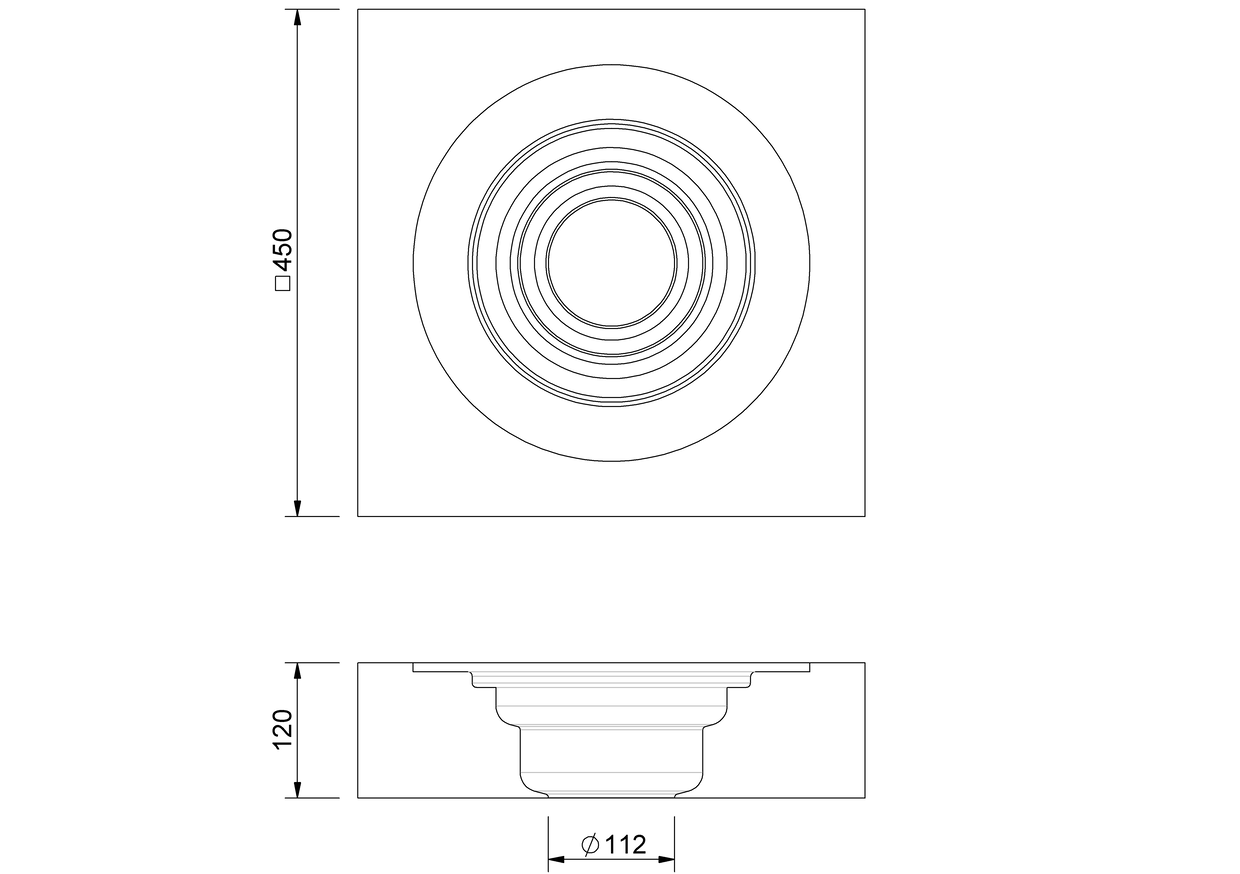

Technical drawing

Performance text Installation Examples

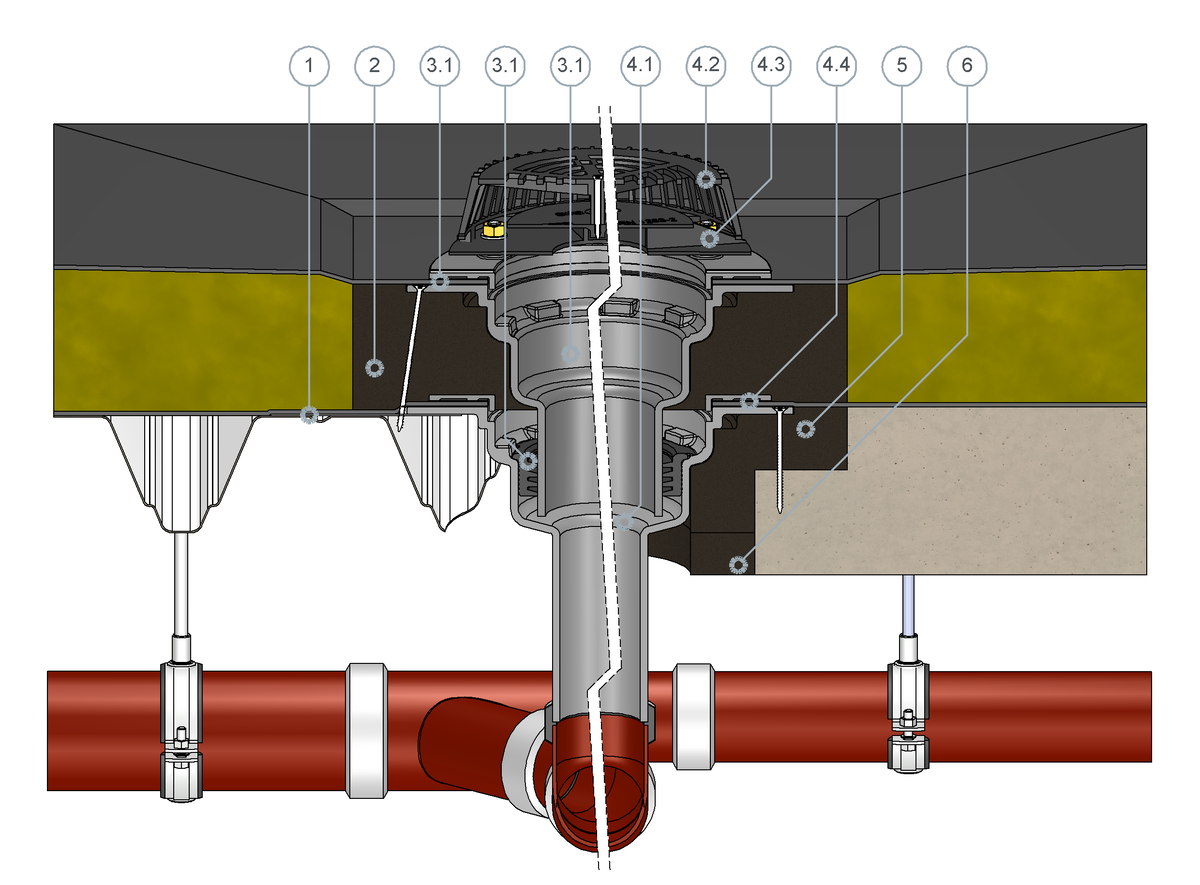

SitaDSS Multi in a non-ventilated roof structure

1 SitaMore reinforcement plate
2 SitaDSS Multi insulating body for extension unit

SitaDSS Multi extension unit consisting of:
3.1 Screw-on flange, nuts and sealing sleeves
3.2 Sealing ring
3.3 Base body

SitaDSS Multi consisting of:
4.1 Base body
4.2 Dome grate
4.3 Airstop
4.4 Screw-on flange, nuts and sealing sleeves

5 SitaDSS Multi insulating body for outlet
6 SitaDSS Multi compensating ring

Non-ventilated roof structure to the general rules of engineering with:

Waterproof membrane
Thermal insulation
Vapour barrier
Substructure

MultiCAD und BIM-Daten

In order for the external content to be displayed at this location, you must accept the cookies of the category "Preferences".
You can adjust the cookie settings here.

Downloads

SitaDSS Multi		Article no.
Insulating body for extension element
Insulating body for extension element	SitaDSS Multi extension unit	429006	Show product
