SitaDrain® box drain

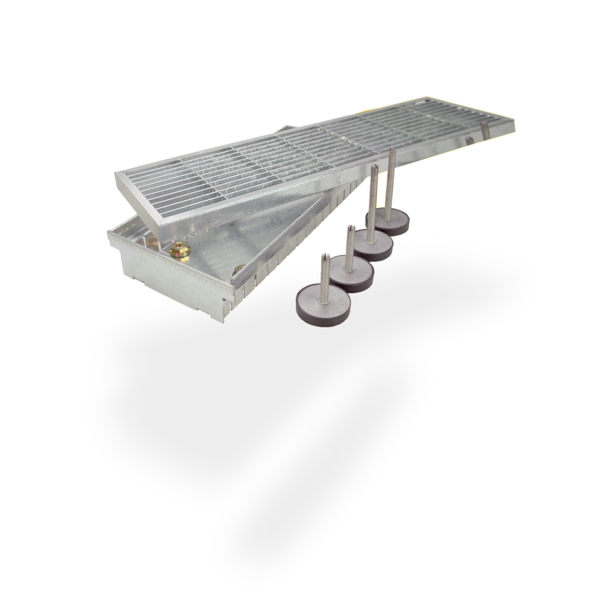

Height adjustment set
Attributes
- Height adjustment set steplessly height adjustable from 50-90 mm, 70-110 mm or 110-150 mm, depending on the box drain and height adjustment set
- For longitudinal bar and grating, steplessly height adjustable from 60-90 mm, 80-110 mm or 120-150 mm, depending on the box drain and height adjustment set

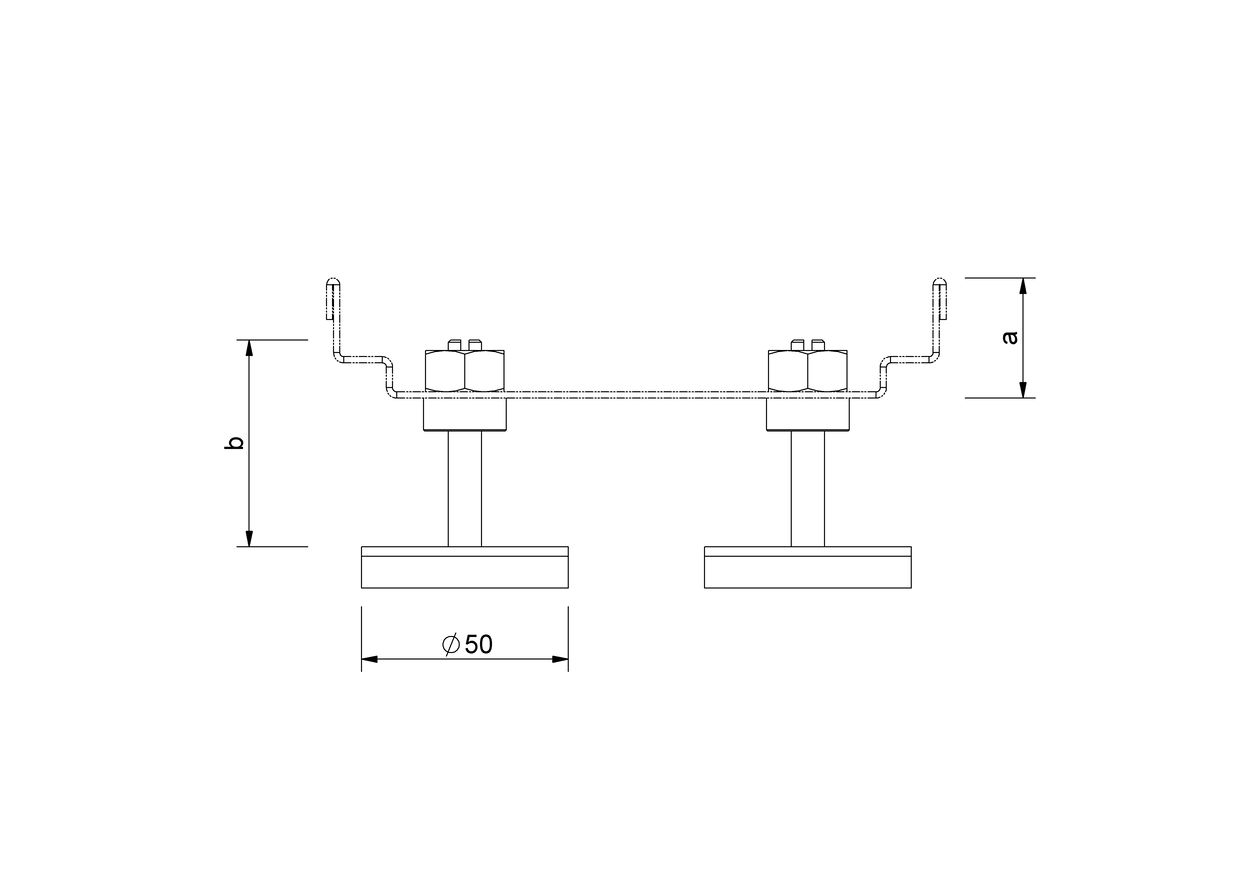

Technical drawing
| Height adjustment set no. | b (mm) | Gutter height (mm) a = 30mm | Gutter height (mm) a = 40mm | Gutter height (mm) a = 50mm |
|---|---|---|---|---|
| Set 1 | 30 | 50-70 mm | 60-80 mm | 70-90 mm |
