SitaEasy
Retaining element
Attributes
- Resistant to normal environmental influences
- Impact and shock resistant
- Long lifespan

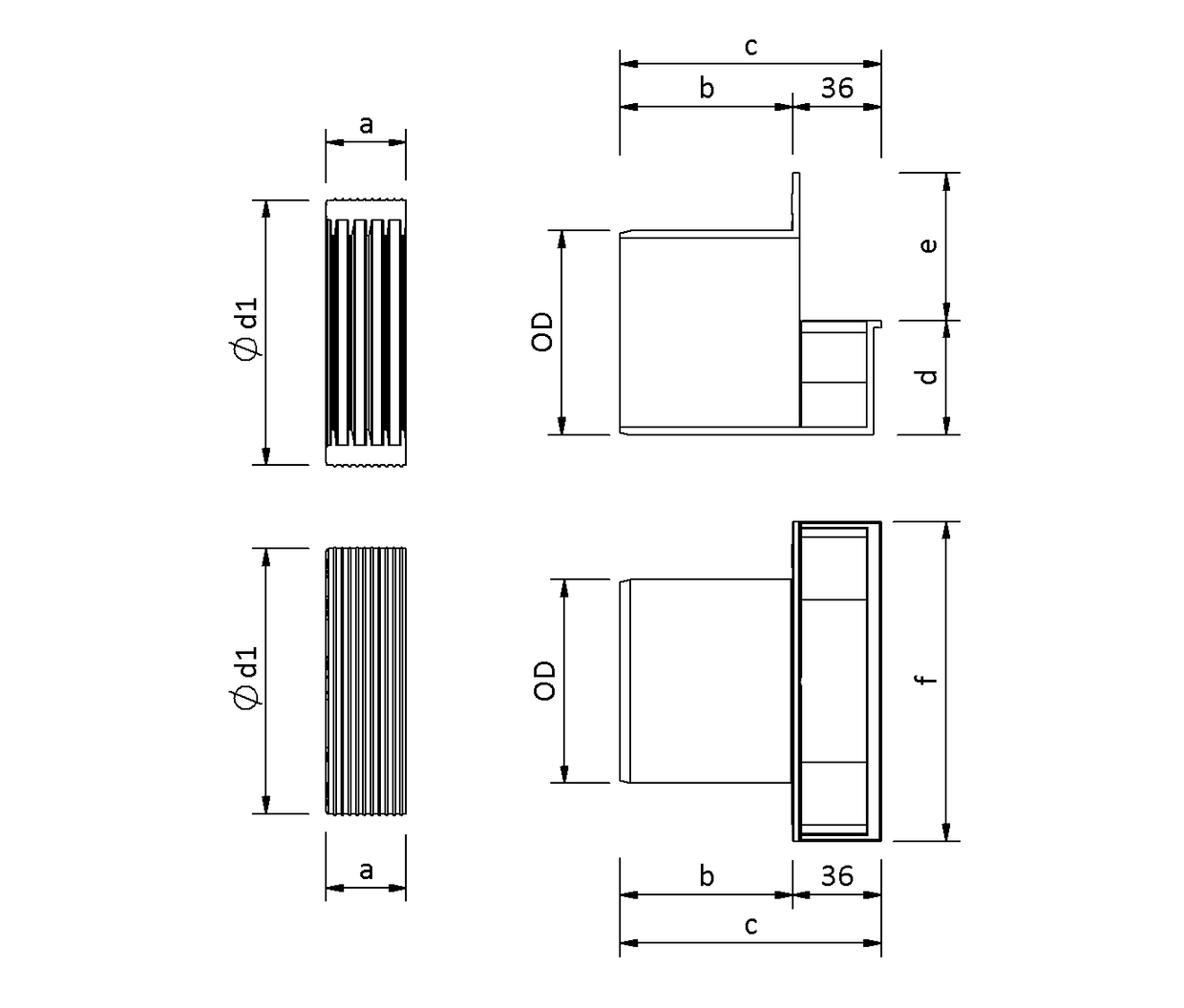

Technical drawing
| For model/series | External diameter OD (mm) | Damming height from-to (mm) | a (mm) | b (mm) | c (mm) | d (mm) | e (mm) | f (mm) | d1 (mm) |
|---|---|---|---|---|---|---|---|---|---|
| SitaEasy DN 100 | 83 | 16 - 59 | 33 | 70 | 103 | 47 | 60 | 130 | 108 |
| SitaEasy DN 50 / DN 70 | 55 | 19 - 50 | 32 | 43 | 76 | 43 | 29 | 84 | 68 |
