SitaEasy Go

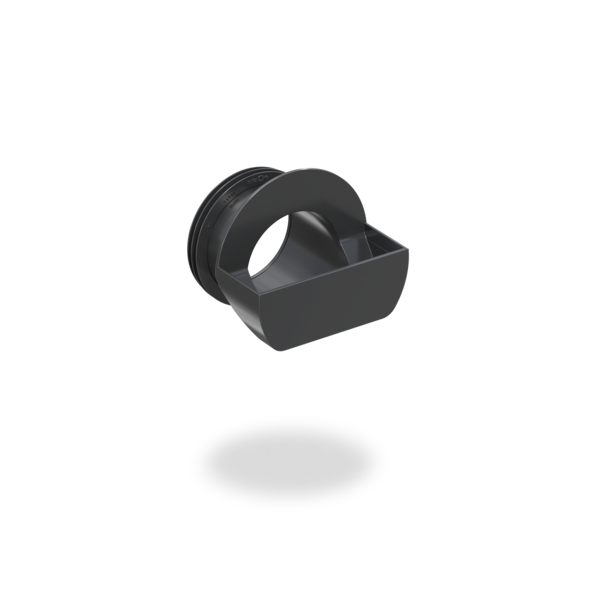

Retaining element

Attributes

Resistant to normal environmental influences
Impact and shock resistant
Long lifespan

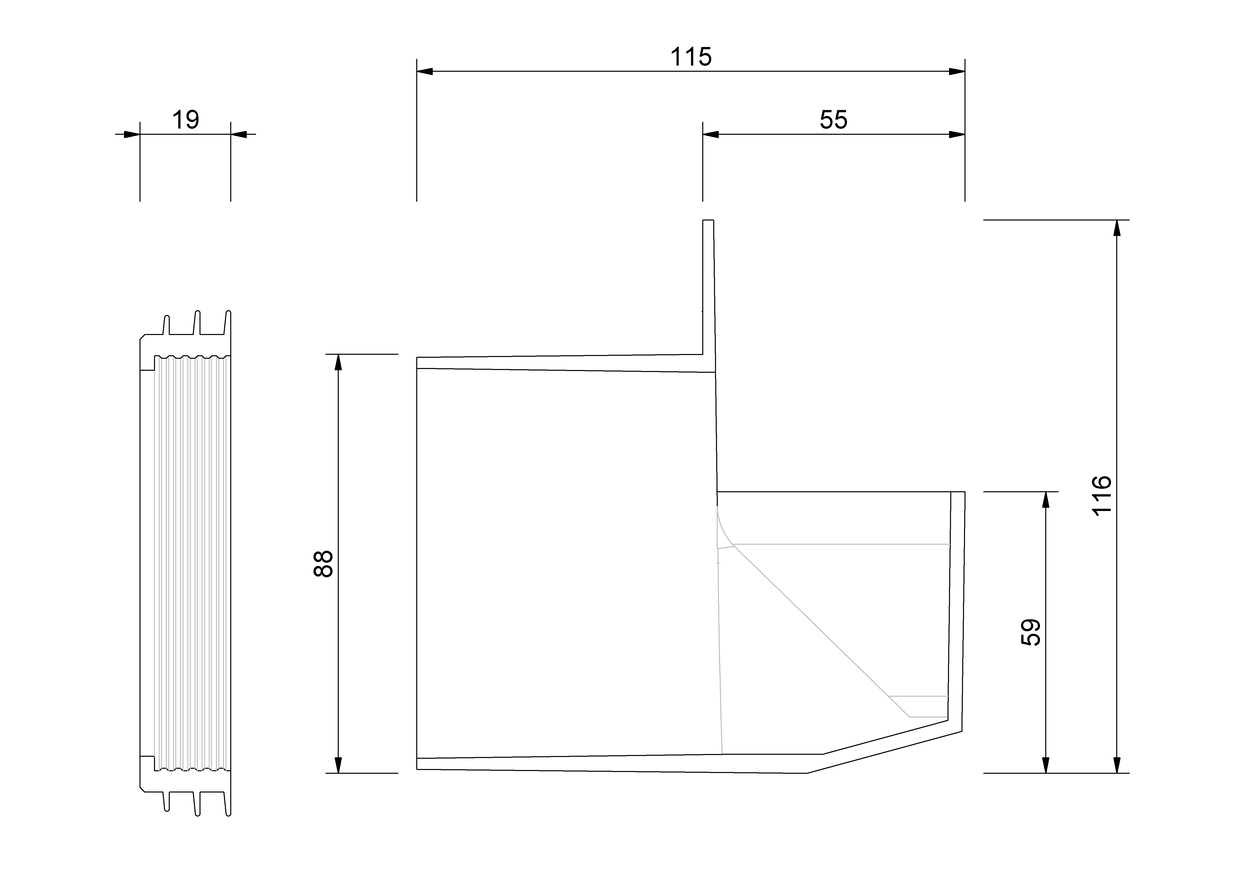

Technical drawing

For model/series	External diameter OD (mm)	Damming height from-to (mm)
SitaEasy Go	88	15 - 60

Performance text Installation Examples

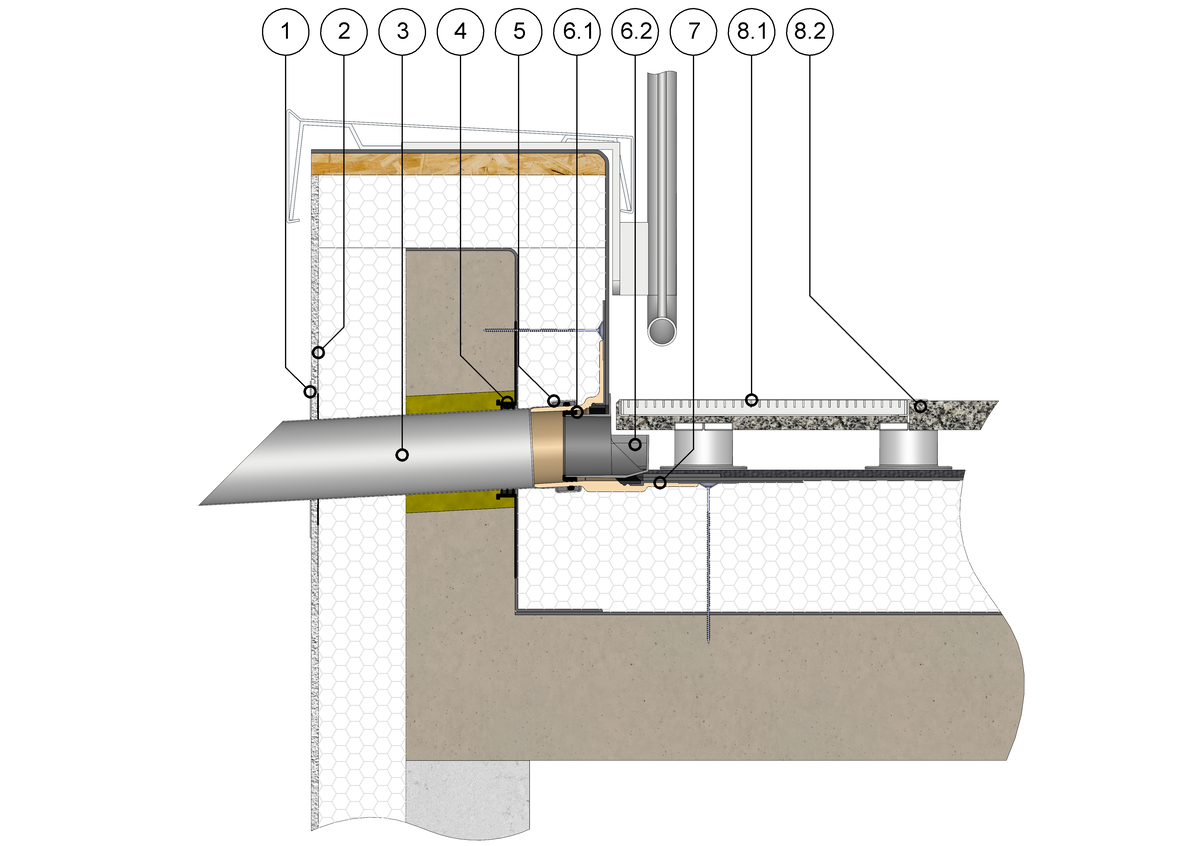

SitaEasy Go with SitaEasy Go retaining element and SitaDrain profile frame in non-ventilated roof structures with slab covering

1 SitaAttika facade cover panel
2 SitaMore sealing collar for ETICS
3 SitaPipe stainless steel pipe
4 SitaMore vapor barrier plate flex
5 SitaPipe stainless steel pipe clamp

SitaEasy Go retaining element consisting of:
6.1 Seal
6.2 Backwater element base body

7 SitaEasy Go

SitaDrain profile frame consisting of:
8.1 Grating
8.2 Profile frame

Roof structure according to the aaRdT with:

Slab covering on pedestal support
Building protection mat
Waterproofing
Heat insulation
Vapor barrier
Substructure

Downloads

SitaEasy Go			Article no.
Retaining element
Retaining element	SitaEasy Go	15 - 60	189076	Show product
