SitaFireguard® pipe lead-through

Insulating body Mineral wool

IC_SitaFireguard_Rohrdurchfuehrung_Daemmkoerper.tif

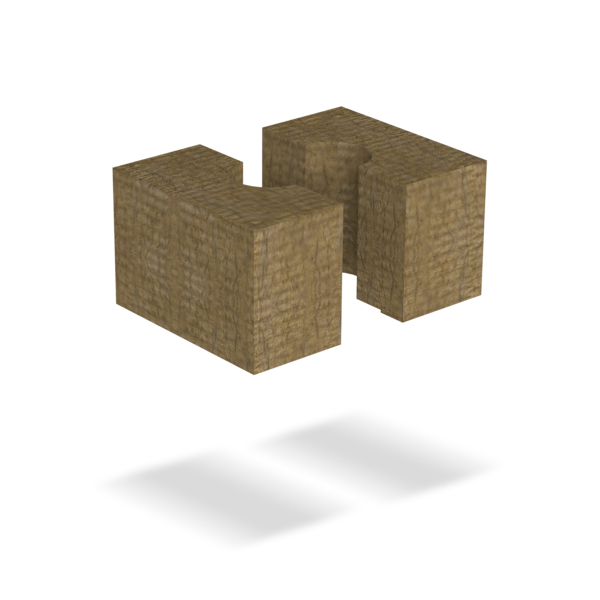

Foto_S_SitaFireguard_Rohrdurchfuehrung_Daemmkoerper.tif

Attributes

Simple to insert due to prefabricated contours
Stable dimensions
Resistant to rotting

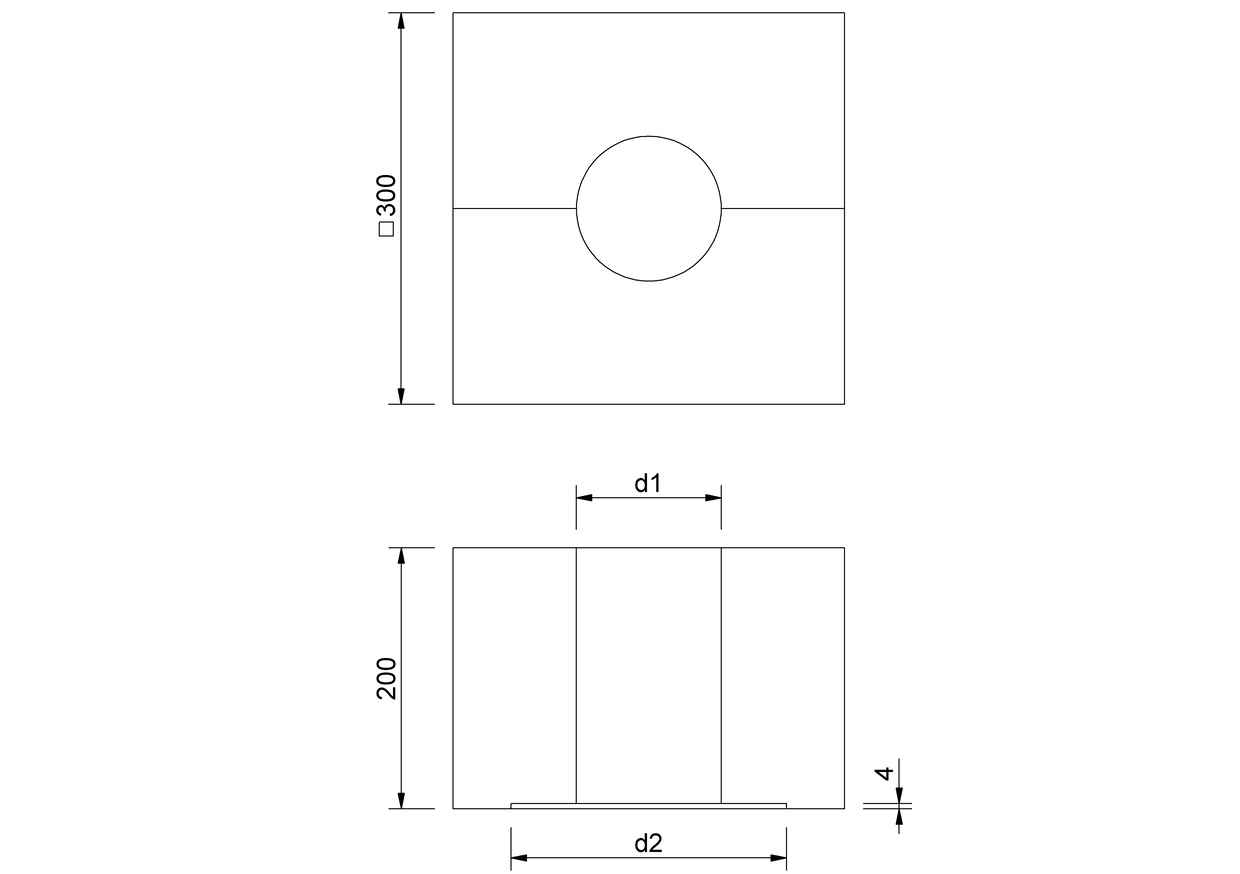

Technical drawing

For model/series	d1 (mm)	d2 (mm)	Bridging of thermal insulation min. (mm)	Bridging of thermal insulation max. (mm)
SitaFireguard® pipe lead-through DN 100	111	211	80	200
SitaFireguard® pipe lead-through DN 150	161	261	80	200

Performance text

SitaFireguard pipe lead-through insulating body, made of mineral fibres, WLG 040, height 200 mm, material class A1 (not flammable), application type DAA dm according to DIN 4108-10, compressive stress ≥ 70 kPa. For thermal insulation and installation aid for positioning the fire protection pipe and the SitaFireguard pipe lead-through, supply and install to professional standards.

Downloads

SitaFireguard® pipe lead-through		Article no.
Insulating body Mineral wool
	SitaFireguard pipe lead-through DN 100	E109615	Show product
	SitaFireguard pipe lead-through DN 150	E109616	Show product
