SitaIndra
Retaining element
Attributes
- Resistant to normal environmental influences
- Impact and shock resistant
- Long lifespan
- Noticeable yellow colour to indicate the emergency drainage

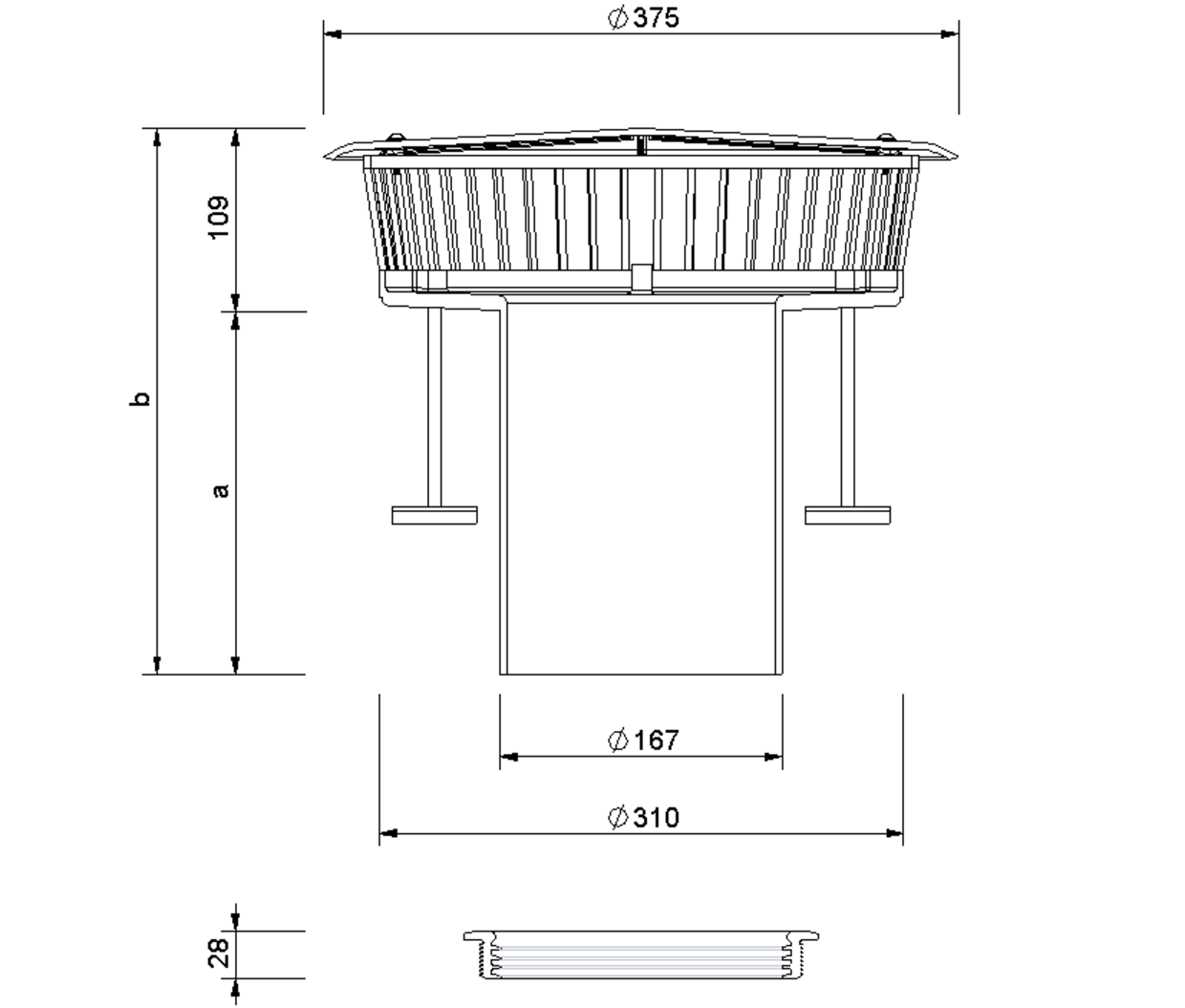

Technical drawing
| Damming height from-to (mm) | a (mm) | b (mm) |
|---|---|---|
| 25 - 105 | 114 | 223 |
| 150 - 200 | 214 | 323 |
| 105 - 150 | 214 | 323 |

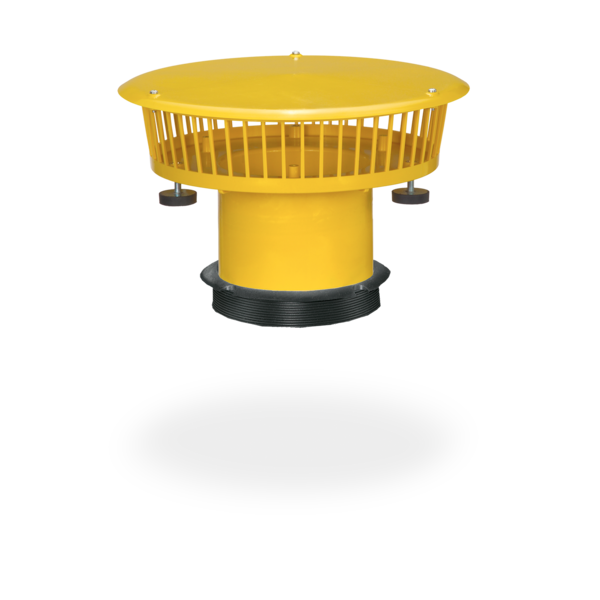

SitaIndra retaining element, made of polyamide, according to DIN EN 1253-2, for SitaIndra roof outlets for emergency drainage, for retaining heights of 25 mm – 105 mm, 85 mm – 150 mm or 135 mm – 200 mm, with multi-lip angled sealing ring to seal the retaining element against the roof outlet. With three infinitely height-adjustable rubber-metal buffers, installation area per foot: 19.6 cm², with galvanised threaded rod M8 x 90 mm, M8 x 140 mm, M8 x 190 mm with bolted sealed cover which can be removed for inspection, housing with 51 surrounding ribs, in yellow signal colour. Retaining heights are infinitely adjustable, with large inlet pot to increase discharge capacity, supply and install to professional standards.

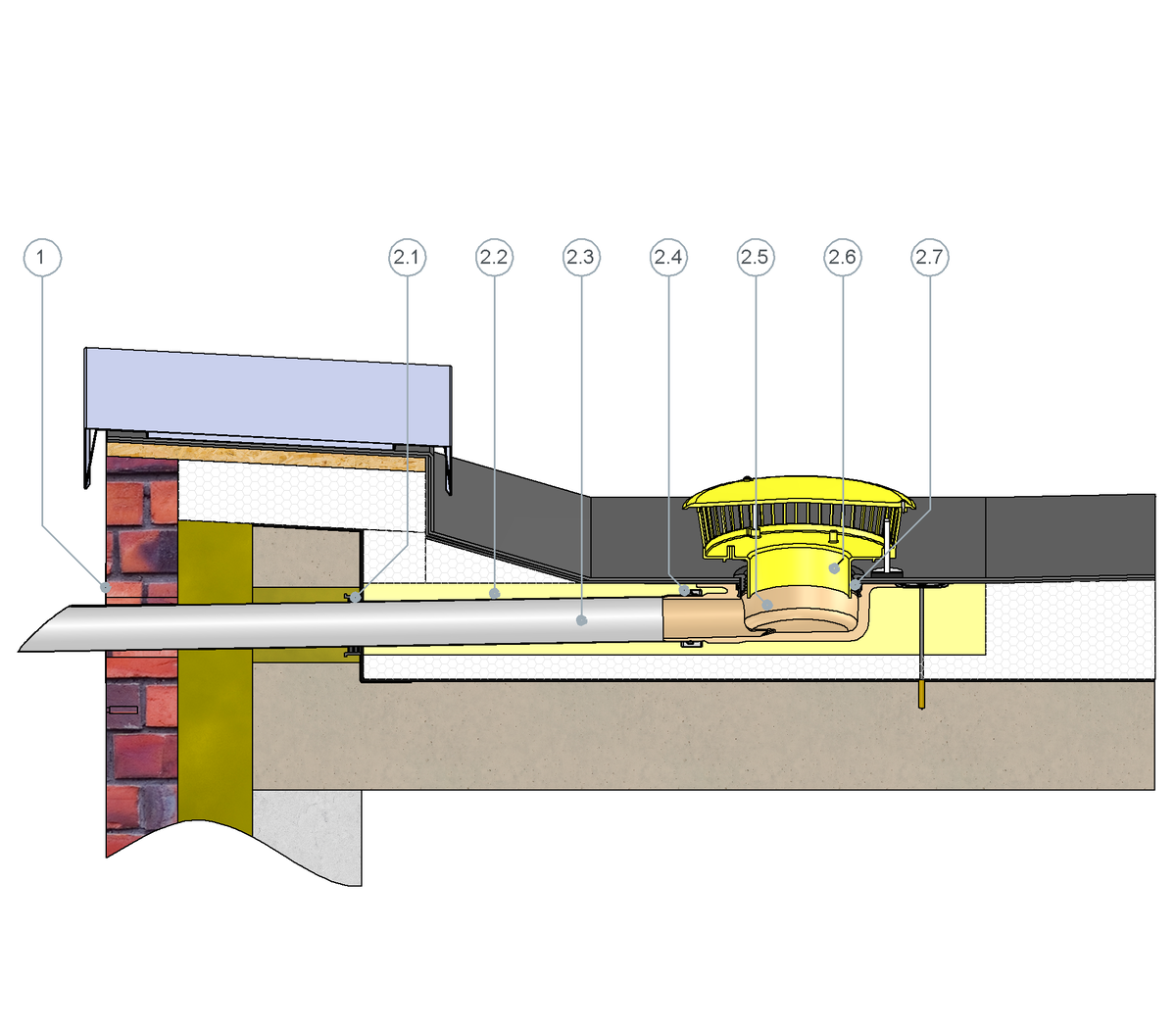

SitaIndra emergency drainage set as waterspout in a non-ventilated roof structure
SitaIndra emergency drainage set consisting of:
2.1 SitaMore vapour barrier plate flex
2.2 SitaIndra insulating body
2.3 SitaPipe Edelstahl pipe
2.4 SitaPipe Edelstahl safety clamp
2.5 SitaIndra base body
2.6 SitaIndra retaining element
2.7 Sealing ring
- Sealing
- Thermal insulation
- Vapour barrier
- Substructure
- Parapet lead-through with joint tape
SitaIndra emergency drainage as waterspout in a non-ventilated roof structure with greenery
1.1 Height-adjustable rubber feet
1.2 Sealing ring
1.3 Closed cover
1.4 Retaining element
1.5 SitaIndra base body
1.6 SitaPipe Edelstahl safety clamp
1.7 SitaIndra insulating body
1.8 SitaPipe Edelstahl pipe
1.9 SitaMore vapour barrier plate flex
2 SitaAttika cladding cover plate
- roof greenery according to system provider
- drainage mat
- building protection mat
- Sealing
- Heat insulation
- Vapour barrier
- Substructure
| SitaIndra | Article no. | |||
|---|---|---|---|---|
Retaining element | ||||
| SitaIndra | 25 - 105 | 109075 | Show product | |
| SitaIndra | 105 - 150 | 109076 | Show product | |
| SitaIndra | 150 - 200 | 109077 | Show product |
