SitaMore

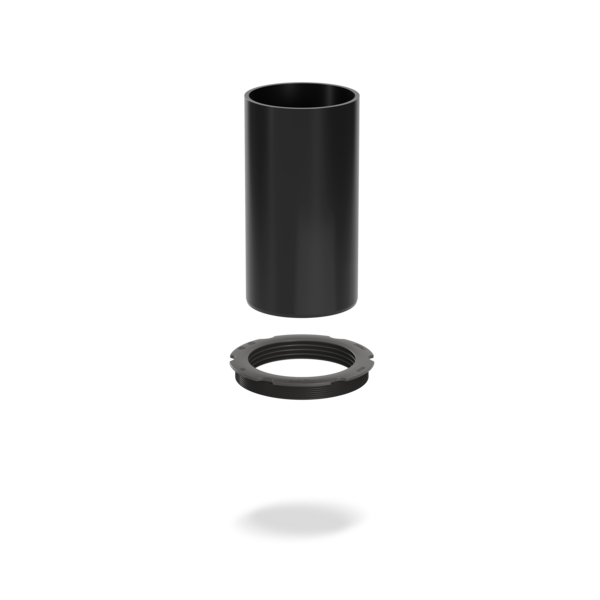

Retaining ring
- Products
Accessories
Retaining ring
Attributes
- Resistant to normal environmental influences
- Impact and shock resistant
- Long lifespan

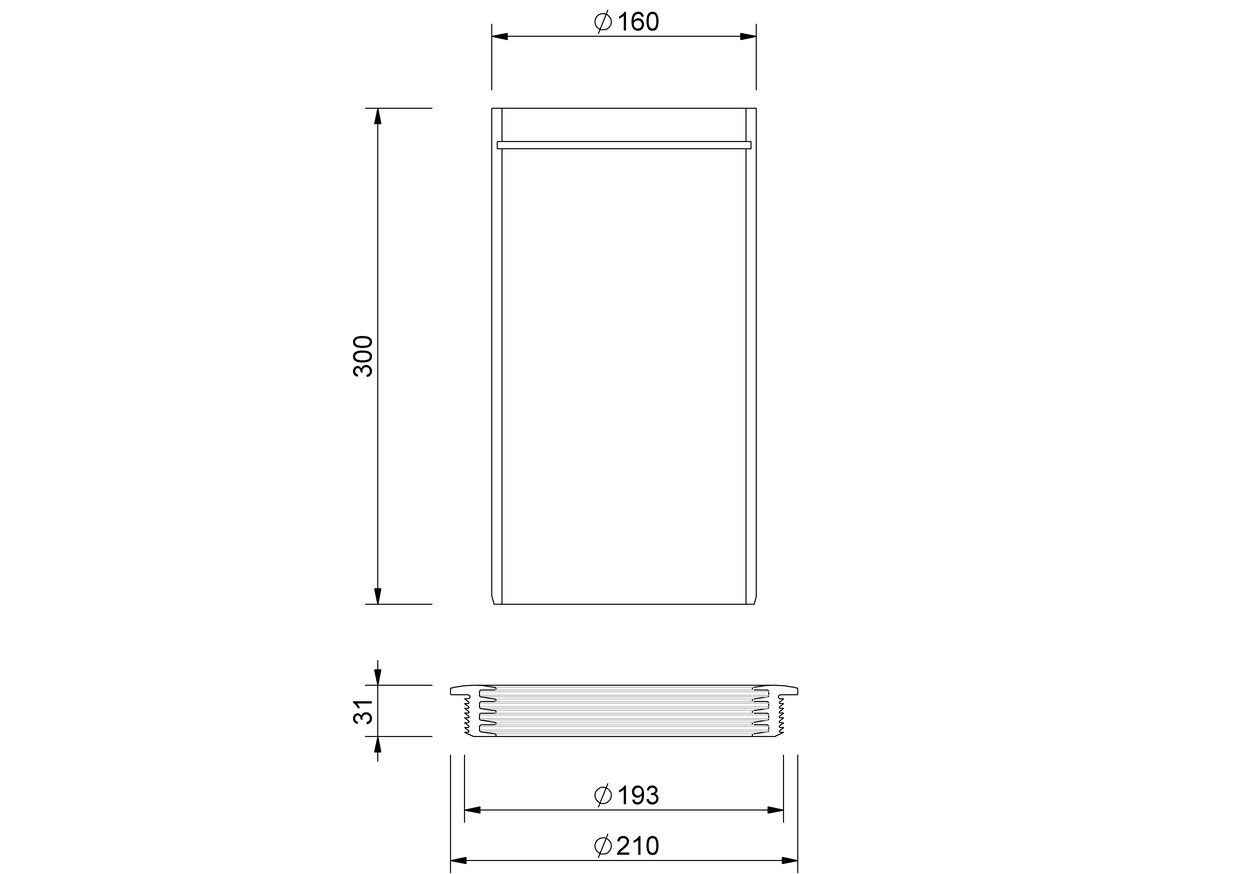

Technical drawing
| For model/series | Damming height from-to (mm) |
|---|---|
| SitaIndra, SitaStandard, SitaMulti | 20 - 260 |
Performance text
Installation Examples
Downloads
Article selection
SitaMore retaining ring for emergency drainage, made of PE-HD for SitaIndra, SitaStandard, SitaMulti roof outlets, length 300 mm, with sealing ring and lubricant, supply and install to professional standards.
SitaIndra with SitaMore retaining ring in a non-ventilated roof structure with slab paving on support pads
1 SitaAttika cladding cover plate
SitaIndra without dome grate consisting of:
2.1 Vapour barrier plate flex
2.2 Insulating body
2.3 Stainless steel tube
2.4 Edelstahl safety clamp
2.5 Base body with connection sleeve of choice
SitaMore retaining ring consisting of:
3.1 Retaining ring
3.2 Sealing ring
SitaDrain® Terra consisting of:
4.1 Inspection grate
4.2 Frame
4.3 Height-adjustable rubber feet
SitaIndra without dome grate consisting of:
2.1 Vapour barrier plate flex
2.2 Insulating body
2.3 Stainless steel tube
2.4 Edelstahl safety clamp
2.5 Base body with connection sleeve of choice
SitaMore retaining ring consisting of:
3.1 Retaining ring
3.2 Sealing ring
SitaDrain® Terra consisting of:
4.1 Inspection grate
4.2 Frame
4.3 Height-adjustable rubber feet
Non-ventilated roof structure to the general rules of engineering with:
- Slab paving on support pads
- Protective mat
- Sealing
- Thermal insulation
- Vapour barrier
- Substructure
- Parapet lead-through with joint tape
SitaIndra with SitaMore retaining ring in a non-ventilated roof structure with slabs and junction channel in a gravel bed
1 SitaAttika cladding cover plate
2 SitaMore sealing sleeve for WDVS
SitaIndra without dome grate consisting of:
3.1 SitaMore vapour barrier plate flex
3.2 SitaIndra insulating body
3.3 SitaPipe Edelstahl pipe
3.4 SitaIndra base body
3.5 SitaPipe Edelstahl safety clamp
4 SitaDrain® gravel strip
SitaMore retaining ring consisting of:
5.1 Retaining ring
5.2 Sealing ring
SitaDrain® Terra consisting of:
6.1 Inspection grate
6.2 Frame
6.3 Height-adjustable rubber feet
7 SitaDrain® junction channel
2 SitaMore sealing sleeve for WDVS
SitaIndra without dome grate consisting of:
3.1 SitaMore vapour barrier plate flex
3.2 SitaIndra insulating body
3.3 SitaPipe Edelstahl pipe
3.4 SitaIndra base body
3.5 SitaPipe Edelstahl safety clamp
4 SitaDrain® gravel strip
SitaMore retaining ring consisting of:
5.1 Retaining ring
5.2 Sealing ring
SitaDrain® Terra consisting of:
6.1 Inspection grate
6.2 Frame
6.3 Height-adjustable rubber feet
7 SitaDrain® junction channel
Non-ventilated roof structure with slab paving in a gravel bed to the general rules of engineering with:
- Slab paving in gravel bed
- Drainage
- Protective mat
- Waterproofing
- Thermal insulation
- Vapour barrier
- Substructure
- Attic breakthrough with joint tape
SitaIndra with SitaMore retaining ring in a non-ventilated roof structure with slabs in a gravel bed on drainage
1 SitaAttika cladding cover plate
2 SitaMore sealing sleeve for WDVS
SitaIndra without dome grate consisting of:
3.1 SitaMore vapour barrier plate flex
3.2 SitaIndra insulating body
3.3 SitaPipe Edelstahl pipe
3.4 SitaIndra base body
3.5 SitaPipe Edelstahl safety clamp
4 SitaDrain® gravel strip
SitaMore retaining ring consisting of:
5.1 Retaining ring
5.2 Sealing ring
SitaDrain® Terra consisting of:
6.1 Inspection grate
6.2 Frame
6.3 Height-adjustable rubber feet
7 SitaDrain junction channel
2 SitaMore sealing sleeve for WDVS
SitaIndra without dome grate consisting of:
3.1 SitaMore vapour barrier plate flex
3.2 SitaIndra insulating body
3.3 SitaPipe Edelstahl pipe
3.4 SitaIndra base body
3.5 SitaPipe Edelstahl safety clamp
4 SitaDrain® gravel strip
SitaMore retaining ring consisting of:
5.1 Retaining ring
5.2 Sealing ring
SitaDrain® Terra consisting of:
6.1 Inspection grate
6.2 Frame
6.3 Height-adjustable rubber feet
7 SitaDrain junction channel
Non-ventilated roof structure with slab paving on drainage with:
- Slab paving
- Split bed
- Drainage
- Building protection mat
- Sealing
- Thermal insulation
- Vapour barrier
- Substructure
- Parapet opening with joint tape
| SitaMore | Article no. | |||
|---|---|---|---|---|
Retaining ring | ||||
| SitaIndra, SitaStandard, SitaMulti | 20 - 260 | 109087 | Show product |
