SitaMore

Fire protection sleeve

Attributes

Very low installed height of sleeve
Can be used in wet rooms
Quick and easy to install

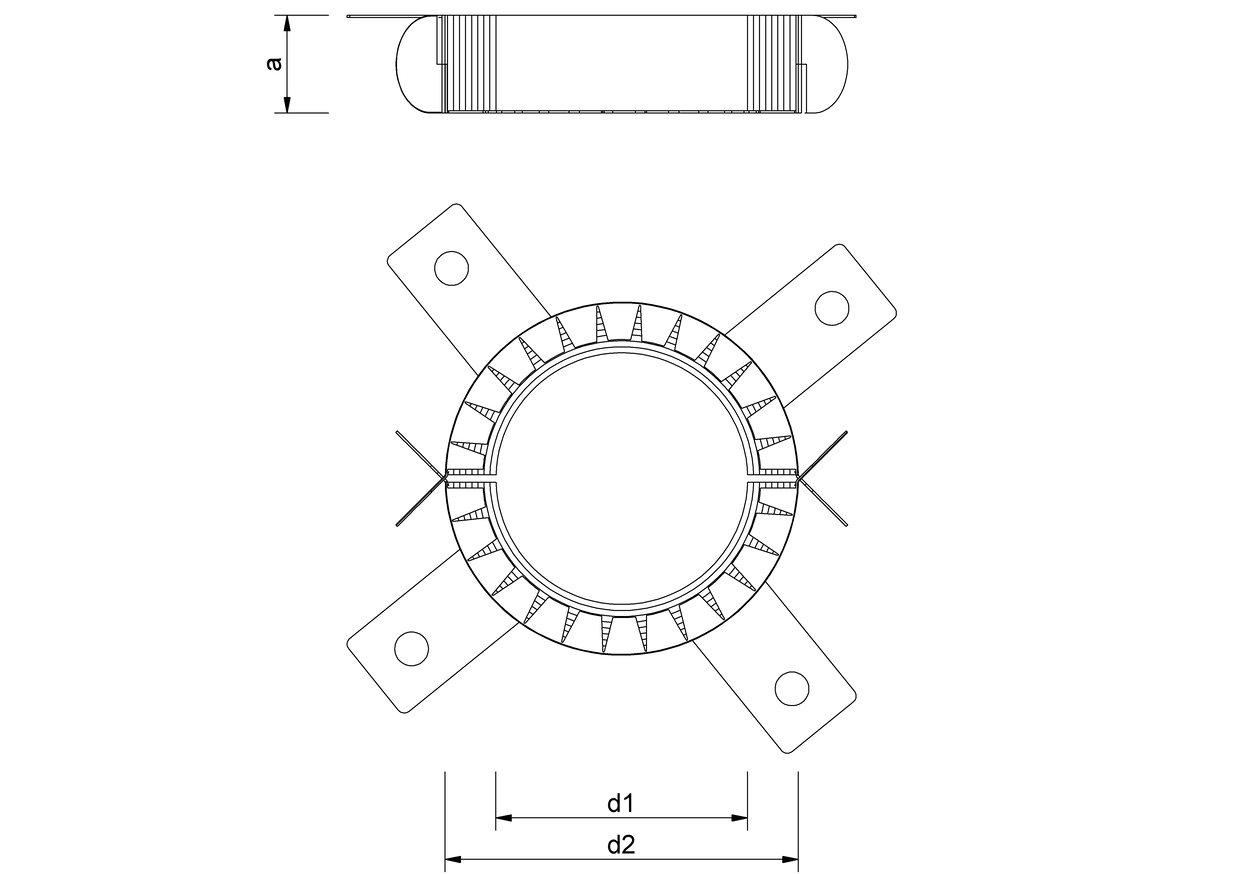

Technical drawing

Size DN	External diameter OD (mm)	a (mm)	d1 (mm)	d2 (mm)
200	200	40	204	284
125	125	40	135	172
160	160	40	169	220
63	63	26	70	94
90	90	26.6	100	132
250	250	51.5	264	353
50	50	26	57	68
70	75	26	83	106
315	315	51.5	328	417
100	110	26.6	120	155
40	40	26	48	58

Performance text

SitaMore fire protection sleeve, pipe insulation to ETAG 026 Part 2:2008-01-01 in fire resistance class EI 120-U/U or EI 240-U/C to EN 13501-2 for fire protection on inflammable pipes to ETA-11/0208, dated 22 June 2011. To seal openings in internal walls at least 100 mm thick and ceilings at least 150 mm thick, classified to EN 13501-2. To prevent the spread of fire and smoke, supply and install to professional standards.

MultiCAD und BIM-Daten

In order for the external content to be displayed at this location, you must accept the cookies of the category "Preferences".
You can adjust the cookie settings here.

Downloads

Technical information

PDF Tech_Info_SitaDSS_PE_Rohrsystem.pdf

Technical drawings

Article selection

SitaMore			Article no.
Fire protection sleeve
	DN 100	SitaDSS PE pipe system	80130011	Show product
	DN 125	SitaDSS PE pipe system	80130012	Show product
	DN 160	SitaDSS PE pipe system	80130016	Show product
	DN 200	SitaDSS PE pipe system	80130020	Show product
	DN 250	SitaDSS PE pipe system	80130025	Show product
	DN 315	SitaDSS PE pipe system	80130031	Show product
	DN 40	SitaDSS PE pipe system	80130040	Show product
	DN 50	SitaDSS PE pipe system	80130050	Show product
	DN 70	SitaDSS PE pipe system	80130075	Show product
	DN 90	SitaDSS PE pipe system	80130090	Show product
	DN 63	SitaDSS PE pipe system	80135663	Show product
