SitaMore

Sealing sleeve

IC_SitaEasy_SitaAttika_Fassaden-Abdeckplatte.tif

Foto_S_SitaMore_Dichtmanschette_WDVS.tif

Attributes

Render-compatible fleece sleeve for use on walls that will be rendered
Easy waterproofing even in confined spaces
Permanently flexible seal compensates for movements of the building

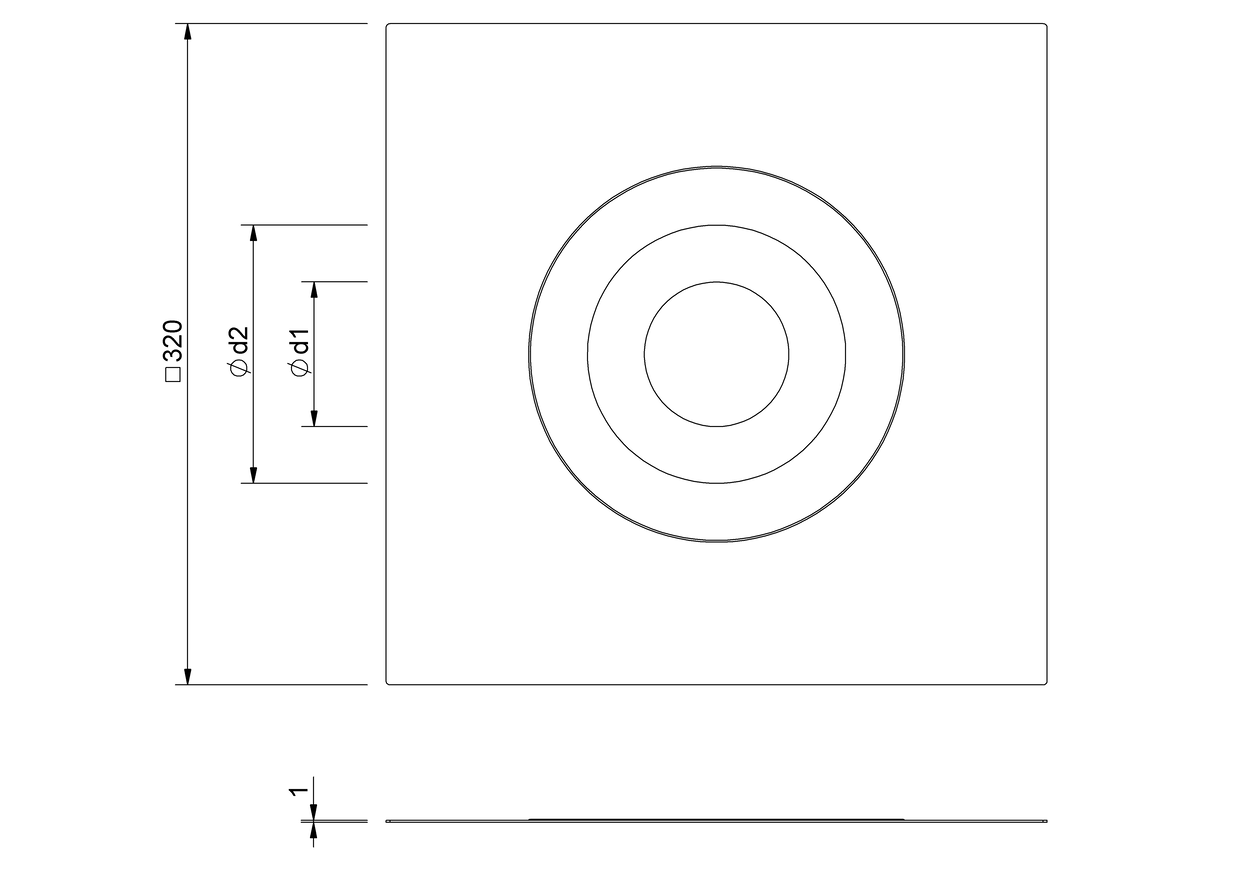

Technical drawing

Size DN	d1 (mm)	d2 (mm)
100	70	125

Performance text

SitaMore sealing sleeve for WDVS, made of fleece-butyl, one-part render-compatible air sealing sleeve designed to be concealed in plastic, for the rapid and airtight sealing of pipe fairleads in the thermal insulation composite system according to DIN 4108-7 and GEG, in sizes DN 70 and DN 100, measuring 320 x 320 mm, with highly flexible EPDM seal, self-adhesive render-compatible fleece butyl collar for permanent bonding to the substrate (adhesion primer may be necessary) and between the fleece bonding surface and the render, supply and install to professional standards.

Installation Examples

SitaIndra with SitaMore retaining ring in a non-ventilated roof structure with slabs and junction channel in a gravel bed

1 SitaAttika cladding cover plate
2 SitaMore sealing sleeve for WDVS

SitaIndra without dome grate consisting of:
3.1 SitaMore vapour barrier plate flex
3.2 SitaIndra insulating body
3.3 SitaPipe Edelstahl pipe
3.4 SitaIndra base body
3.5 SitaPipe Edelstahl safety clamp

4 SitaDrain® gravel strip

SitaMore retaining ring consisting of:
5.1 Retaining ring
5.2 Sealing ring

SitaDrain® Terra consisting of:
6.1 Inspection grate
6.2 Frame
6.3 Height-adjustable rubber feet

7 SitaDrain® junction channel

Non-ventilated roof structure with slab paving in a gravel bed to the general rules of engineering with:

Slab paving in gravel bed
Drainage
Protective mat
Waterproofing
Thermal insulation
Vapour barrier
Substructure
Attic breakthrough with joint tape

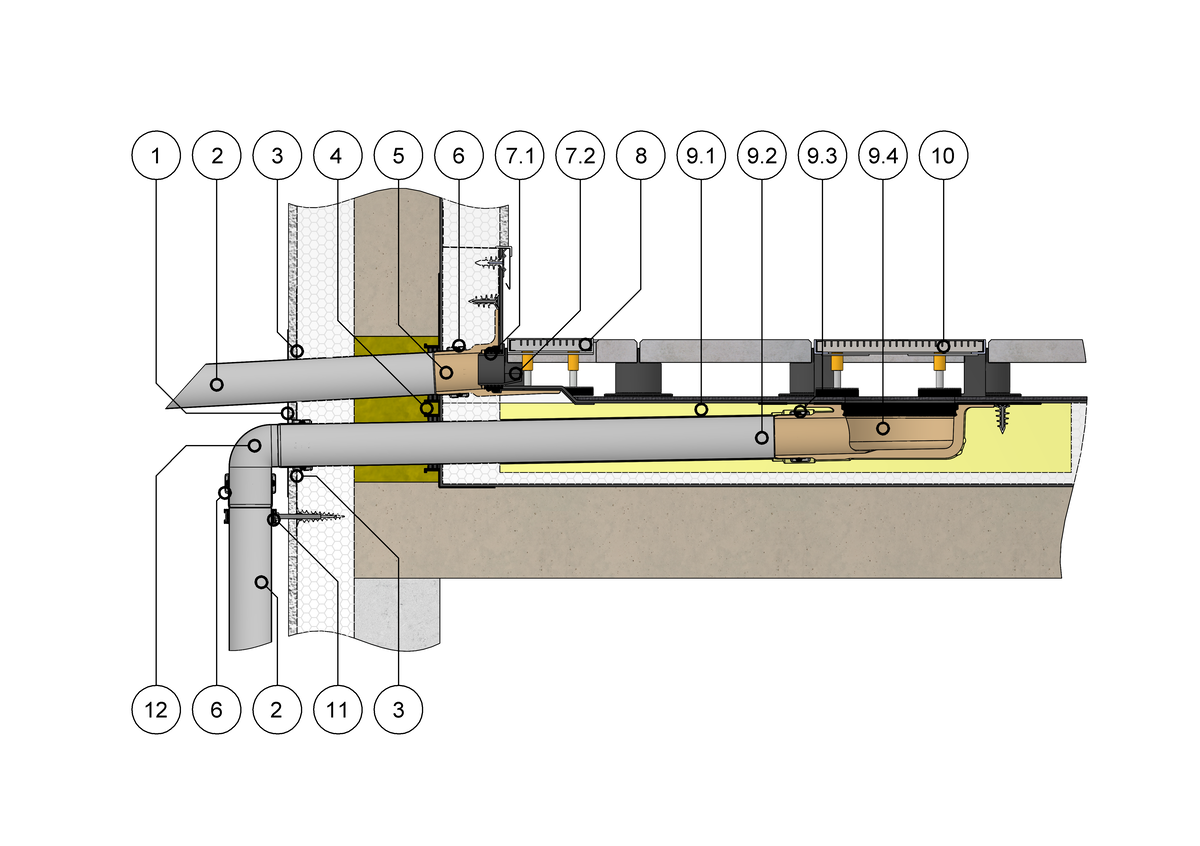

SitaMore vapour barrier plate Duoflex with SitaIndra and SitaEasy

1 Cladding cover plate special production
2 SitaPipe Edelstahl pipe
3 SitaMore sealing sleeve WDVS
4 SitaMore vapour barrier plate Duoflex
5 SitaEasy
6 SitaPipe Edelstahl safety clamp

SitaEasy retaining element consisting of:
7.1 Sealing ring
7.2 Base body

8 SitaDrain® Klassik

SitaIndra without dome grate consisting of:
9.1 Insulating body
9.2 Stainless steel connection pipe
9.3 Safety clamp
9.4 Inlet pot

10 SitaDrain® Terra
11 SitaPipe Edelstahl pipe clamp
12 SitaPipe Edelstahl bend

Non-ventilated roof structure with slab paving on support pad to with:

Slab paving
Support pad
Protective mat
Sealing
Thermal insulation
Vapour barrier
Substructure
