SitaPipe PP

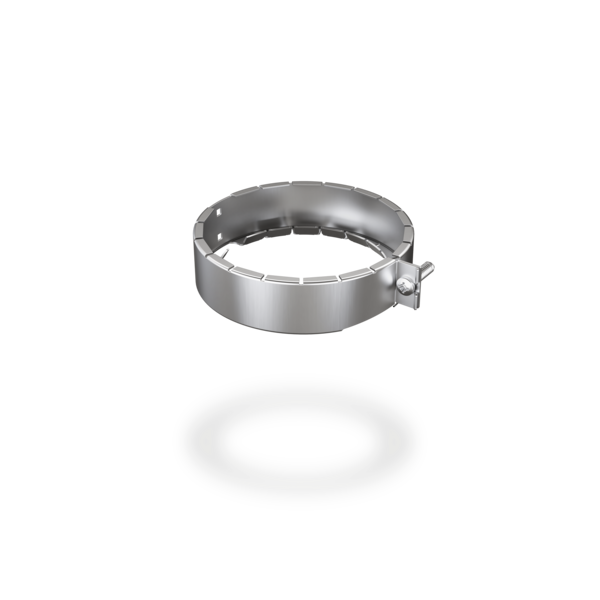

safety clamp
Attributes
- Mechanical resistance, very high mechanical strength, even against impacts up to -10°C
- System resistant to underpressures up to - 400 mbar and overpressures up to 1.5 bar
- Good acoustic comfort: 16 dB(A) in accordance with EN 14366 and 18 dB(A) in accordance with DIN 4109 at a flow rate of 2 l/s
- Ecological because it is made of fully recyclable material
- Can be connected to other materials such as SitaPipe stainless steel, PE, PVC and PP

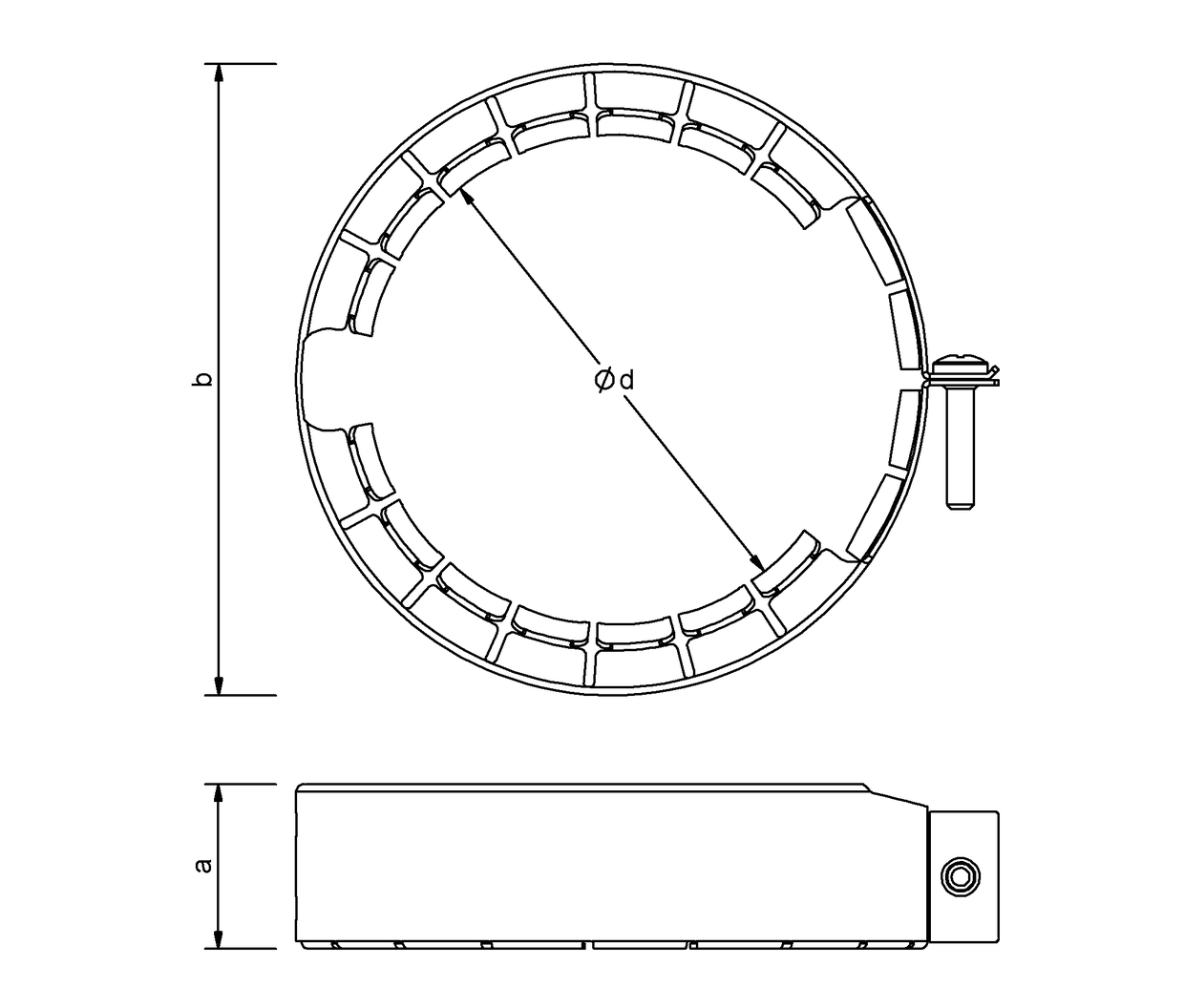

Technical drawing
| Size DN | External diameter OD (mm) | a (mm) | b (mm) | d (mm) |
|---|---|---|---|---|
| 50 | 50 | 34.5 | 68.4 | 49 |
| 70 | 75 | 33.3 | 98.3 | 73 |
| 100 | 110 | 36.5 | 140 | 109 |
| 90 | 90 | 35 | 114.3 | 88 |
| 125 | 125 | 48.5 | 153.5 | 124 |
| 150 | 160 | 50 | 196 | 158.5 |
