SitaPipe PP

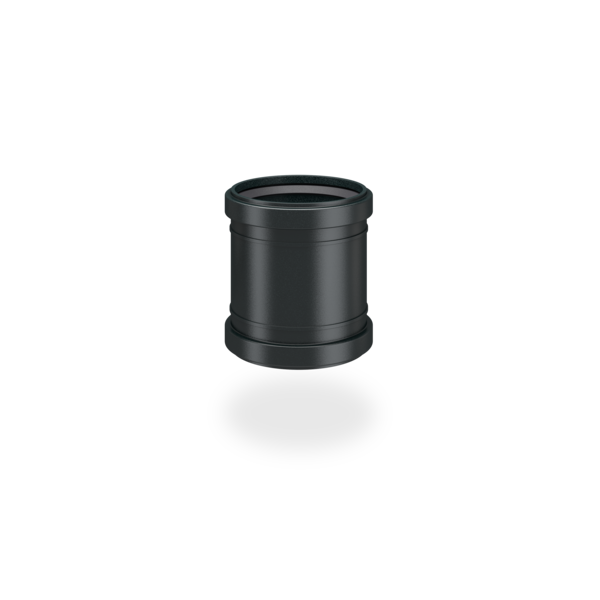

Slide-over coupler
Attributes
- White internal surfaces to simplify video inspections
- Mechanical resistance, very high mechanical strength, even against impacts up to -10°C
- System resistant to underpressures up to - 400 mbar and overpressures up to 1.5 bar
- Good acoustic comfort: 16 dB(A) in accordance with EN 14366 and 18 dB(A) in accordance with DIN 4109 at a flow rate of 2 l/s
- Ecological because it is made of fully recyclable material
- Can be connected to other materials such as SitaPipe stainless steel, PE, PVC and PP

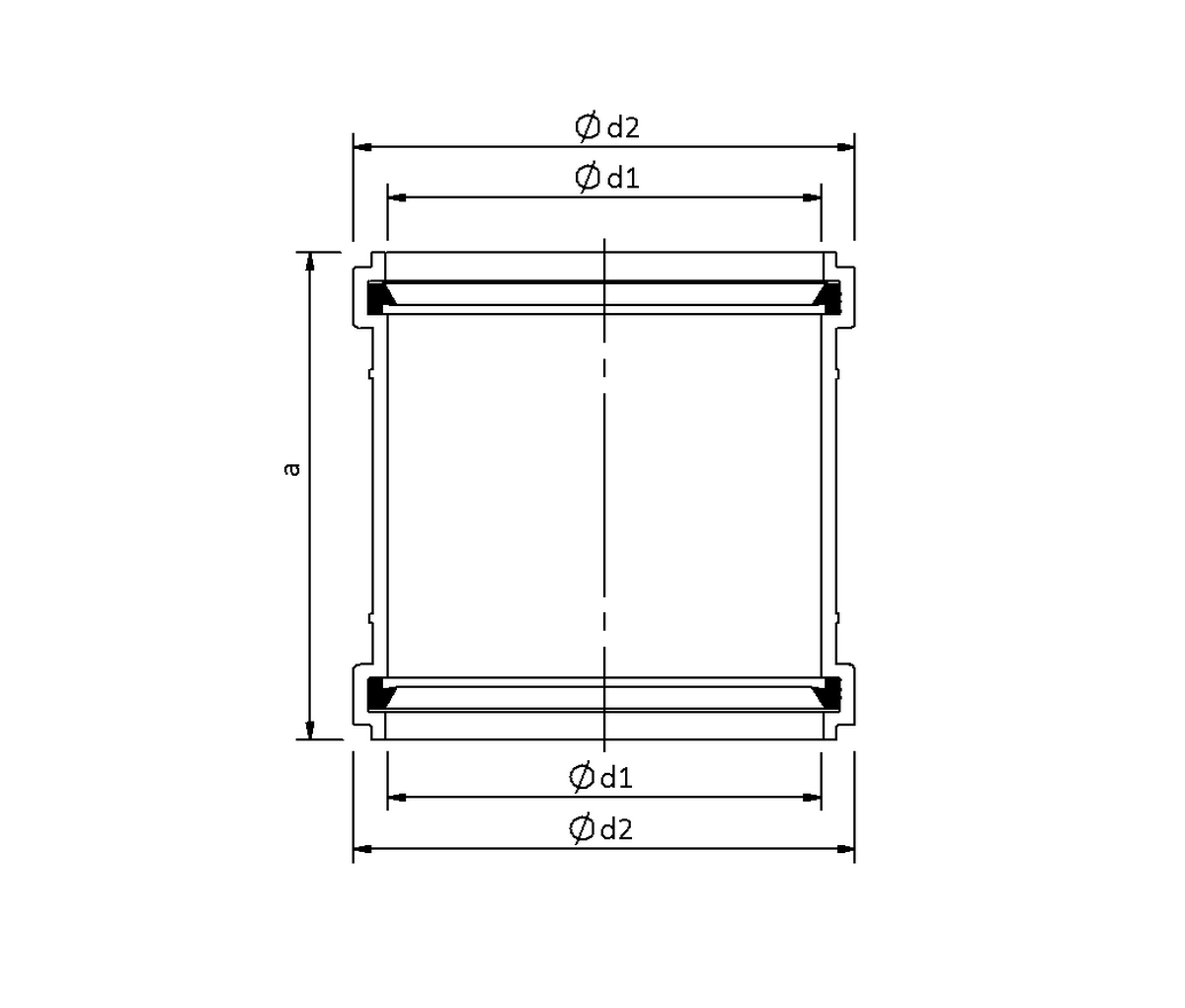

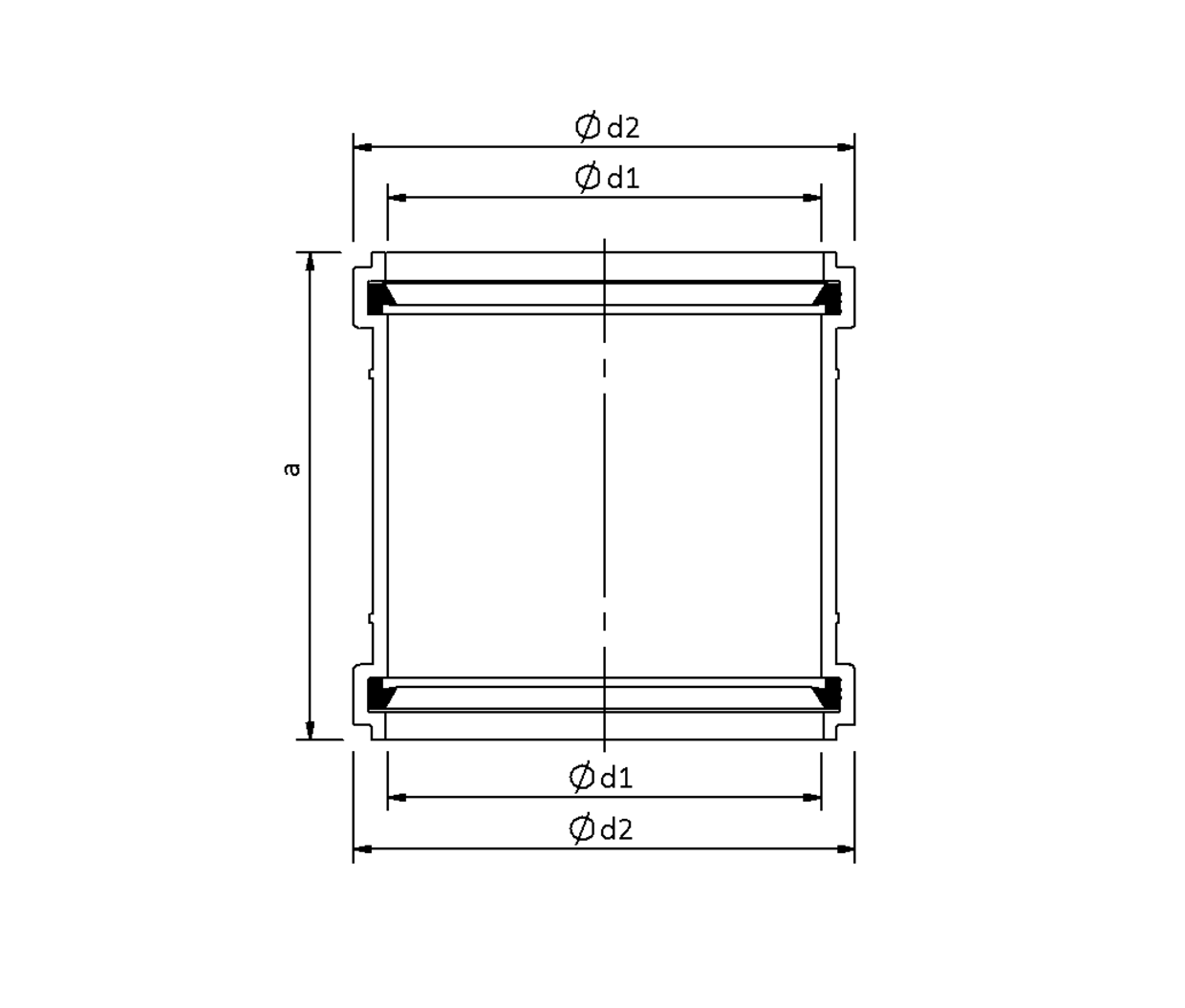

Technical drawing
| Size DN | External diameter OD (mm) | a (mm) | d1 (mm) | d2 (mm) |
|---|---|---|---|---|
| 100 | 110 | 136 | 110 | 129 |
| 125 | 125 | 147 | 125 | 146 |
| 150 | 160 | 180 | 160 | 185 |
| 70 | 75 | 120 | 75 | 91 |
| 50 | 50 | 104 | 50 | 64 |
| 90 | 90 | 120 | 90 | 106 |
