SitaStandard
Insulating body for extension element
- Products
Accessories
Insulating body for extension element

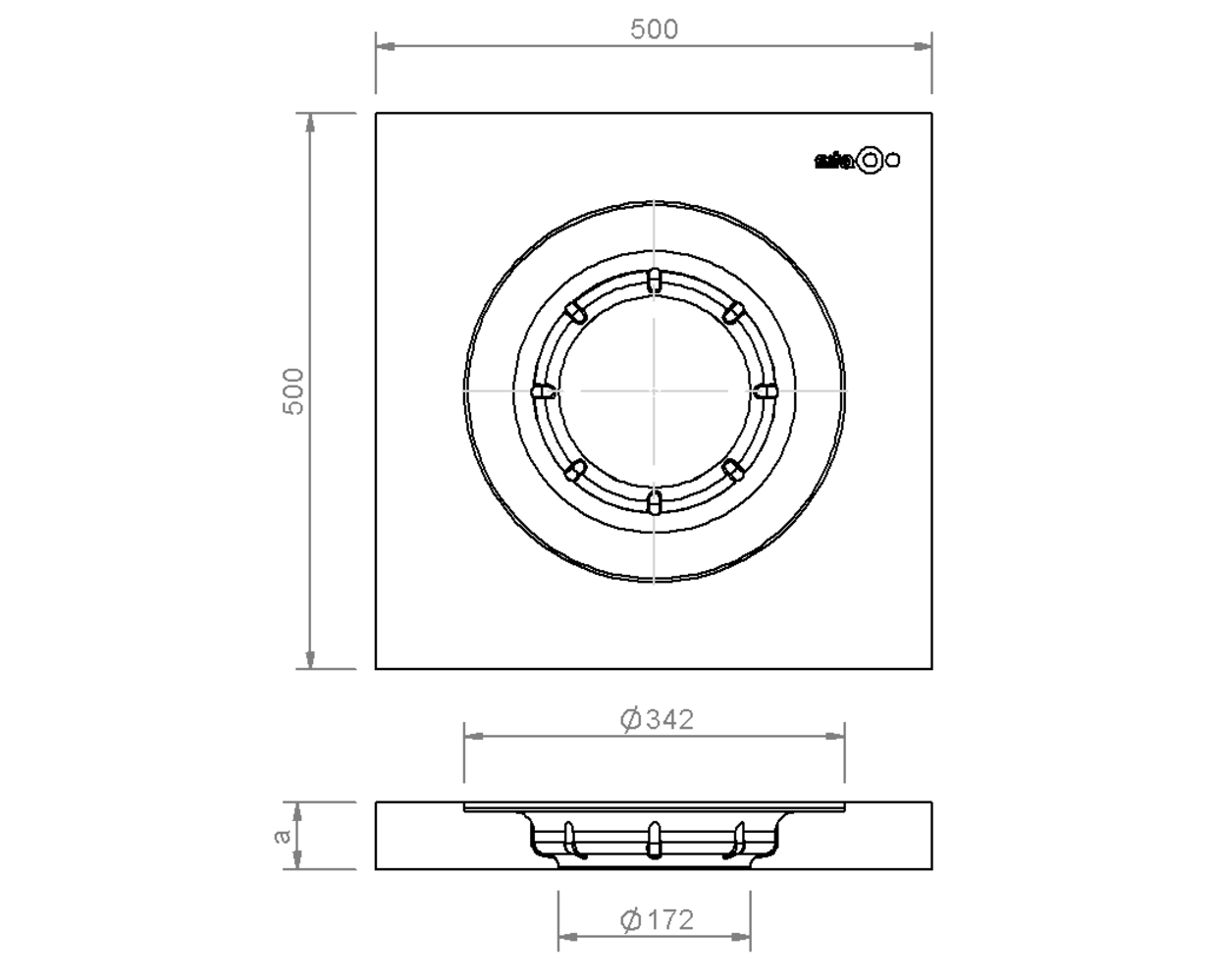

| a (mm) |
|---|
| 100 |
| 60 |

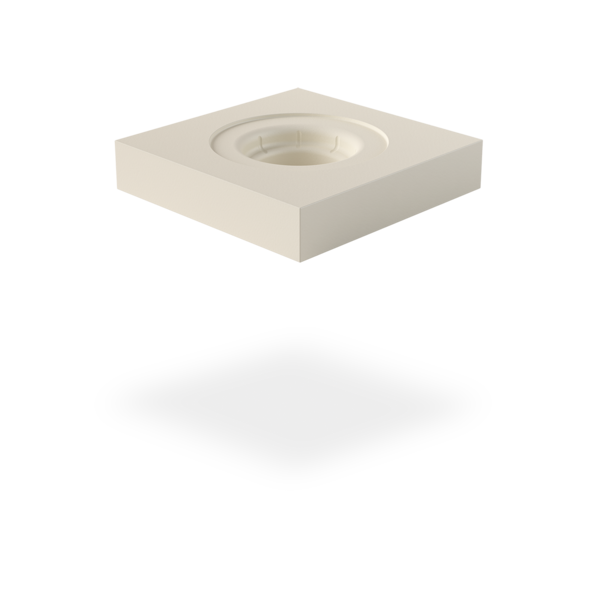

SitaStandard insulating body for extension unit, made of polyurethane, for easy bonding to the vapour barrier, without mechanical fastening of the extension unit by bonding to the insulation body, size 500 x 500 x 100 mm or 500 x 500 x 60 mm, thermal conductivity lambda=0.025 W/mK, compressive strength 200 kPa, density approx. 50 kg/m³, as an installation aid and thermal insulation for the prevention of thermal bridges, supply and install to professional standards.

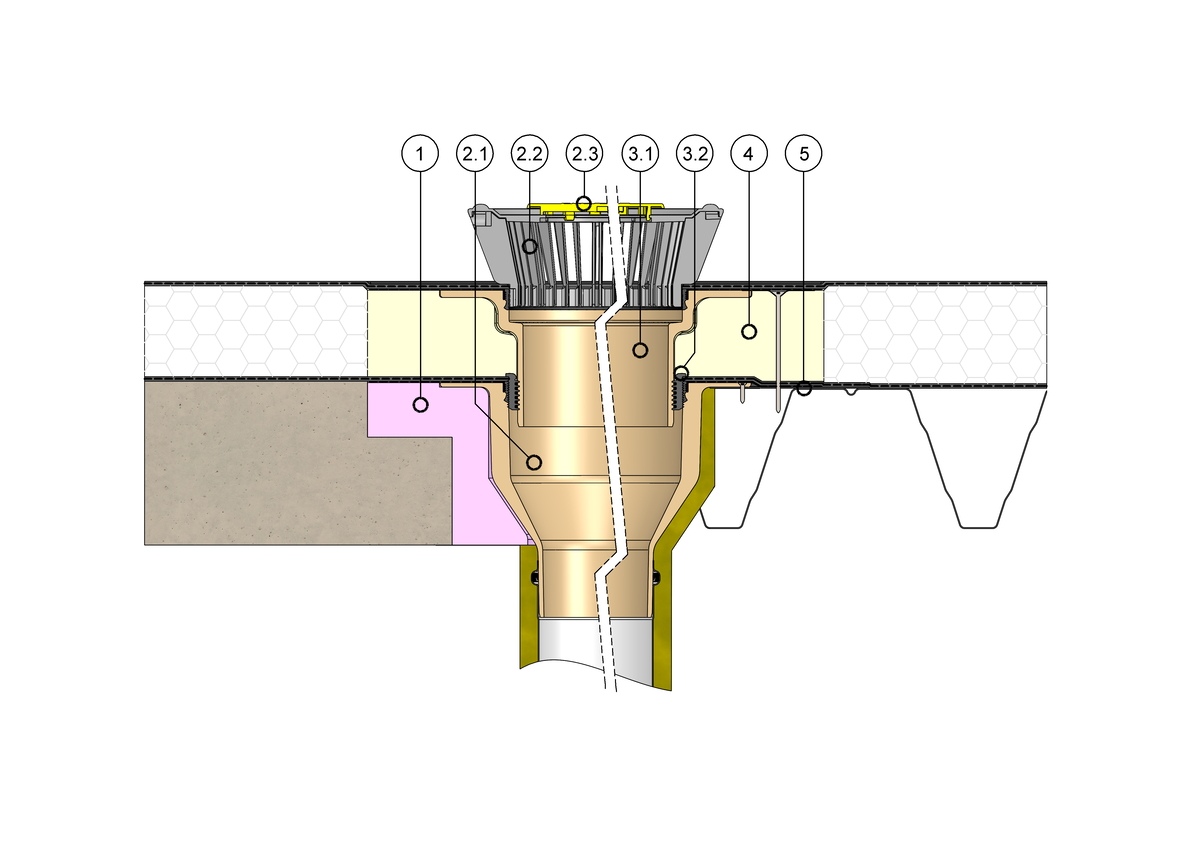

SitaStandard vertical, in a non-ventilated roof structure
SitaStandard vertical consisting of:
2.1 Base body with connection sleeve of choice
2.2 Dome grate base body
2.3 Dome grate cover
SitaStandard extension unit, consisting of:
3.1 Base body with connection sleeve of choice
3.2 Sealing ring
4 SitaStandard insulating body for extension unit
5 SitaMore reinforcement plate
- Waterproof membrane
- Thermal insulation
- Vapour barrier
- Substructure

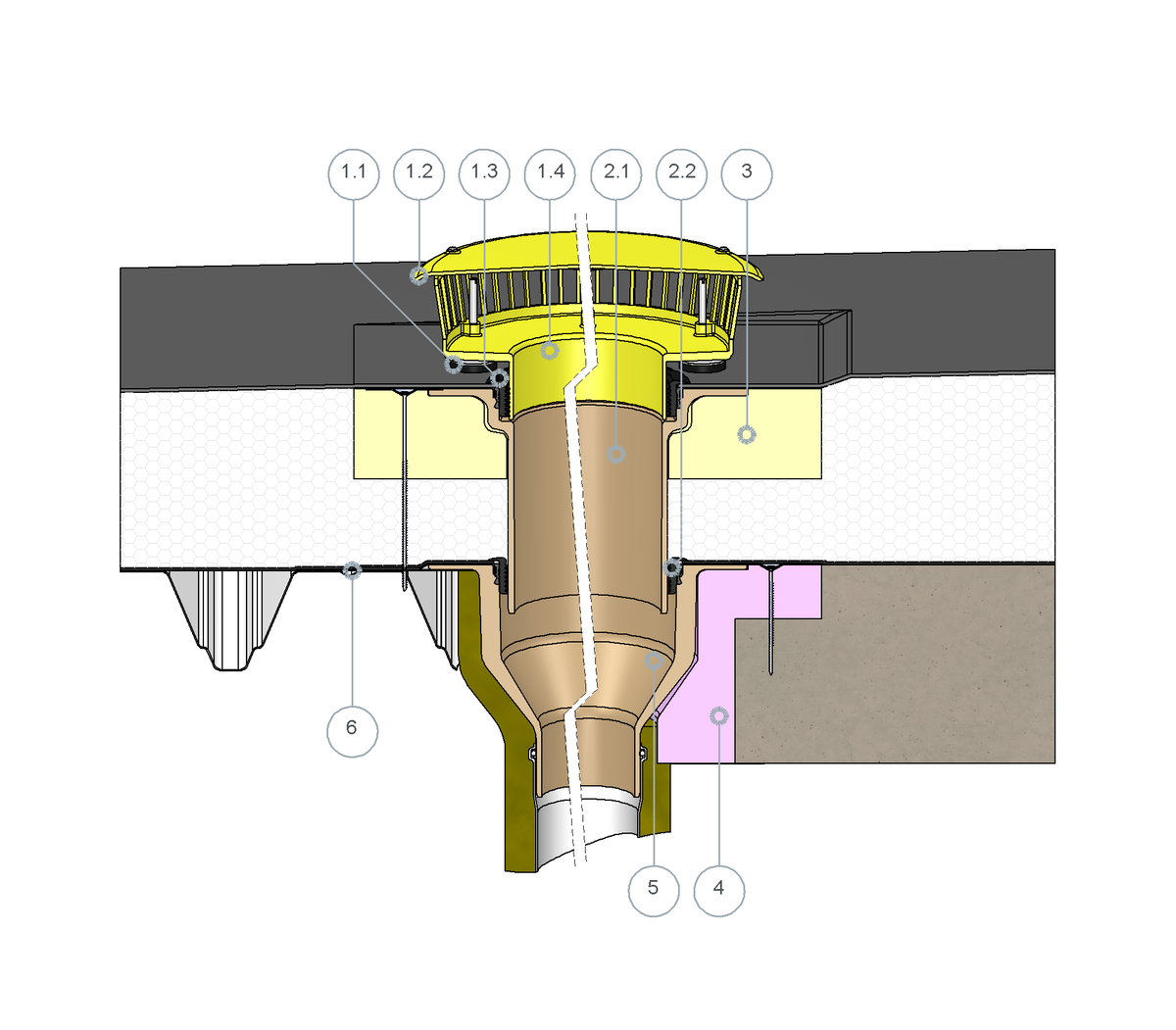

SitaStandard with retaining element and downpipe in a non-ventilated roof structure
1.1 Height-adjustable rubber-metal buffers
1.2 Closed cover
1.3 Sealing ring
1.4 Base body
SitaStandard extension unit consisting of:
2.1 Base body
2.2 Sealing ring
3 SitaStandard insulating body for extension unit
4 SitaStandard insulating body for outlet
5 SitaStandard vertical
6 SitaMore reinforcement plate
- Waterproof membrane
- Thermal insulation
- Vapour barrier
- Substructure
