SitaSteel

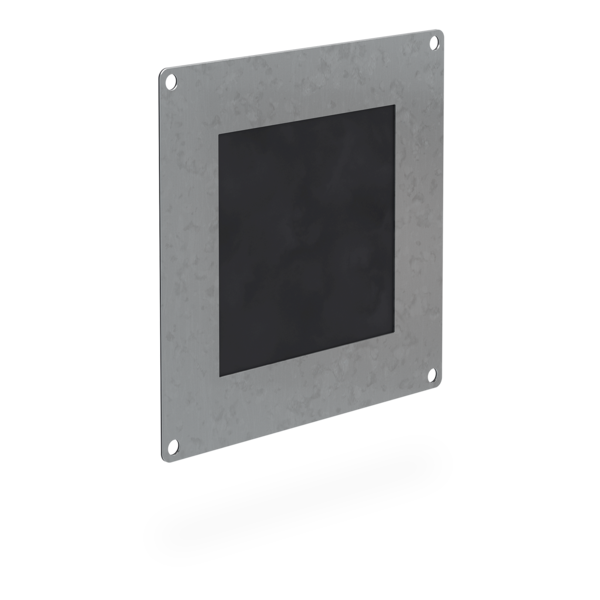

Vapour barrier plate
Attributes
- Individually adaptable
- For fixing to the parapet

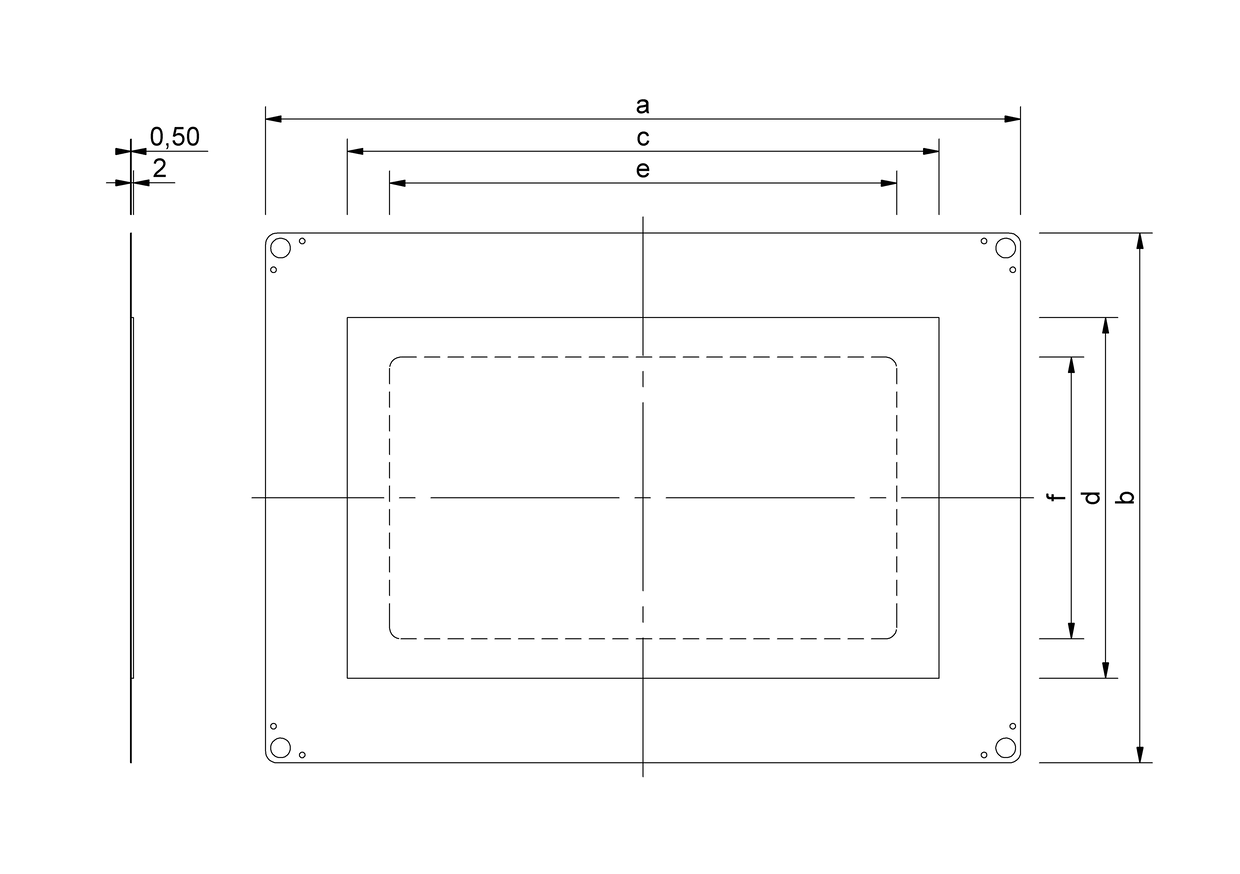

Technical drawing
| For model/series | a (mm) | b (mm) | c (mm) | d (mm) | e (mm) | f (mm) |
|---|---|---|---|---|---|---|
| SitaSteel rectangular waterspout 150 x 50 mm | 420 | 420 | 280 | 280 | 200 | 200 |
| SitaSteel rectangular waterspout 500 x 100 mm | 870 | 470 | 725 | 320 | 650 | 250 |
| SitaSteel rectangular waterspout 300 x 100 mm | 670 | 470 | 525 | 320 | 450 | 250 |
