SitaTrendy
Insulating body for rainwater outlet
- Products
Accessories
Insulating body for rainwater outlet
Attributes
- Pressure-resistant
- Stable dimensions
- Insensitive to moisture
- Resistant to rotting

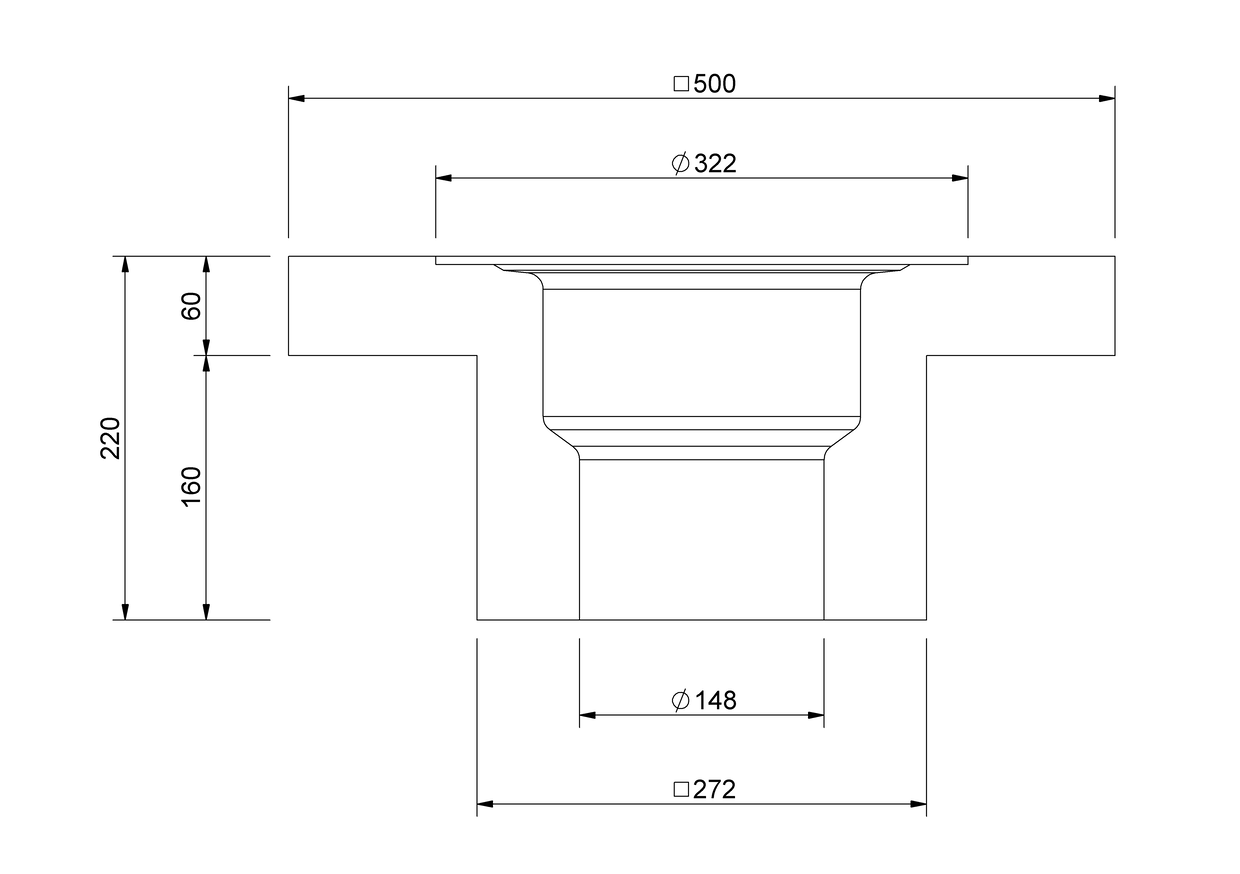

Technical drawing
Performance text
Installation Examples
MultiCAD und BIM-Daten
Downloads
Article selection
SitaTrendy insulating body for rainwater outlet made of extruded polystyrene foam, WLG 040, 500 mm x 500 mm x 220 mm, fire classification Euroclass E, to EN 13501-1. For thermal insulation and for use as concealed formwork, supply and installation to professional standards.
SitaTrendy in a non-ventilated roof structure
1 SitaMore reinforcement plate
2 SitaTrendy insulating body for extension unit
SitaTrendy screw-on flange extension unit, consisting of:
3.1 Sealing sleeves and screw-on flange
3.2 Sealing ring
3.3 Base body
SitaTrendy vertical consisting of:
4.1 Dome grate cover
4.2 Dome grate base body
4.3 Base body with connection sleeve of choice
5 SitaTrendy insulating body for outlet
2 SitaTrendy insulating body for extension unit
SitaTrendy screw-on flange extension unit, consisting of:
3.1 Sealing sleeves and screw-on flange
3.2 Sealing ring
3.3 Base body
SitaTrendy vertical consisting of:
4.1 Dome grate cover
4.2 Dome grate base body
4.3 Base body with connection sleeve of choice
5 SitaTrendy insulating body for outlet
Non-ventilated roof structure to the general rules of engineering with:
- Waterproof membrane
- Thermal insulation
- Vapour barrier
- Substructure
SitaTrendy screw-on flange in a non-ventilated roof structure with terrace slabs in a gravel bed
1 SitaTrendy insulating body for extension unit
SitaTrendy extension unit consisting of:
2.1 Sealing ring
2.2 Base body
SitaMore terrace kit consisting of:
3.1 End grate
3.2 Housing
3.3 Height adjustment ring
SitaTrendy screw-on flange vertical consisting of:
4.1 Base body
4.2 Loose flange, seals and screws
5 SitaTrendy insulating body for outlet
SitaTrendy extension unit consisting of:
2.1 Sealing ring
2.2 Base body
SitaMore terrace kit consisting of:
3.1 End grate
3.2 Housing
3.3 Height adjustment ring
SitaTrendy screw-on flange vertical consisting of:
4.1 Base body
4.2 Loose flange, seals and screws
5 SitaTrendy insulating body for outlet
Non-ventilated roof structure with slab paving in gravel bed to the general rules of engineering with:
- Slab paving
- Grit or gravel bed
- Drainage mat
- Protective mat
- Sealing
- Thermal insulation
- Vapour barrier
- Substructure
In order for the external content to be
displayed at this location, you must accept
the cookies of the category
"Preferences".
You can adjust the cookie settings here.
You can adjust the cookie settings here.
| SitaTrendy | Article no. | ||
|---|---|---|---|
Insulating body for rainwater outlet | |||
| SitaTrendy vertical | E159003 | Show product |
