SitaTurbo

Connecting sleeve

Foto_S_SitaTurbo_Anschlussmanschette_Bitumen_Unterlage.tif

Attributes

To suit the sealing membrane
Precise

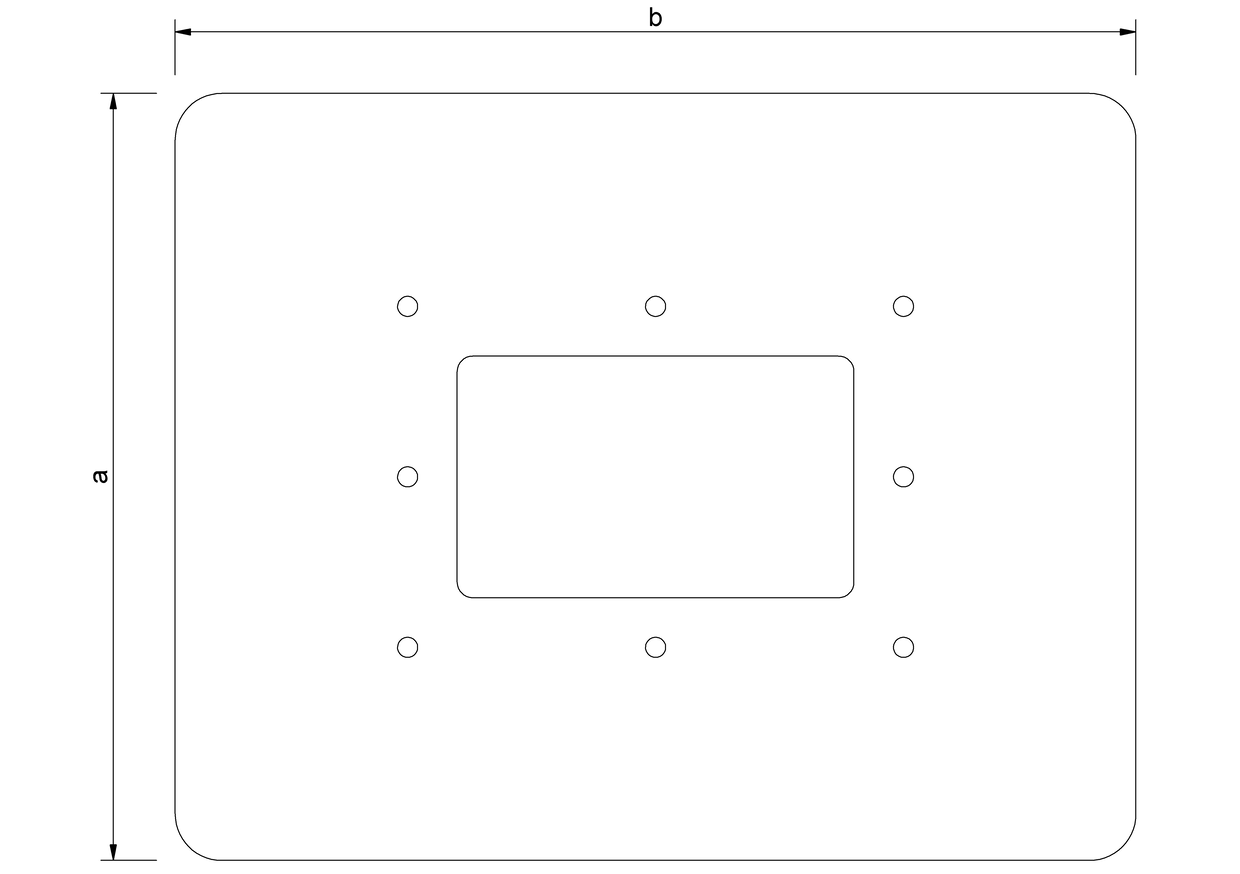

Technical drawing

roof waterproofing	a (mm)	b (mm)
Bitumen overlay	660	850
Bitumen underlay	495	620

Performance text MultiCAD und BIM-Daten

In order for the external content to be displayed at this location, you must accept the cookies of the category "Preferences".
You can adjust the cookie settings here.

Downloads

Technical information

PDF Tech_Info_SitaTurbo.pdf

Technical drawings

PDF TechnischeZeichnung_119170_en.pdf
PDF TechnischeZeichnung_119171_en.pdf
DWG TZ_DB_SitaTurbo_Anschlussmanschette_495_620.DWG
DWG TZ_DB_SitaTurbo_Anschlussmanschette_Oberlage_660_850.DWG

Article selection

SitaTurbo			Article no.
Connecting sleeve Bitumen
	bitumen underlay PYE G 200 S4	SitaTurbo, SitaTurbo Max	119170	Show product
	BauderKARAT green and white	SitaTurbo, SitaTurbo Max	119171	Show product
