SitaTurbo
Insulating body Polyurethane
Attributes
- Pressure-resistant
- Stable dimensions
- Resistant to rotting

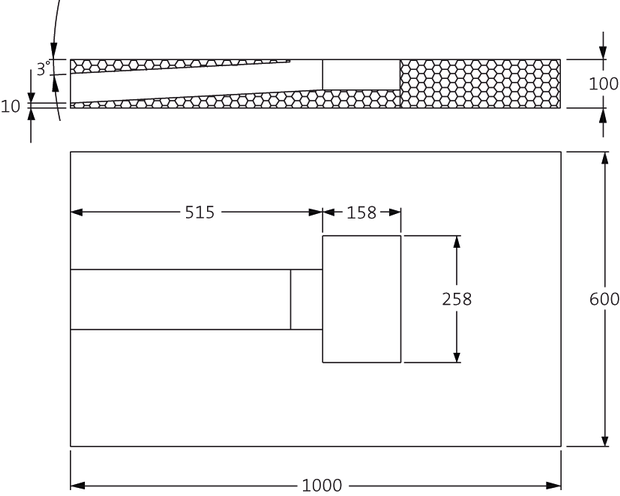

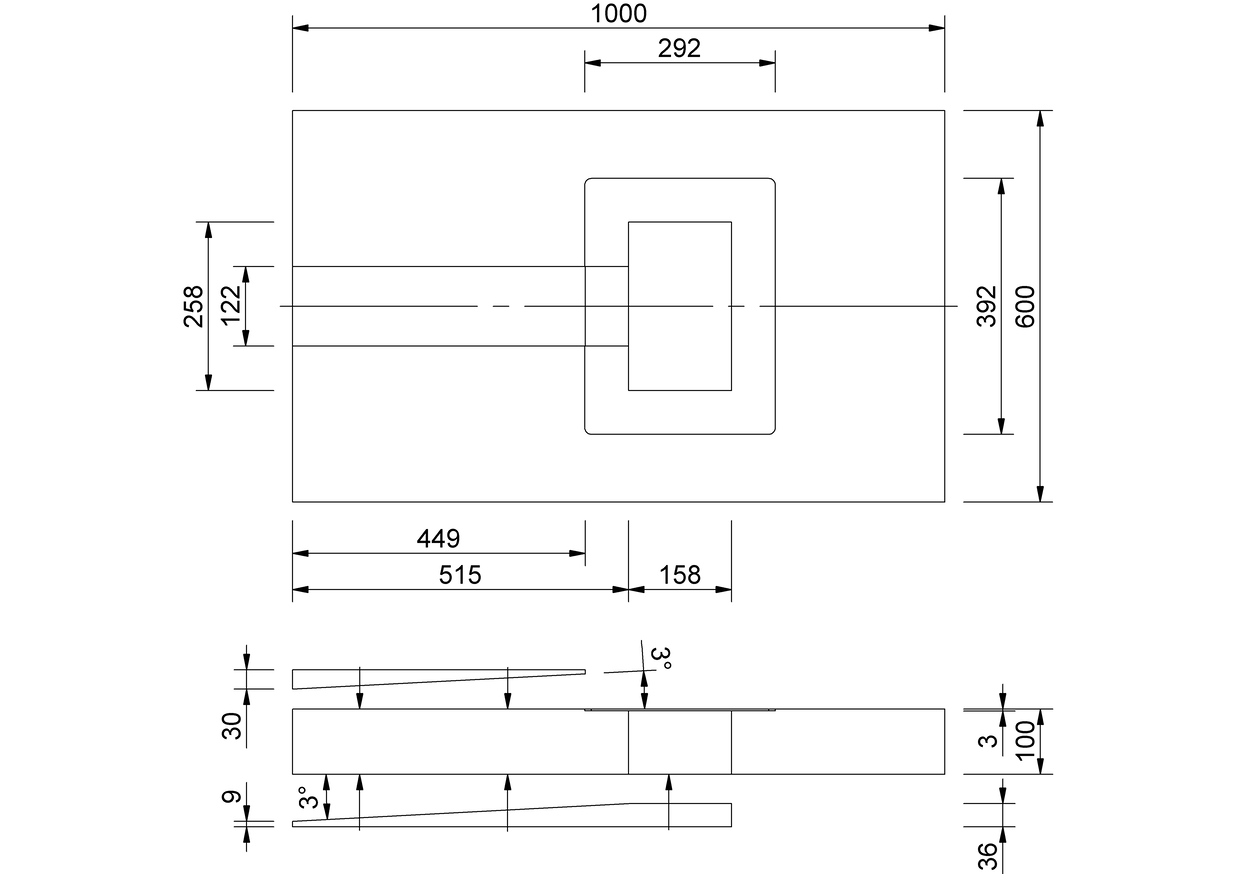

Technical drawing
Performance text
Installation Examples
MultiCAD und BIM-Daten
Downloads
Article selection

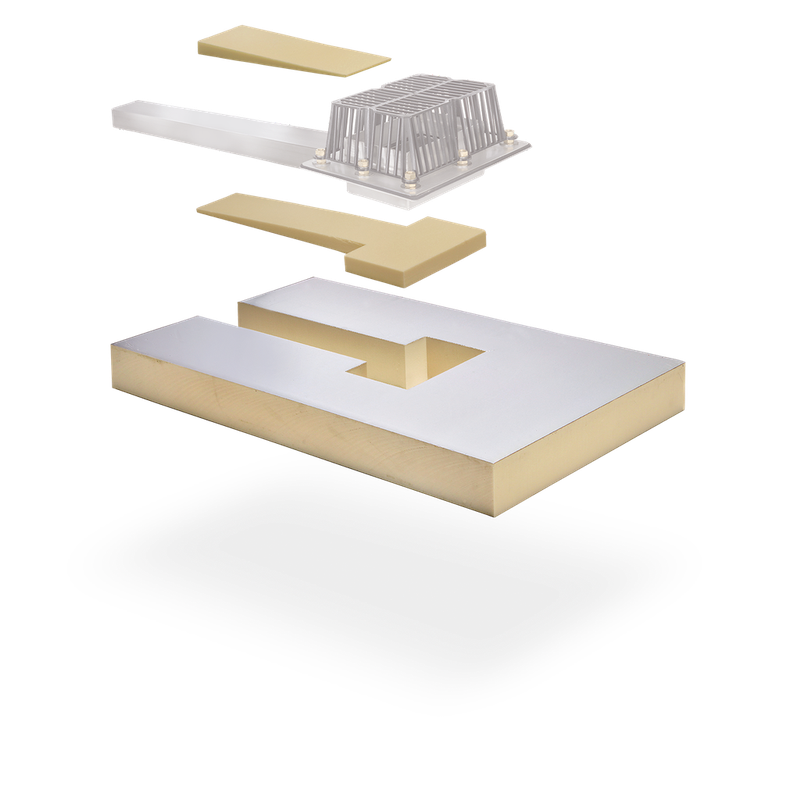

SitaTurbo insulating body made of polyurethane, WLG 030, fire class E (B2 normally flammable), application type DAA dh according to DIN 4108-10, suitable for used roof surfaces. For thermal insulation and installation aid for positioning the cladding penetration and the SitaTurbo vapour barrier plate, supply and install to professional standards.

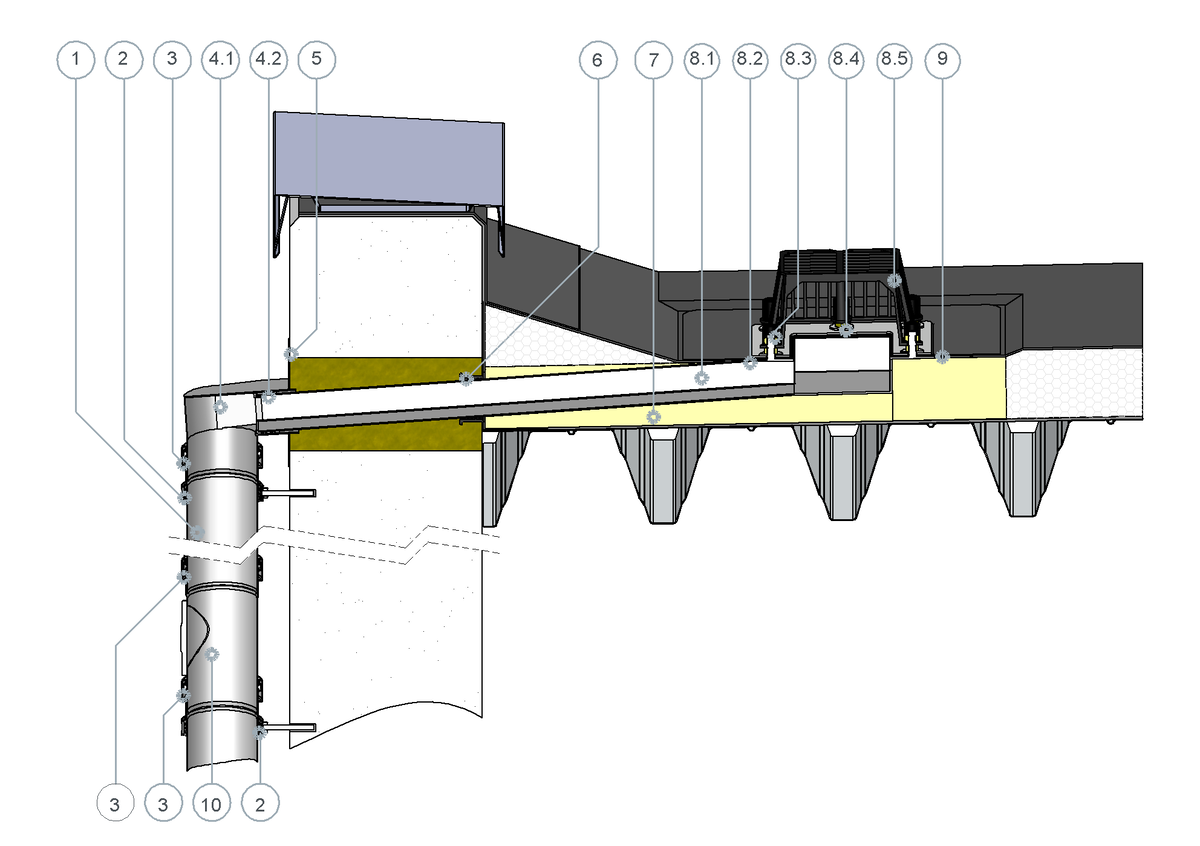

SitaTurbo for main drainage in a non-ventilated roof structure
