SitaVasant
Single
- Products
SitaVasant
Single
Attributes
- Not sensitive to the weather (UV/IR radiation, rain/snow, temperature, ozone, etc.)
- Impact and shock resistant
- Durable

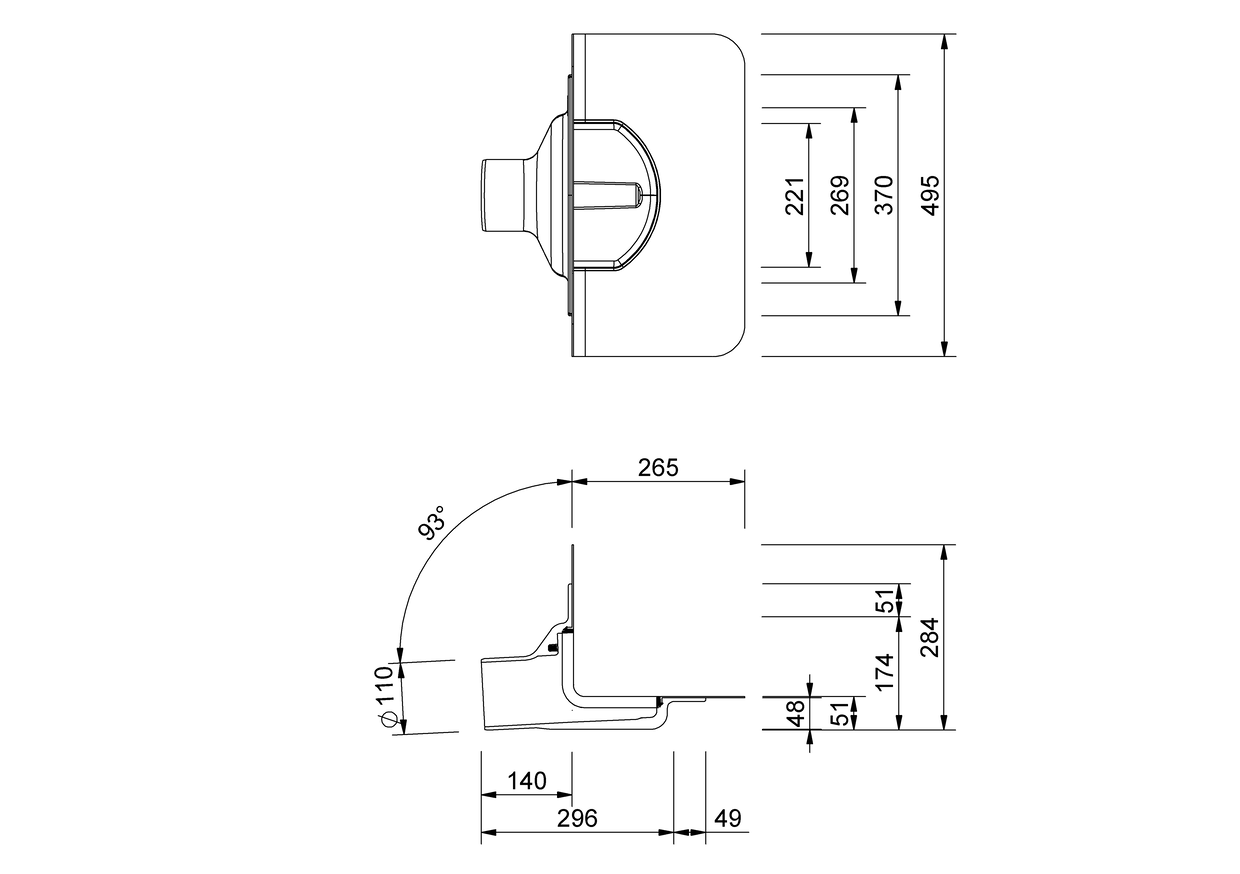

Technical drawing
| Size DN | External diameter OD (mm) | Opening/Core borehole (mm) |
|---|---|---|
| 100 | 110 | 170 |
Performance text
Streamflow
Discharge rate according to DIN EN 1253-2 in l/s
Hier finden Sie eine Übersicht über alle verfügbaren Abflussmengen.
MultiCAD und BIM-Daten
Downloads
Article selection
SitaVasant Single for direct installation in the parapet, made of polyurethane, with connection sleeve of choice, size DN 100, discharge rate 3.1 l/s at 35 mm retaining height at the downpipe, very low inlet pot of 48 mm, for conventional drainage, supply and install to professional standards.
|
Back-up Heigh (mm) | ||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Size DN | 5 | 10 | 15 | 20 | 25 | 30 | 35 | 40 | 45 | 50 | 55 | 60 | 65 | 70 | 75 | 80 | 85 | 90 | 95 | 100 |
| 100 | 0.5 | 0.9 | 1.6 | 2 | 2.3 | 2.7 | 3 | 3.4 | 3.6 | 4 | 4.5 | 4.8 | 5.3 | 5.6 | 6.1 | 6.8 | 7.2 | 7.7 | 8.1 | 8.4 |
