SitaKaskade lead-through
Fluid
Attributes
- Not sensitive to the weather (UV/IR radiation, rain/snow, temperature, ozone, etc.)
- Impact and shock resistant
- Durable

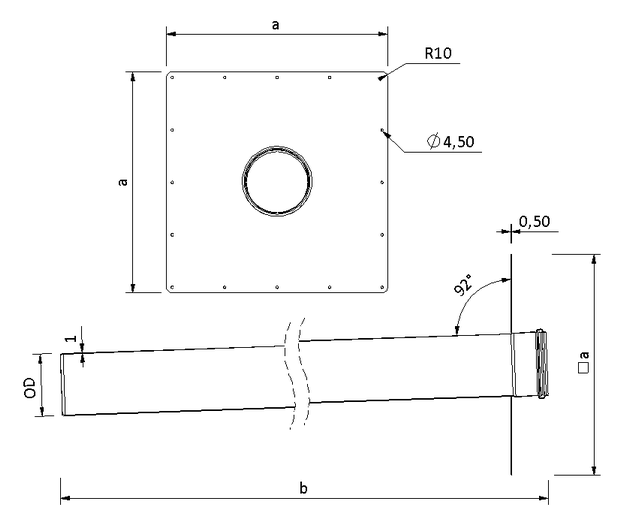

Technical drawing
| Size DN | External diameter OD (mm) | a (mm) | b (mm) |
|---|---|---|---|
| 100 | 110 | 390 | 1065 |
| 70 | 75 | 355 | 1057 |
Performance text
Installation Examples
MultiCAD und BIM-Daten
Downloads
PDF SitaKaskade_Durchfuehrung_Fluid_an_Fallleitung_im_nicht_beluefteten_Dachaufbau.pdf
PDF SitaKaskade_Durchfuehrung_Fluid_als_Speier_fuer_die_Notentwaesserung_im_Umkehrdach.pdf
PDF SitaTrendy_Schraubflansch_mit_SitaKaskade_Durchfuehrung_Fluid_Notentwaesserung_im_Umkehrdach.pdf
Article selection
SitaKaskade lead-through Fluid, made of rust-proof stainless steel, material number 1.4301, sizes DN 70 / DN 100, pipe length 1000 mm, to lead the pipe through the parapet with liquid applied waterproofing, with welded coupler to hold a pipe with OD 75 mm / 110 mm, metal sheet trimmed on site for liquid applied waterproofing, supply and install to professional standards.

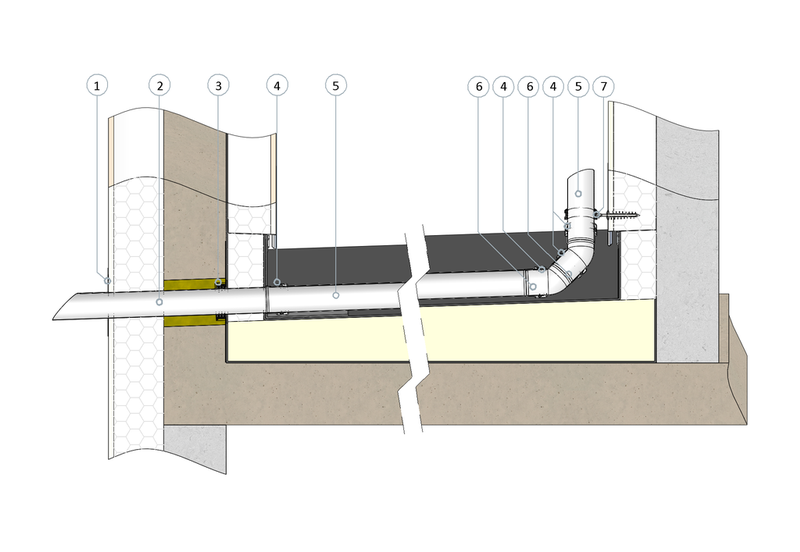

SitaKaskade lead-through Fluid as waterspout for emergency drainage in a non-ventilated roof structure
1 SitaAttika cladding cover plate
2 SitaKaskade lead-through Fluid
3 SitaMore vapour barrier plate flex
4 SitaPipe Edelstahl safety clamp
5 SitaPipe Edelstahl pipe
6 SitaPipe Edelstahl bend
7 SitaPipe Edelstahl pipe clamp
2 SitaKaskade lead-through Fluid
3 SitaMore vapour barrier plate flex
4 SitaPipe Edelstahl safety clamp
5 SitaPipe Edelstahl pipe
6 SitaPipe Edelstahl bend
7 SitaPipe Edelstahl pipe clamp
Non-ventilated roof structure to the general rules of engineering with:
- Waterproof membrane
- Thermal insulation
- Vapour barrier
- Substructure

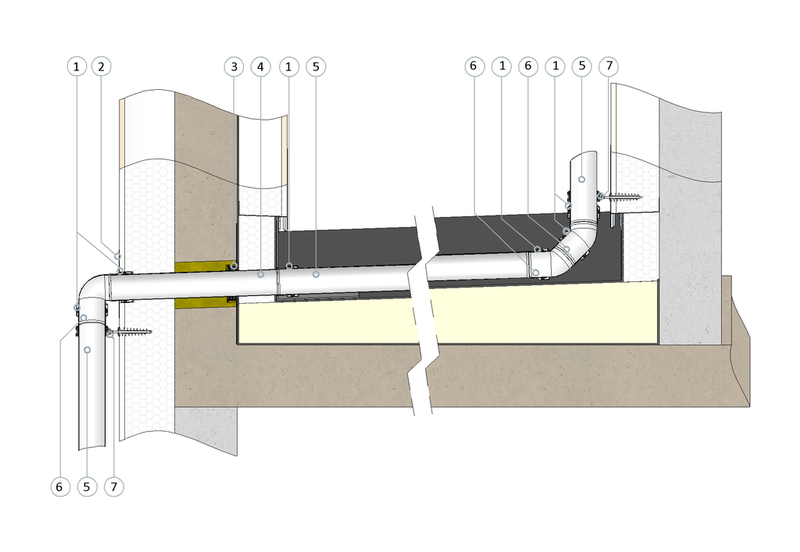

SitaKaskade lead-through Fluid with connection to the downpipe for main drainage in a non-ventilated roof structure
1 SitaPipe Edelstahl safety clamp
2 SitaAttika cladding cover plate
3 SitaMore vapour barrier plate flex
4 SitaKaskade lead-through Fluid
5 SitaPipe Edelstahl pipe
6 SitaPipe Edelstahl bend
7 SitaPipe Edelstahl pipe clamp
2 SitaAttika cladding cover plate
3 SitaMore vapour barrier plate flex
4 SitaKaskade lead-through Fluid
5 SitaPipe Edelstahl pipe
6 SitaPipe Edelstahl bend
7 SitaPipe Edelstahl pipe clamp
Non-ventilated roof structure to the general rules of engineering with:
- Waterproof membrane
- Thermal insulation
- Vapour barrier
- Substructure

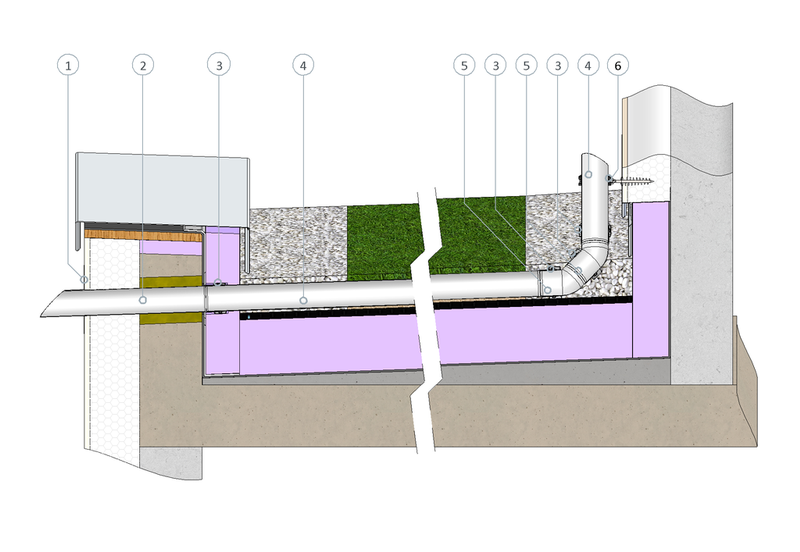

SitaKaskade lead-through Fluid as waterspout for emergency drainage in an inverted roof
1 SitaAttika cladding cover plate
2 SitaKaskade lead-through Fluid
3 SitaPipe Edelstahl safety clamp
4 SitaPipe Edelstahl pipe
5 SitaPipe Edelstahl bend
6 SitaPipe pipe clamp
2 SitaKaskade lead-through Fluid
3 SitaPipe Edelstahl safety clamp
4 SitaPipe Edelstahl pipe
5 SitaPipe Edelstahl bend
6 SitaPipe pipe clamp
Inverted roof structure to the general rules of engineering with:
- Extensive roof greenery with vegetation layer according to system supplier
- XPS thermal insulation
- Waterproof membrane
- Sloping screed
- Substructure
SitaTrendy screw-on flange angled with SitaKaskade lead-through for emergency drainage in an inverted roof
1 SitaAttika cladding cover plate
2 SitaKaskade lead-through Fluid
3 SitaMore sealing sleeve for WDVS
4 SitaPipe Edelstahl safety clamp
5 SitaPipe Edelstahl pipe
SitaMore retaining element consisting of:
6.1 Height-adjustable rubber-metal buffers
6.2 Closed cover
6.3 Sealing ring
6.4 Base body
SitaTrendy screw-on flange angled consisting of:
7.1 Sealing sleeve and screw-on flange
7.2 Base body
2 SitaKaskade lead-through Fluid
3 SitaMore sealing sleeve for WDVS
4 SitaPipe Edelstahl safety clamp
5 SitaPipe Edelstahl pipe
SitaMore retaining element consisting of:
6.1 Height-adjustable rubber-metal buffers
6.2 Closed cover
6.3 Sealing ring
6.4 Base body
SitaTrendy screw-on flange angled consisting of:
7.1 Sealing sleeve and screw-on flange
7.2 Base body
Inverted roof structure to the general rules of engineering with:
- Roof greenery according to system suppler
- Drainage layer
- Filter fabric
- XPS thermal insulation
- Sealing
- Substructure
In order for the external content to be
displayed at this location, you must accept
the cookies of the category
"Preferences".
You can adjust the cookie settings here.
You can adjust the cookie settings here.
Installation Examples
PDF SitaKaskade_Durchfuehrung_Fluid_als_Speier_fuer_die_Notentwaesserung_im_nicht_beluefteten_Dachaufbau.pdfPDF SitaKaskade_Durchfuehrung_Fluid_an_Fallleitung_im_nicht_beluefteten_Dachaufbau.pdf
PDF SitaKaskade_Durchfuehrung_Fluid_als_Speier_fuer_die_Notentwaesserung_im_Umkehrdach.pdf
PDF SitaTrendy_Schraubflansch_mit_SitaKaskade_Durchfuehrung_Fluid_Notentwaesserung_im_Umkehrdach.pdf
| SitaKaskade lead-through | Article no. | ||
|---|---|---|---|
Fluid | |||
| DN 70 | 181599 | Show product | |
| DN 100 | 181699 | Show product |
+
