SitaDrain box drain

Drainage

  1. Products
  2. SitaDrain box drain
  3. Stahl

  4. 241545

Attributes

Article number
241545
Grate design
With mesh cover
Height
40 mm
Width
150 mm
Length
1000 mm
Material
Galvanised steel
Load rating class
K 3 - max. 300 kg / 3.0 kN
Material class
Euroclass A1 /A1 non-flammable

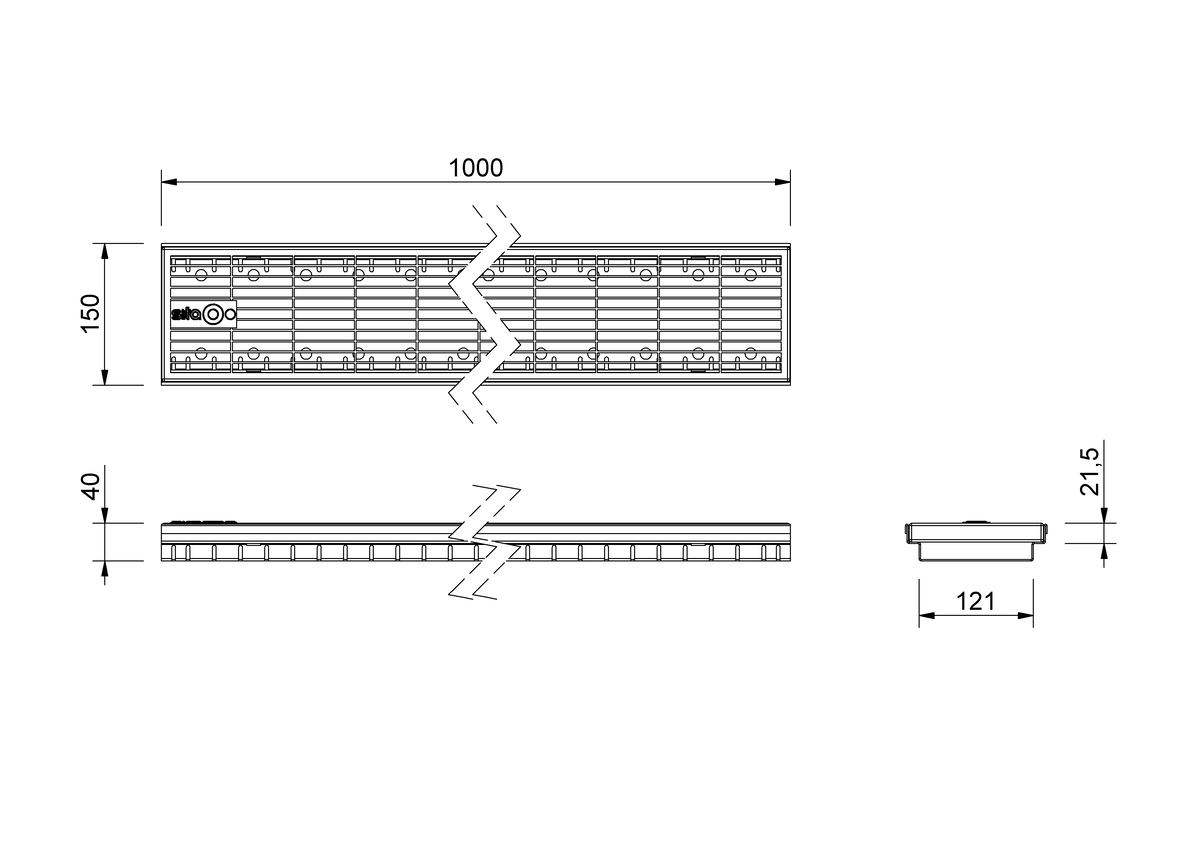

Technical drawing

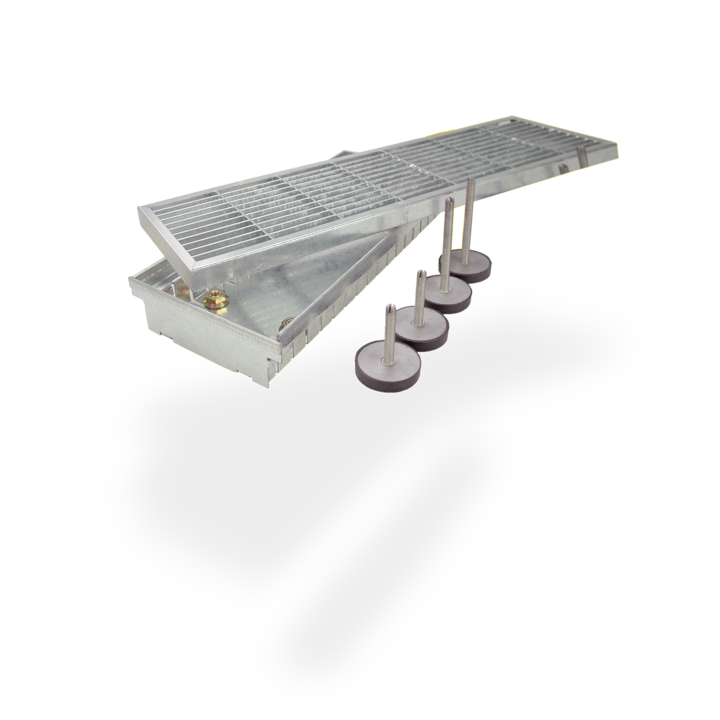

These Sita drainage variants offer many visual, construction and laying advantages. For example, SitaDrain box drains can be laid directly on a gravel bed. The box drain components are interconnected for "endless" laying. Infinite height adjustment is possible using the height adjustment set.
Invitations to tender Installation Examples Downloads
+
Supplies
SitaDrain® box drain
Head piece
SitaDrain® box drain
Height adjustment set 50 - 90 mm
SitaDrain® box drain
Height adjustment set 70 - 110 mm
SitaDrain® box drain
Height adjustment set 110 - 150 mm
SitaDrain®
Hinged feet 80 - 120 mm
SitaDrain®
Junction channel
